Huawei NetEngine 8000 F User Manual

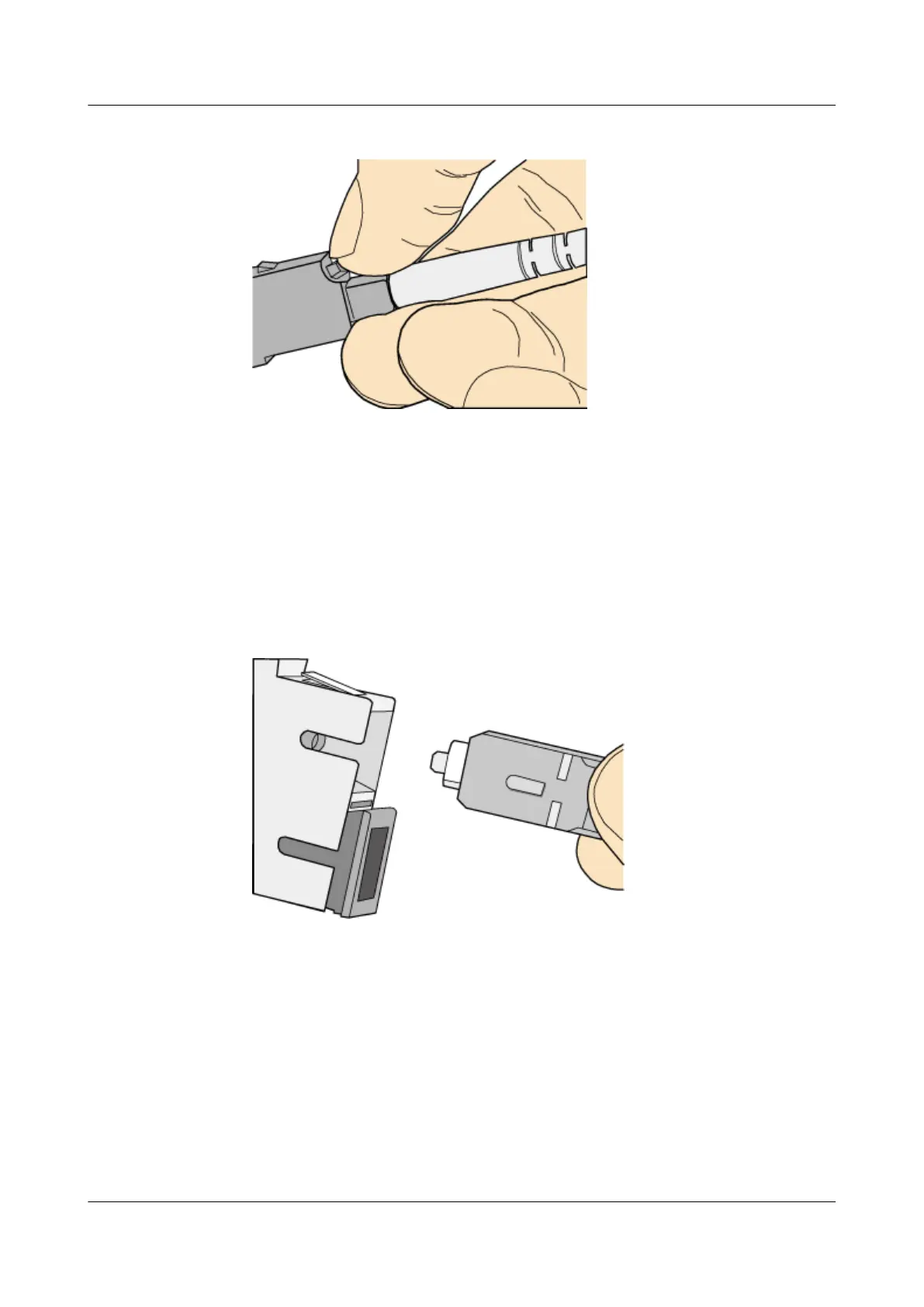

Figure 4-358 Disassembling an LC ber connector
Installing an SC Fiber Connector
Procedure
1. Remove the dustproof cap of the SC
ber connector and store it for future
use.
2. Align the core pin of the male connector with that of the female connector, as
shown in Figure 4-359.
Figure 4-359 Aligning the male connector with the female connector
3. Feed the ber connector into the female connector, with your ngers holding
the shell of the
ber connector (not the pigtail). When you hear a click, the
ber connector is secured by the clips (internal parts, not illustrated in the
gure). Pull the ber connector gently. If the connector does not loosen, the
installation is complete. As shown in Figure 4-360.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 692
