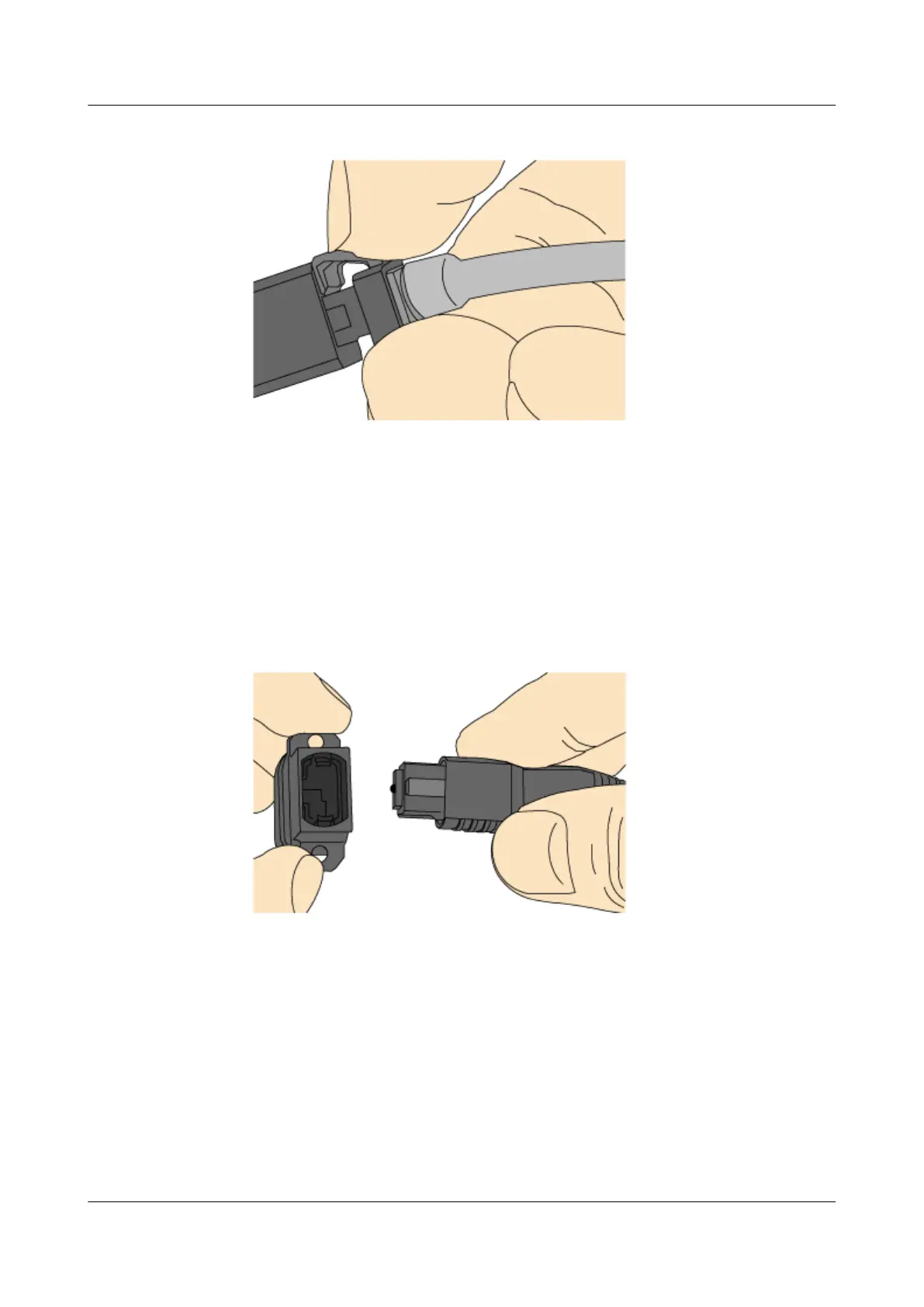

Figure 4-365 Disassembling a MTRJ ber connector
Installing an MPO Connector
Procedure
1. Remove the dustproof cap of the MPO
ber connector and store it for future
use.
2. Align the core pin of the male connector with that of the female connector, as
shown in Figure 4-366.
Figure 4-366 Aligning the male connector with the female connector
3. Hold the shell labeled "PUSH" and feed the male connector into the female
connector until you hear a clicking sound. The male and female connectors
are securely installed, as shown in Figure 4-367.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 695
