The cut dotted line helps to fold the label when axed to the cable, and its size is
1 mm x 2 mm (0.04 in. x 0.08 in.).
The word "TO:" (upside down in the gure) at the lower right corner of the label
is used to identify the opposite end of the cable on which the label is axed.
Power Cable Label
The label for power cables should be attached to the identication plate on the
cable ties that are attached to the cable. The
identication plate has an embossed
area 0.2 mm x 0.6 mm (0.008 in. x 0.02 in.) around (symmetric on both sides), and
the area in the middle is for axing the label, as shown in Figure 4-377.

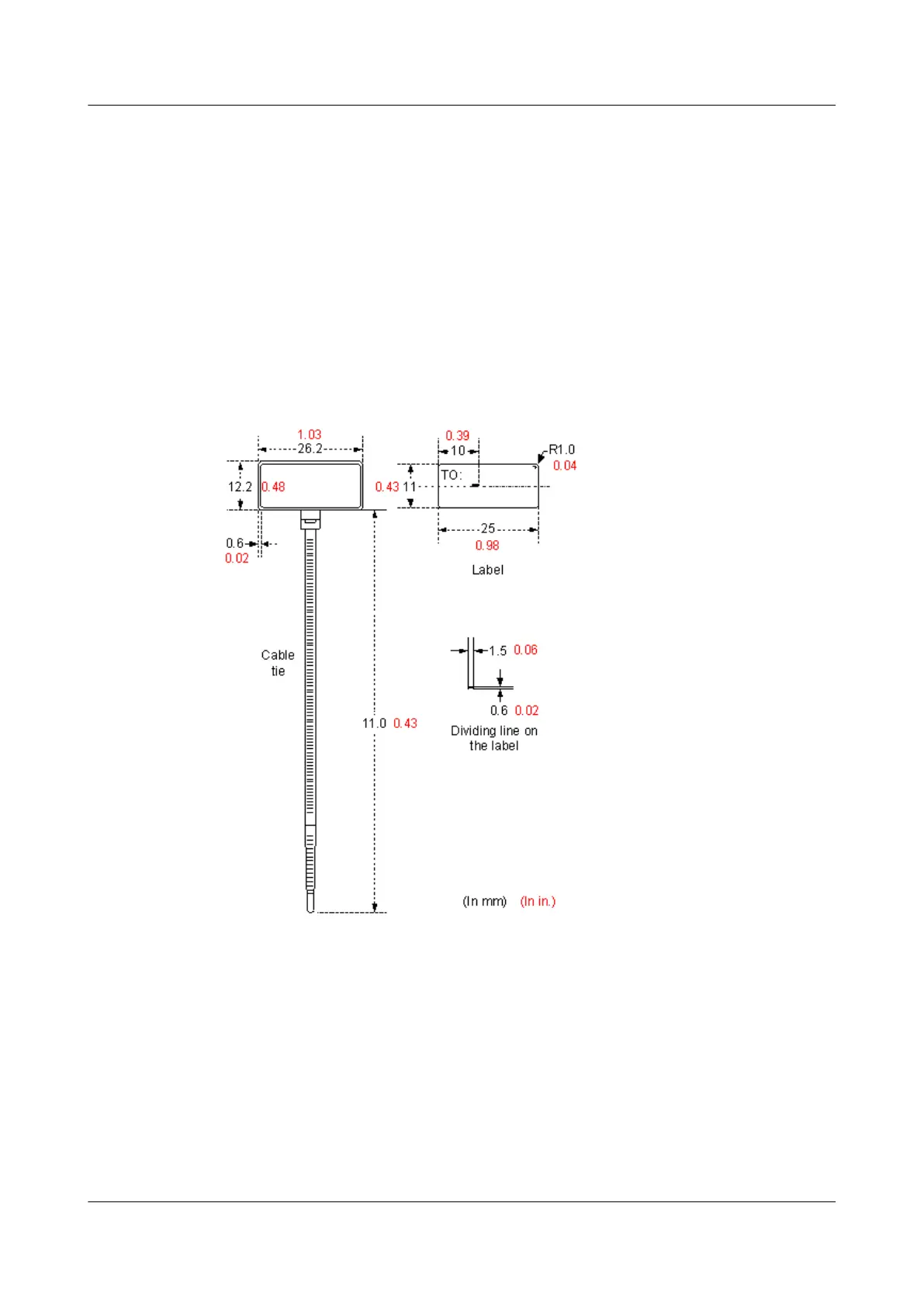

Figure 4-377 Power Cable Label
Label Printing
The contents can be printed or written on the labels. Printing is recommended for
the sake of high eciency and eye-pleasant layout.
Template for Printing
You can obtain a template from the Huawei local oce to print labels.
The template is made in Microsoft Word. Follow these instructions to use the
template:
