Contents of Engineering Labels
Contents of Labels for Power Cables
Labels for power cables are axed on only one side of the identication plates.
On the labels, there is information (the part after the word "TO:") about the
location of the device on the other end of the cable, like the location of control
cabinet, distribution box or power socket.
Contents of Labels for Signal Cables
The two sides of the label axed on the signal cable carry information about the
location of the ports connected to both ends of the cable. Figure 4-383 shows the
information on both sides of the labels
axed to the signal cables.
● Area 1 contains the location information of the local end of the cable.
● Area 2 (with the word "TO:") contains the location information of the
opposite end of the cable.
● Area 3 has been folded up inside the label.

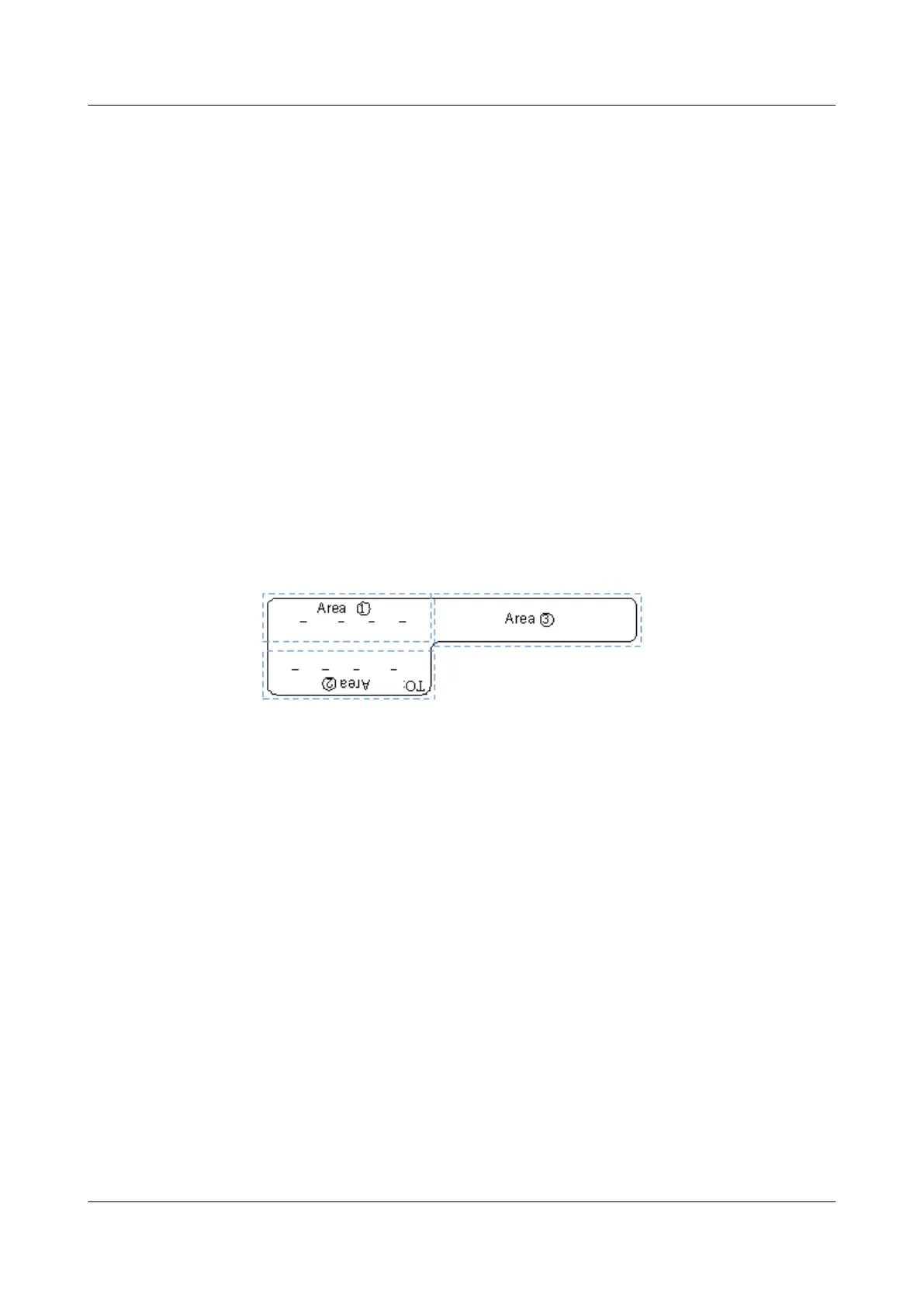

Figure 4-383 Printed parts on the label for signal cables
Seen from the cabling end of the equipment, the text part of the label is on the
right side of the cable. The side with "TO:" that is facing outside carries the
location information of the opposite end; and the other side carries the location
information of the local end.
In other words, the information in Area 1 at one end is the same as the
information in Area 2 at the other end of the cable.
Precautions for Using Engineering Labels
When using labels, pay attention to the following points:
● When printing, writing, or attaching labels, keep the labels clean.
● Since the label paper is made of moistureproof material, ink-jet printers and
ink pens cannot be used to print and write labels.
● Labels should be attached neatly. New-type labels are L-shaped. If they are
pasted at incorrect locations or in the incorrect direction, the appearance of
the device is
aected.
● Power cable ties should be attached in the same positions on power cables,
with identication plates on the same side.
● The positions of "up", "down", "left" or "right" are all based on the viewpoint
of the engineering person who is working on the label.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 709
