II. Network diagram
Console port
Network
Switch
In
port
ternet
t
Switch
In
ternet
Console port
Network
Switch
In
port
ternet
t
Switch
In
ternet

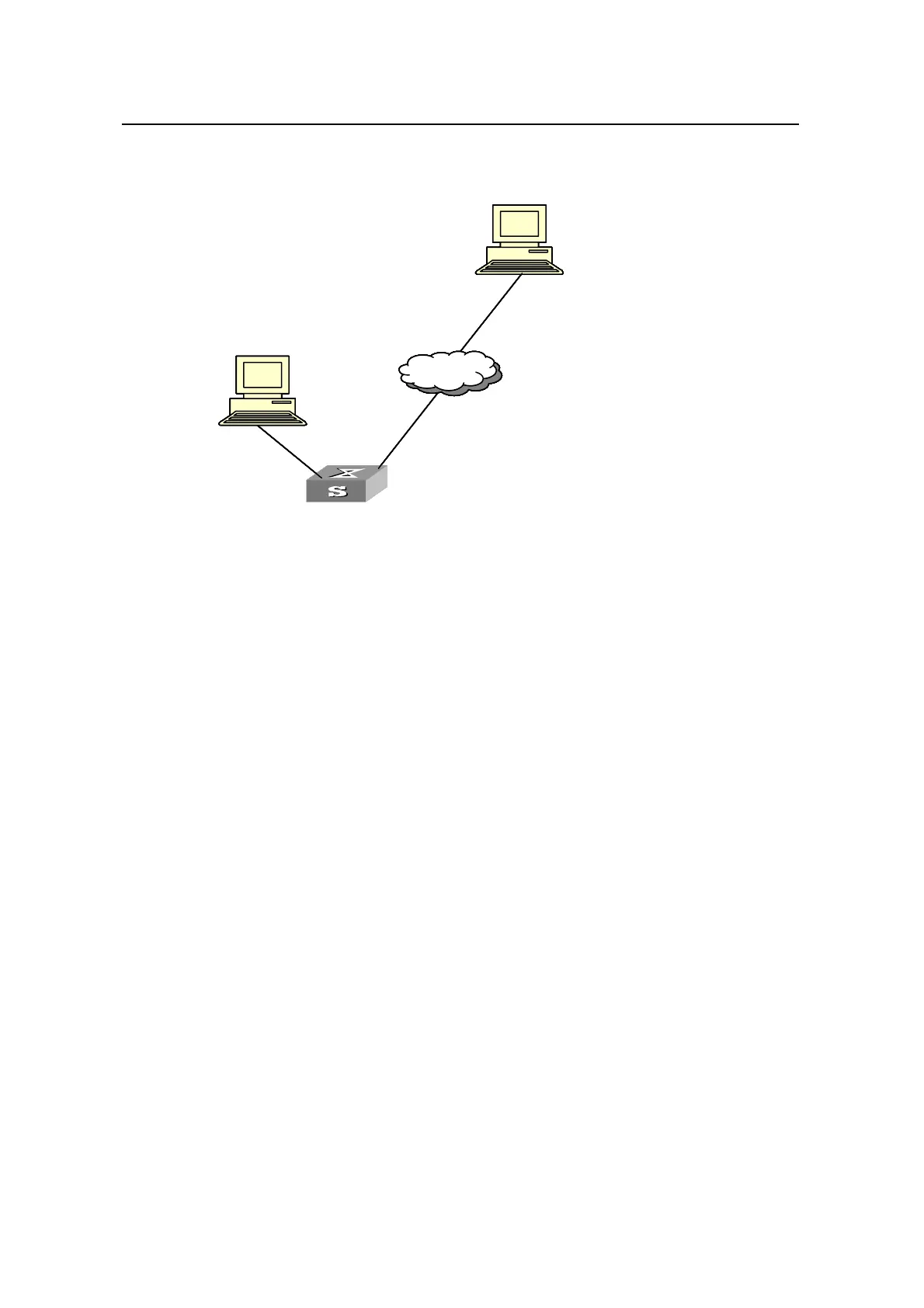

Figure 1-1 Network diagram for MAC address table configuration
III. Configuration procedure
# Enter system view.
<Quidway> system-view
System View: return to User View with Ctrl+Z.
# Add a static MAC address entry.
[Quidway] mac-address static 00e0-fc35-dc71 interface ethernet1/0/2 vlan 1
# Set the aging time to 500 seconds.
[Quidway] mac-address timer aging 500
# Display information about the MAC address table.
[Quidway] display mac-address interface ethernet1/0/2
MAC ADDR VLAN ID STATE PORT INDEX AGING TIME
00-e0-fc-35-dc-71 1 Static Ethernet1/0/2 NOAGED
00-e0-fc-17-a7-d6 1 Learned Ethernet1/0/2 AGING
00-e0-fc-5e-b1-fb 1 Learned Ethernet1/0/2 AGING
00-e0-fc-55-f1-16 1 Learned Ethernet1/0/2 AGING
--- 4 mac address(es) found on port Ethernet1/0/2 ---
