Operation Manual – Stack&Cluster
Quidway S3100 Series Ethernet Switches Chapter 2
Cluste
Huawei Technologies Proprietary
2-12
2.6 HGMP V2 Configuration Example
I. Network requirements
Three switches form a cluster, in which:
z The management device is an S3100 series switch.
z The rest are member devices.
Other detailed information about the cluster is as follows.
z The two member devices are connected to Ethernet1/0/2 and Ethernet1/0/3 ports
of the management device.
z The management device is connected to the external network through its
Ethernet1/0/1 port.
z Ethernet1/0/1 port of the management device belongs to VLAN2, whose interface
IP address is 163.172.55.1.
z All the devices in the cluster use the same FTP server and TFTP server.
z The FTP server and TFTP server share one IP address: 63.172.55.1.
z The SNMP site and log host share one IP address: 69.172.55.4.

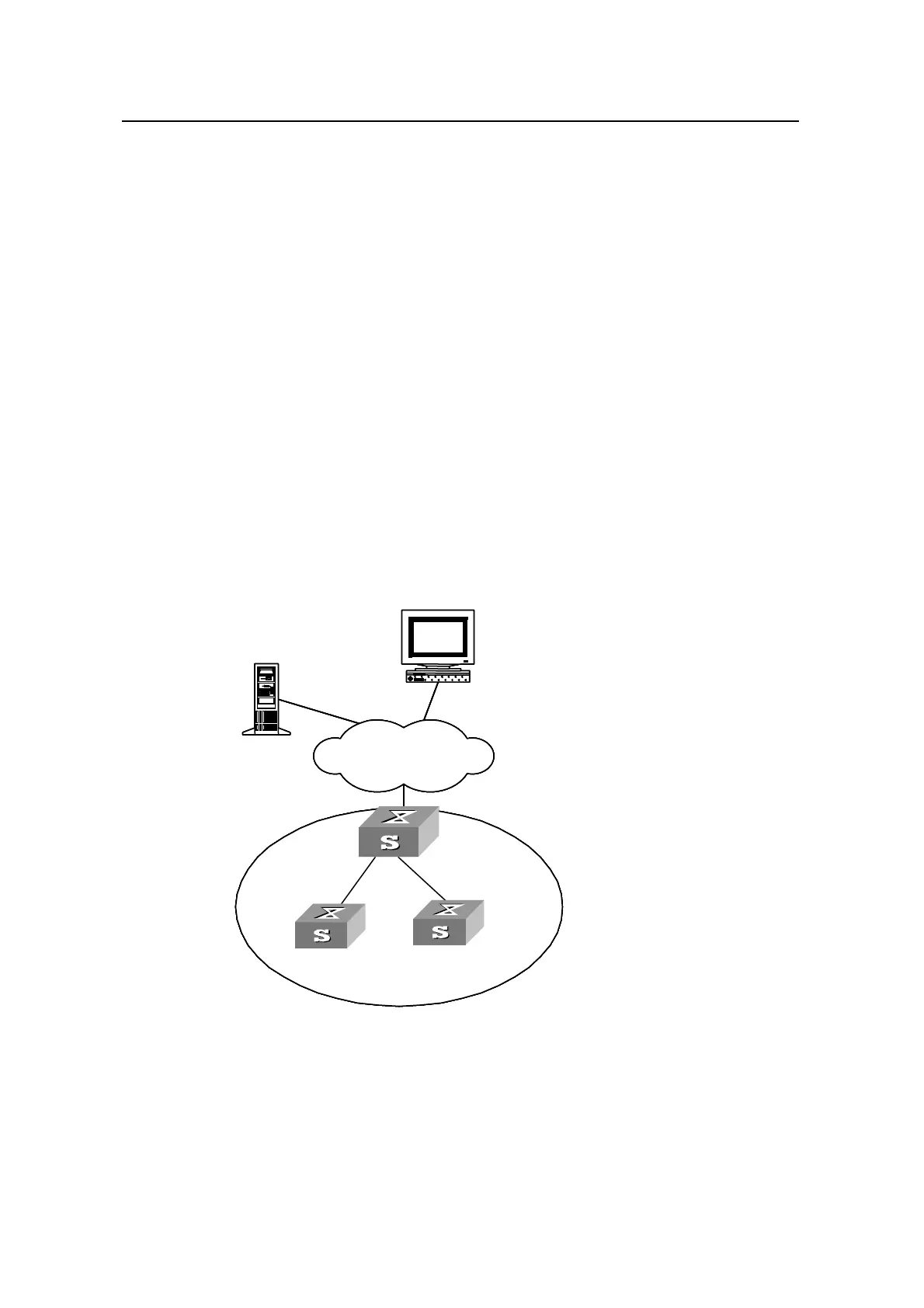

II. Network diagram
Management
device
Member device MAC address
00e0.fc01.0011
SNMP
Cluster
host/log host
Network
FTP server/TFTP server
E1/0/ 3
E1/0/2
E1/1 E1/1
E1/0/1
6
63.172.55.1
VL
Member dev ice
00e0.fc01.
9.172.55.4
AN2 interface IP address
163.172.55.1
MAC address
0012
Management
device
Member device MAC address
00e0.fc01.0011
Cluster
Network
FTP server/TFTP server
E1/0/ 3
E1/0/2
E1/1 E1/1
E1/0/1
6
63.172.55.1
VL
Member dev ice
00e0.fc01.
9.172.55.4
AN2 interface IP address
163.172.55.1
MAC address
0012
Management
device
Member device MAC address
00e0.fc01.0011
SNMP
Cluster
host/log host
Network
FTP server/TFTP server
E1/0/ 3
E1/0/2
E1/1 E1/1
E1/0/1
6
63.172.55.1
VL
Member dev ice
00e0.fc01.
9.172.55.4
AN2 interface IP address
163.172.55.1
MAC address
0012
Management
device
Member device MAC address
00e0.fc01.0011
Cluster
Network
FTP server/TFTP server
E1/0/ 3
E1/0/2
E1/1 E1/1
E1/0/1
6
63.172.55.1
VL
Member dev ice
00e0.fc01.
9.172.55.4
AN2 interface IP address
163.172.55.1
MAC address
0012
n
Figure 2-3 Network diagram for HGMP cluster configuratio
III. Configuration procedure
1) Configure the management device
# Enable NDP globally and for Ethernet1/0/2 and Ethernet1/0/3 ports.
