Huawei Quidway S3100 Series User Manual

Operation Manual – Login
Quidway S3100 Series Ethernet Switches Chapter 2 Logging in through the Console Port
Huawei Technologies Proprietary
2-16
z The timeout time of the AUX user interface is 6 minutes.
II. Network diagram
User PC running Telnet
Ethernet1/0/1
Ethernet
User PC running Telnet
Ethernet1/0/1
Ethernet

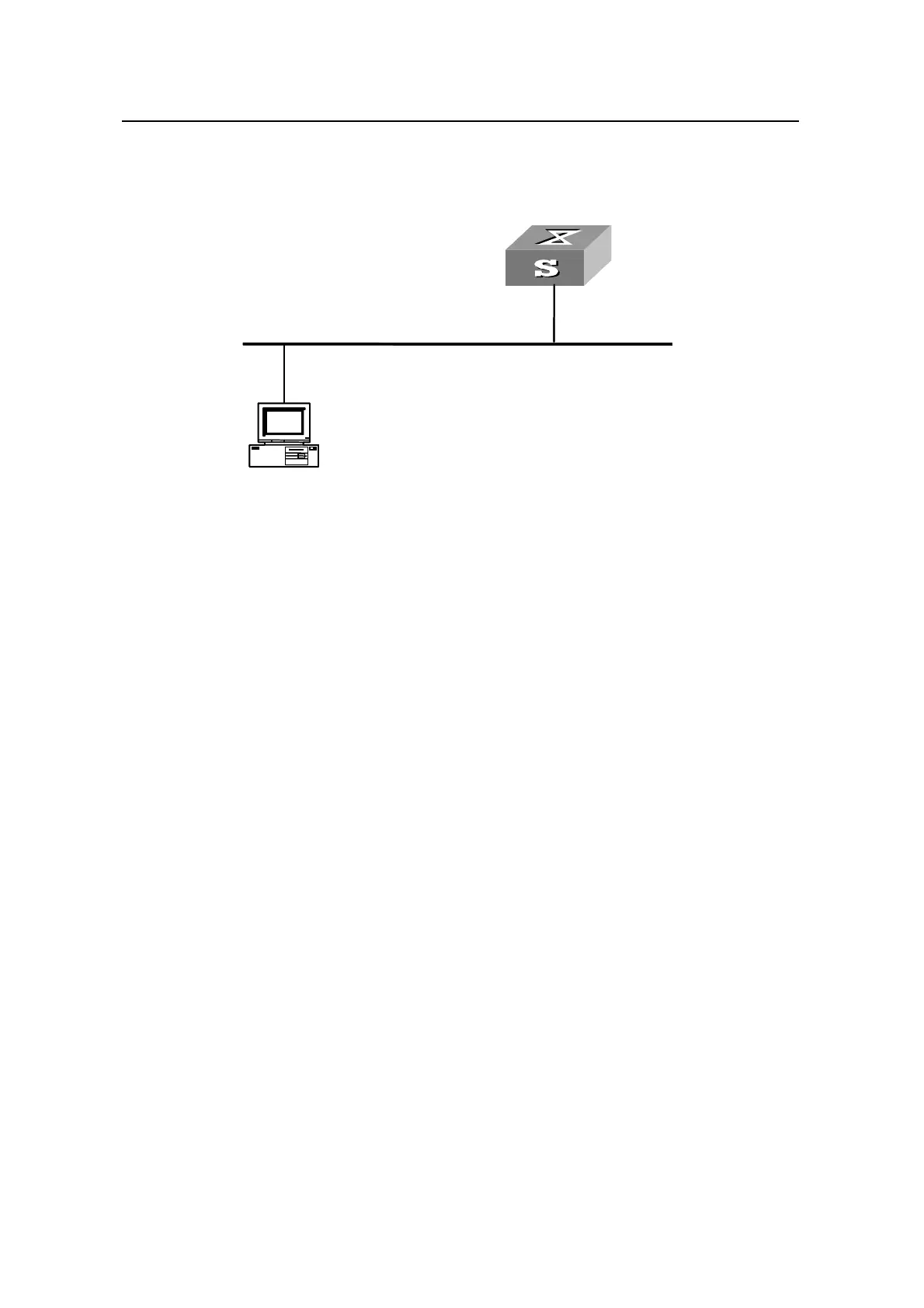

Figure 2-7 Network diagram for AUX user interface configuration (with the
authentication mode b
eing scheme)
III. Configuration procedure
# Enter system view.
<Quidway> system-view
# Create a local user named guest and enter local user view.
[Quidway] local-user guest
# Set the authentication password to 123456 (in plain text).
[Quidway-luser-guest] password simple 123456
# Set the service type to Terminal.
[Quidway-luser-guest] service-type terminal level 2
[Quidway-luser-guest] quit
# Enter AUX user interface view.
[Quidway] user-interface aux 0
# Configure to authenticate users logging in through the Console port in the scheme
mode.
[Quidway-ui-aux0] authentication-mode scheme
# Specify commands of level 2 are available to users logging into the AUX user
interface.
[Quidway-ui-aux0] user privilege level 2
# Set the baud rate of the Console port to 19,200 bps.
[Quidway-ui-aux0] speed 19200
