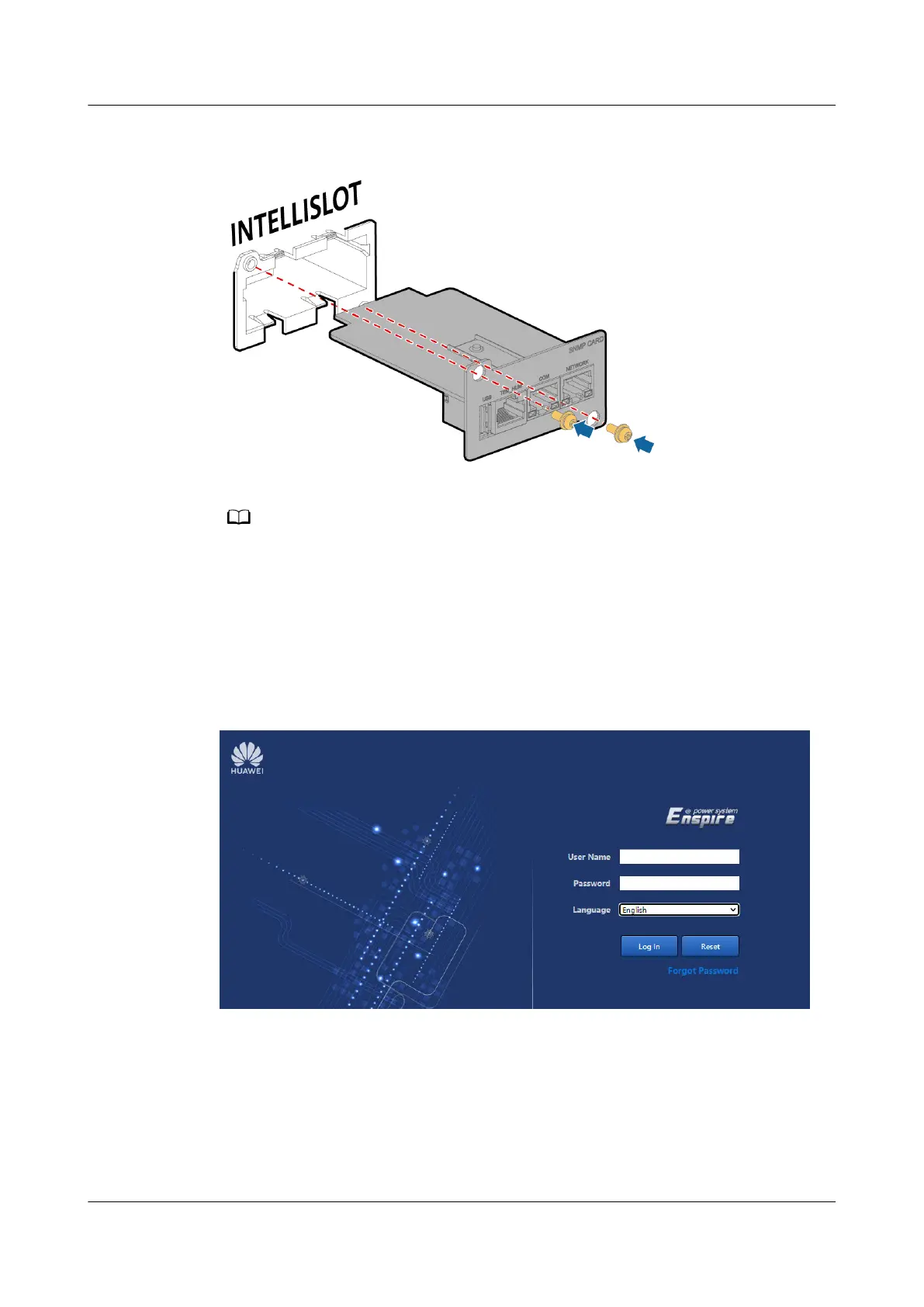

Figure 5-57 Inserting the SNMP card into the optional card slot
M3 screws are used to install the optional card. The recommended torque is 0.5 N·m.
Step 3 Connect one end of the network cable to the NETWORK port on the SNMP card
and the other end to the network port on the customer's device.
Step 4 Enter https://
SNMP card IP address
in the address box of the browser, select a
language, and enter the correct User Name and Password. The default user name
is admin, and the preset password is Changeme.
Figure 5-58 Logging in to the WebUI
Step 5 Click Login. The home page is displayed.
Step 6 On the WebUI, choose System Settings > Comm. Settings and set the IP address
of the DNS server.
Step 7 Set and test domain name parameters.
1. Choose System Settings > NMS Application > BIN > Communication
Parameters on the WebUI. Set parameters as follows:
UPS2000-H-(6 kVA-10 kVA)
User Manual 5 Installation and Cable Connection
Issue 03 (2023-08-20) Copyright © Huawei Digital Power Technologies Co., Ltd. 90
