Huawei WIFI AX2 User Manual

3. Select an Internet access mode according to your current network
environment. Touch √ in the upper right corner of the screen to conrm.
Method 2: Using the web-based management page
Step 1 Connect your computer/phone to the router's Wi-Fi, or connect the computer to
the router's LAN port using an Ethernet cable. In the browser address bar, enter
the default IP address and log in to the router's web-based management
page(check the nameplate at the bottom of the router for the default IP address).
NO TE
● For routers that feature self-adaptive ports, you do not need to distinguish between
WAN and LAN ports.
● If you are connecting your phone to the router's Wi-Fi network, switch your phone's
webpage to the PC-based UI before performing the following operations.

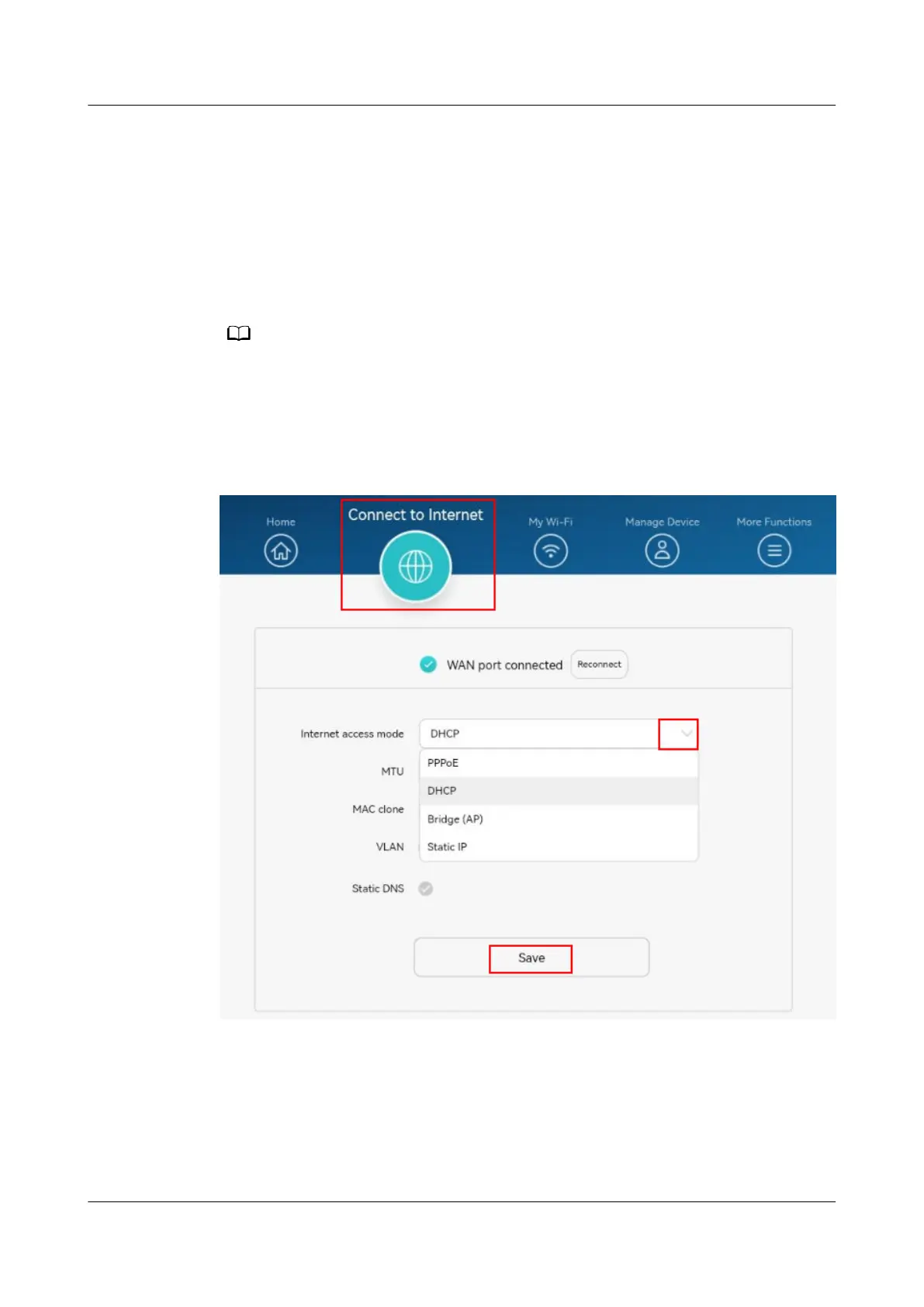

Step 2 Enter the Connect to Internet page. In the drop-down option menu under
Internet access mode, select what Internet access mode you want. Click Save.
HUAWEI_WIFI_AX2
HUAWEI_WIFI_AX2
32 How do I set my HUAWEI router's Internet access
mode
Issue 01 (2022-02-18) Copyright © Huawei Technologies Co., Ltd. 124

Huawei WIFI AX2 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1201 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Antennas quantity	4
Internal memory	128 MB
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Output current	1 A
Power source type	AC, DC
Power consumption (typical)	12 W
Security algorithms	SSID, WPA3
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product type	Tabletop router
Product color	White
Ethernet LAN (RJ-45) ports	3
Mobile network generation	-

Weight and Dimensions

Depth	163.5 mm
Width	257.6 mm
Height	29 mm
Weight	216 g
