Huawei WIFI AX2 User Manual

Method 2: Through the web-based management page
Step 1 Connect your computer/phone to the router's Wi-Fi（check the nameplate at the
bottom of the router for the default Wi-Fi name, no password) , or connect the
computer to the router's LAN port using an Ethernet cable. Open your Internet
browser. Enter the default IP address in your browser address bar and log into the
web-based management page(check the nameplate at the bottom of the router
for the default IP address).
NO TE
● For routers that feature self-adaptive ports, you do not need to distinguish between
WAN and LAN ports.
● If you are connecting your phone to the router's Wi-Fi network, switch your phone's
webpage to the PC-based UI before performing the following operations.

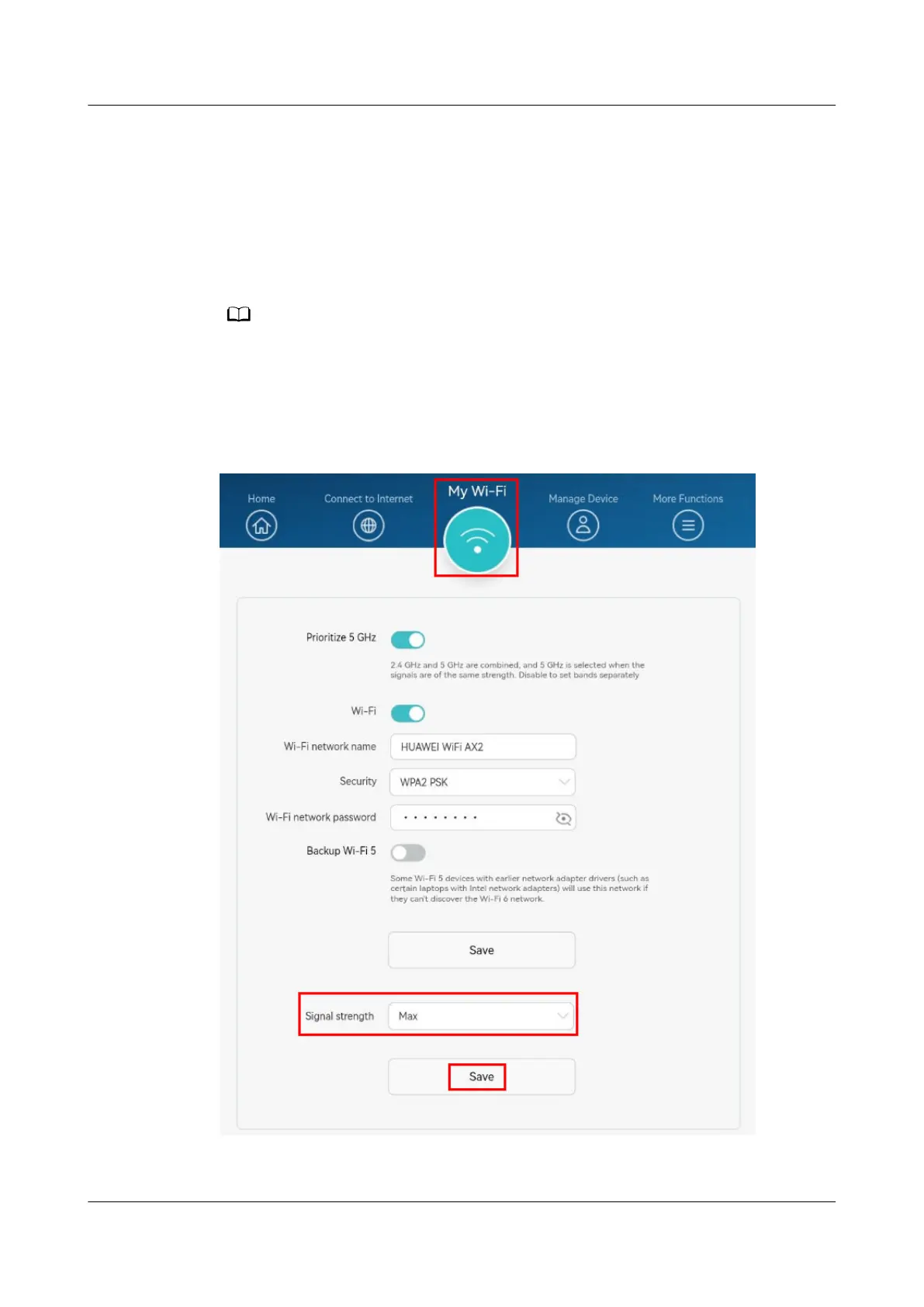

Step 2 Click My Wi-Fi. In Signal strength, select Max, and click Save.
----End
HUAWEI_WIFI_AX2
HUAWEI_WIFI_AX2
13 How can I improve my HUAWEI router's Wi-Fi
signal
Issue 01 (2022-02-18) Copyright © Huawei Technologies Co., Ltd. 48

Huawei WIFI AX2 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1201 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Antennas quantity	4
Internal memory	128 MB
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Output current	1 A
Power source type	AC, DC
Power consumption (typical)	12 W
Security algorithms	SSID, WPA3
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product type	Tabletop router
Product color	White
Ethernet LAN (RJ-45) ports	3
Mobile network generation	-

Weight and Dimensions

Depth	163.5 mm
Width	257.6 mm
Height	29 mm
Weight	216 g
