Huawei WIFI AX2 User Manual

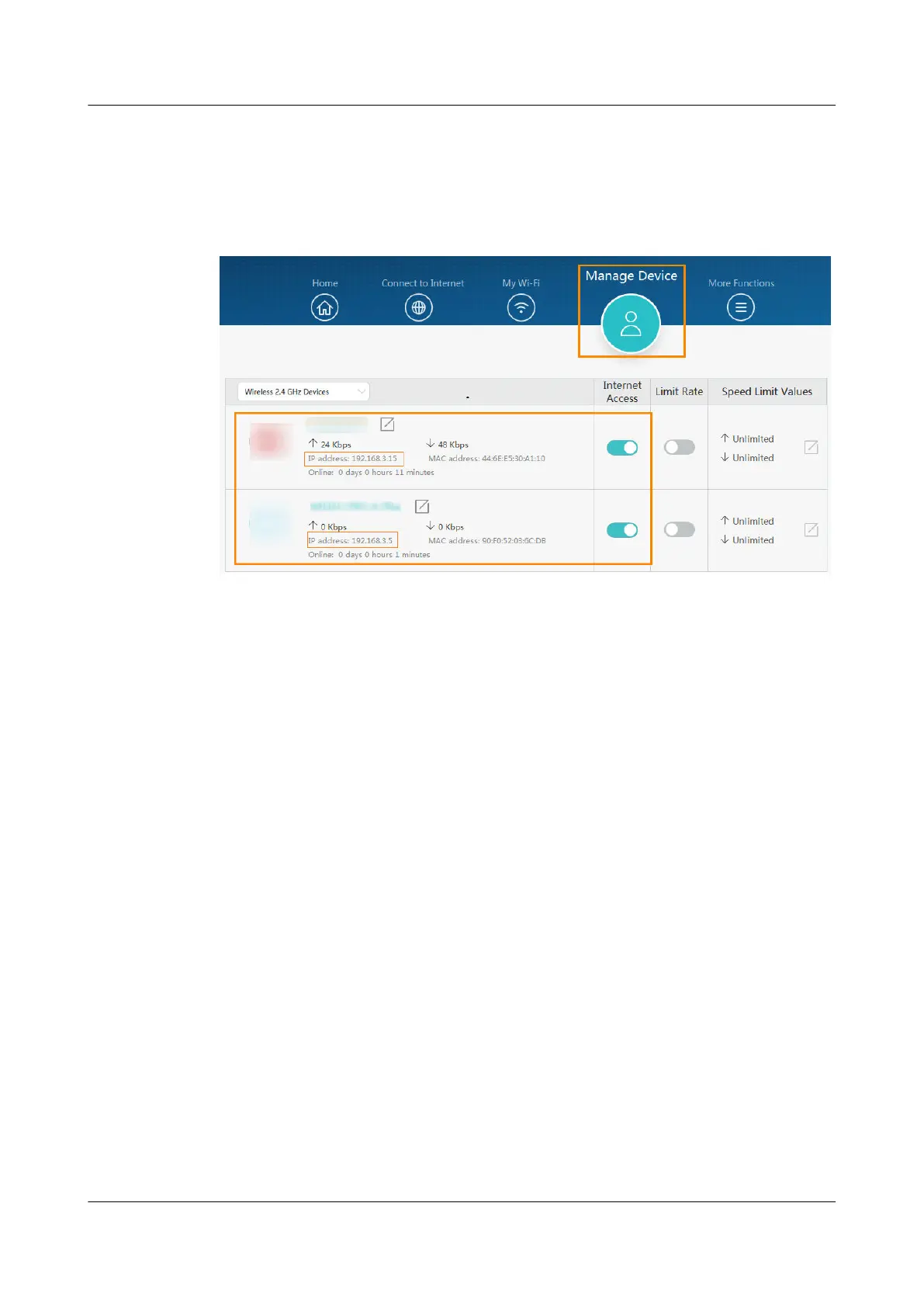

Step 3 Click Manage Device to view the WAN IP address of your secondary router (as
shown in the following gure: 192.168.3.15).
Step 4 To access the web-based management page of your secondary router, click on the
IP link of the secondary router in the page (or enter the WAN IP address of the
secondary router in the browser address bar, for example, 192.168.3.15).
----End
HUAWEI_WIFI_AX2
HUAWEI_WIFI_AX2
33 How do I access the web-based management
page of my secondary router in HarmonyOS Mesh+
mode?
Issue 01 (2022-02-18) Copyright © Huawei Technologies Co., Ltd. 127

Huawei WIFI AX2 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1201 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Antennas quantity	4
Internal memory	128 MB
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Output current	1 A
Power source type	AC, DC
Power consumption (typical)	12 W
Security algorithms	SSID, WPA3
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product type	Tabletop router
Product color	White
Ethernet LAN (RJ-45) ports	3
Mobile network generation	-

Weight and Dimensions

Depth	163.5 mm
Width	257.6 mm
Height	29 mm
Weight	216 g
