Huawei WIFI AX2 User Manual

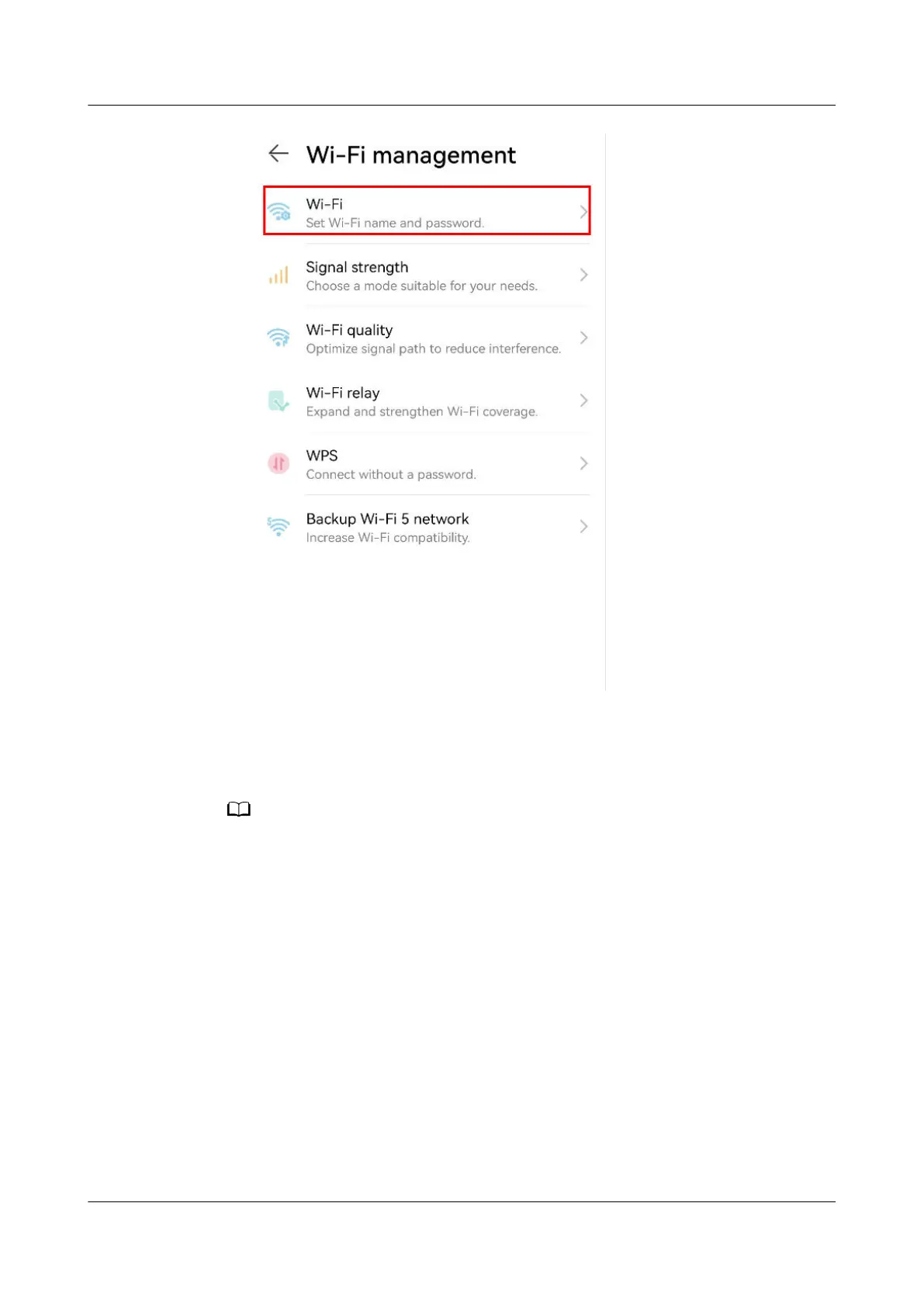

3. Disable Prioritize 5 GHz/Tri-band auto-selection., then touch the √ icon in
the upper right corner of the screen.
Method 2: Using the web-based management page
NO TE
Ensure that you have already completed the Internet access wizard for your router.
1. Connect your computer/phone to the router's Wi-Fi , or connect the computer
to the router's LAN port using an Ethernet cable. In your browser address bar,
enter the default IP address and log in to the web-based management
page(check the nameplate at the bottom of the router for the default IP
address).
2. Click My Wi-Fi. Click Prioritize 5 GHz/Tri-band auto-switch and then click
Save to disable Prioritize 5 GHz/Tri-band auto-switch.
HUAWEI_WIFI_AX2
HUAWEI_WIFI_AX2
9 How do I disable Prioritize 5 GHz/Tri-band auto-
selection and manually connect to my HUAWEI
router either 2.4 GHz 、 5 GHz Wi-Fi or 2.4 GHz \ 5
GHz_1\ 5 GHz_2 Wi-Fi
Issue 01 (2022-02-18) Copyright © Huawei Technologies Co., Ltd. 34

Huawei WIFI AX2 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1201 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Antennas quantity	4
Internal memory	128 MB
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Output current	1 A
Power source type	AC, DC
Power consumption (typical)	12 W
Security algorithms	SSID, WPA3
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product type	Tabletop router
Product color	White
Ethernet LAN (RJ-45) ports	3
Mobile network generation	-

Weight and Dimensions

Depth	163.5 mm
Width	257.6 mm
Height	29 mm
Weight	216 g
