Huawei WIFI AX2 User Manual

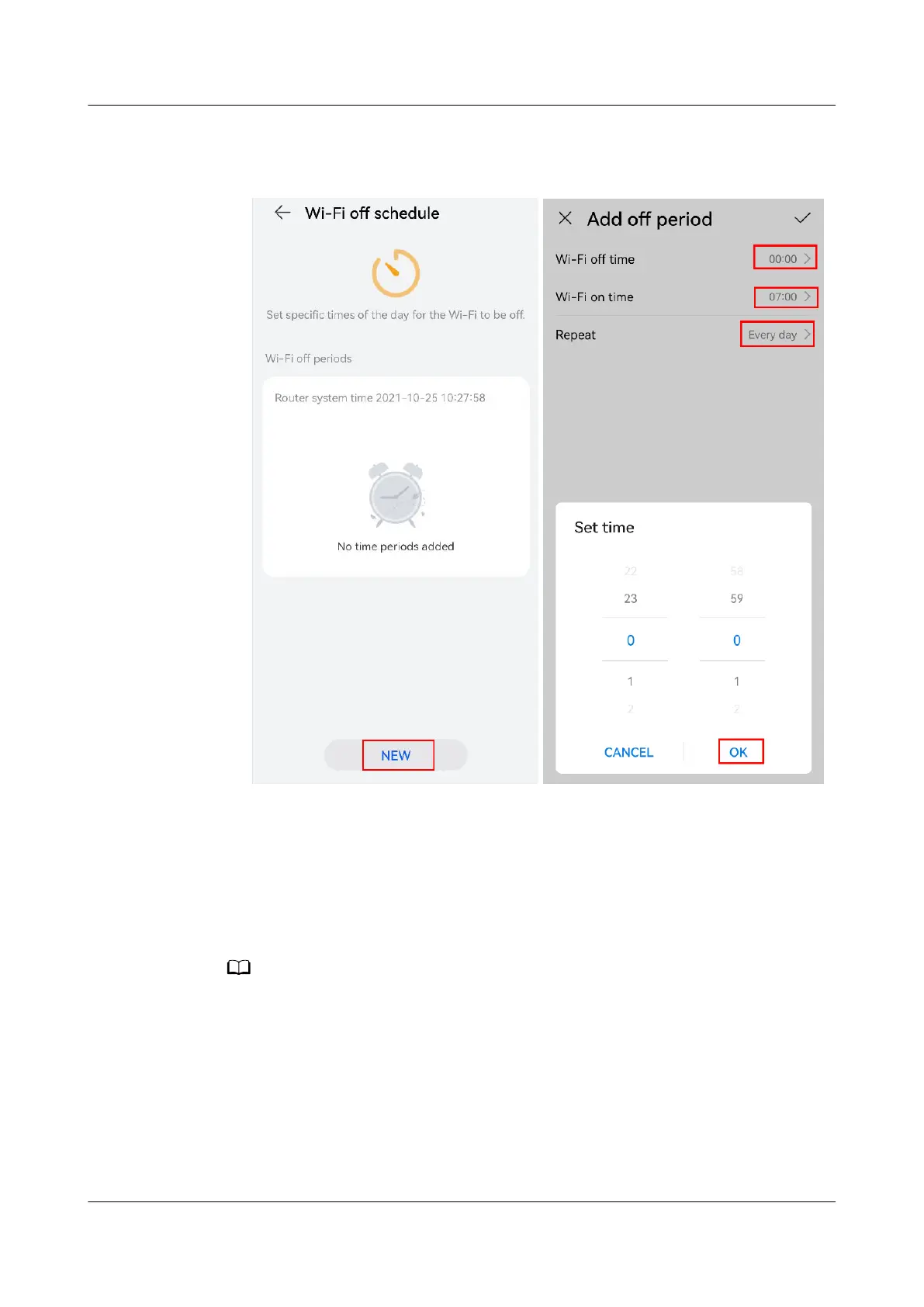

3. From the Wi-Fi o schedule page, touch NEW.Modify the Wi-Fi o time 、
Wi-Fi on time, and Repeat options for your router, then touch the √ icon in
the upper right corner of the screen.
Method 2: Using the web-based management page
1. Connect your computer/phone to the router's Wi-Fi, or connect the computer to
the router's LAN port using an Ethernet cable. Open your Internet browser. Enter
the default IP address in your browser address bar and log into the web-based
management page(check the nameplate at the bottom of the router for the
default IP address).
NO TE
● For routers that feature self-adaptive ports, you do not need to distinguish between
WAN and LAN ports.
● If you are connecting your phone to the router's Wi-Fi network, switch your phone's
webpage to the PC-based UI before performing the following operations.
2. Go to More Functions > Wi-Fi Settings > Wi-Fi Timer.
HUAWEI_WIFI_AX2
HUAWEI_WIFI_AX2
15 How can I set my HUAWEI router's Wi-Fi to turn
o at a certain time
Issue 01 (2022-02-18) Copyright © Huawei Technologies Co., Ltd. 53

Huawei WIFI AX2 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1201 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Antennas quantity	4
Internal memory	128 MB
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Output current	1 A
Power source type	AC, DC
Power consumption (typical)	12 W
Security algorithms	SSID, WPA3
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product type	Tabletop router
Product color	White
Ethernet LAN (RJ-45) ports	3
Mobile network generation	-

Weight and Dimensions

Depth	163.5 mm
Width	257.6 mm
Height	29 mm
Weight	216 g
