Hydac FCU 1310 - Periodic Intermittent Duty - Operating Mode S3, (as Per DIN en 60034-1; DIN VDE 0530, Part 1)

Safety information
NOTICE
Connection to 24 V DC on-board networks without load dump
The FCU will be destroyed.
► Use the FCU only on 24 V DC on-board networks
which have a central
"Load Dump" fuse.
► Before connecting, be sure to check that a load dump is installed with
at least 30 V DC and is effective.

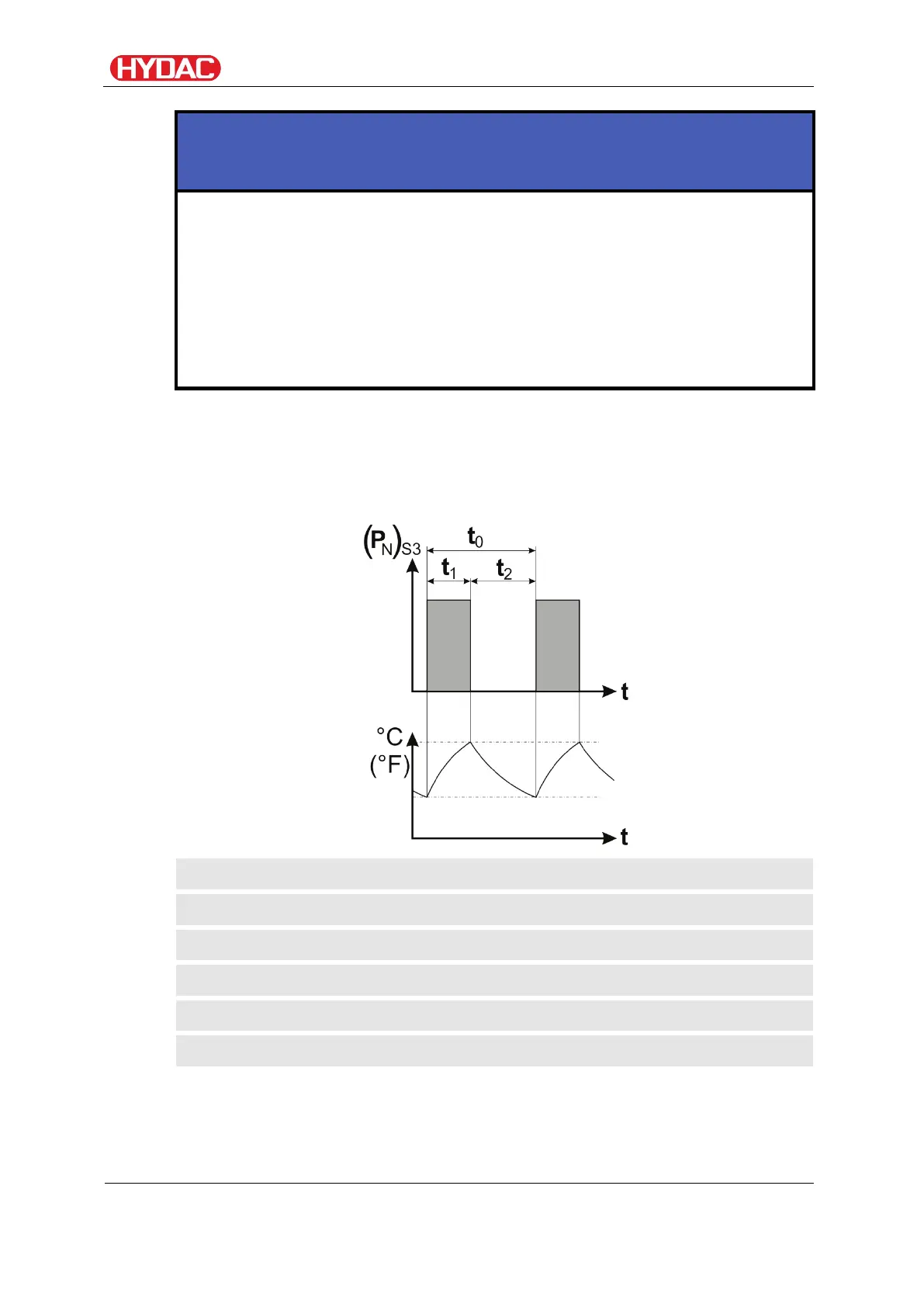

Periodic intermittent duty - operating mode S3,
(as per DIN EN 60034-1 / DIN VDE 0530, part 1)
Operation t
0
in time t
1
at power (P
N
)
S
3 interchange periodically with the
cooling phases (downtimes) t2. The relative duty cycle is 40%.
(P
N
)
S3
=
Nominal power, operating mode S3
t
=
Time
t
0
=
Period (operation t
1
+ cooling phase t
2
)
t
1
=
Operation
t
2
=
Cooling phase (downtime)
°C (°F)
=
Temperature
FCU1310
en(us)
Page 14 / 124
