FCUoperating
FCUoperating
When the FCU is powered up, it is ready for use and the parameters can be
set.
In the following, the individual controls and their use are described.

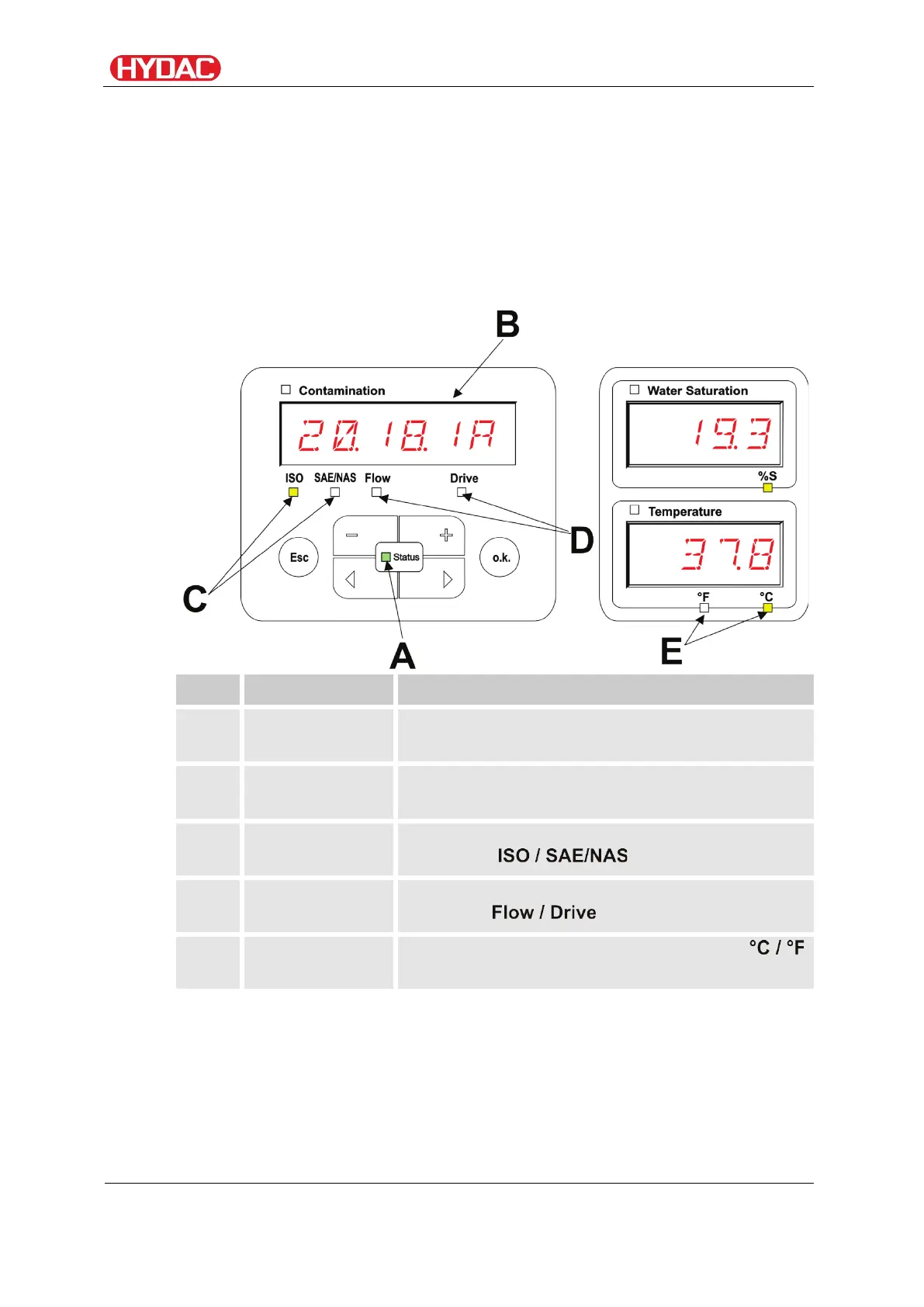

Display and keypad elements
Item
LED
Designation
A
STATUS
Status display
(see page 99 for details).
B
Display
Consists of a 6-digit display and shows the
selected measured values.
C
Measured
variable
Indicates the displayed variable of the display
value, e.g.: .
D
Service variable
Indicates the service variable of the display
value, i.e.: .
E
Unit
The units for the fluid temperature display
.
FCU1310
en(us)
Page 49 / 124
