How the product works

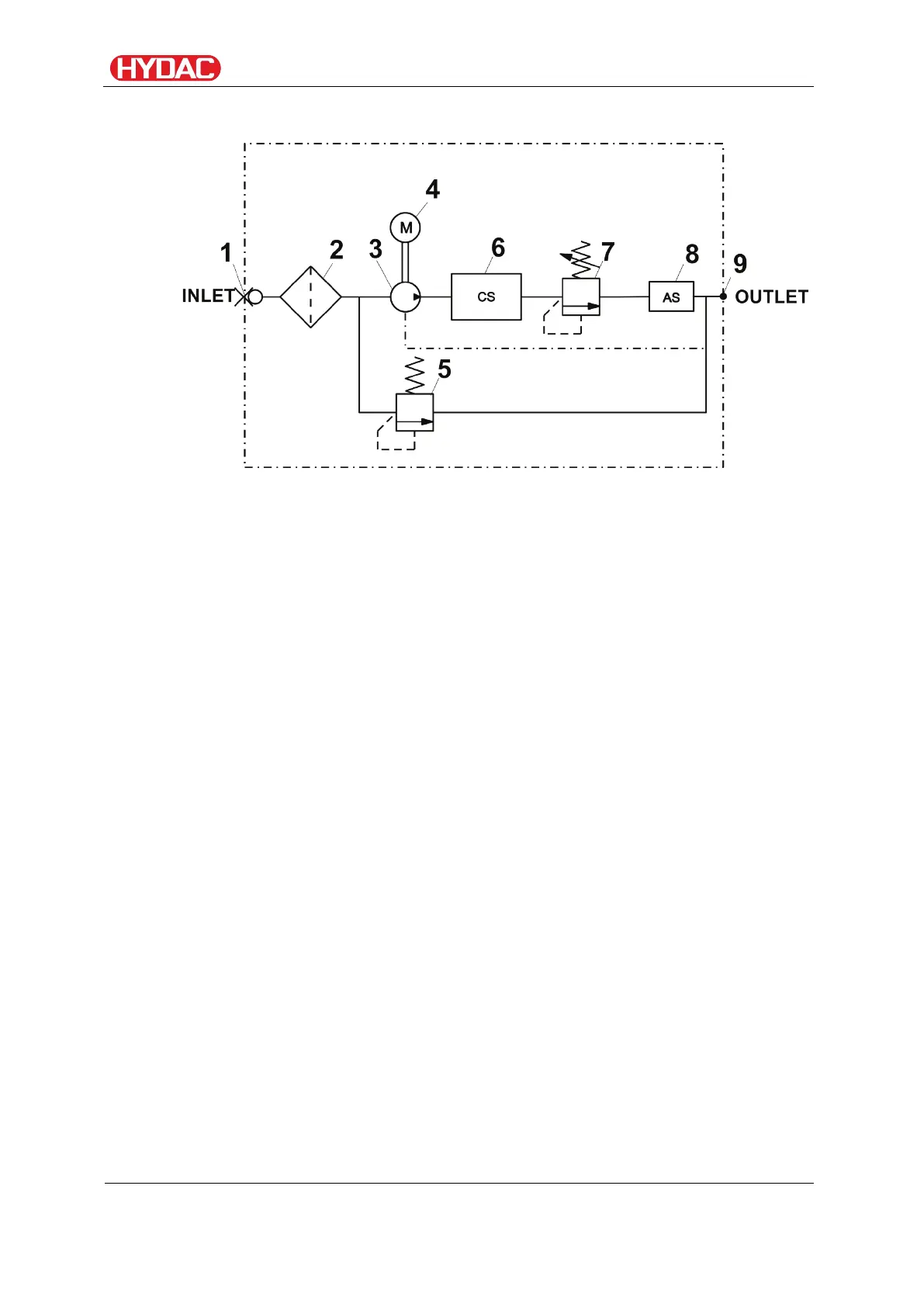

From the oil source (either a pressure port or a bottle sample), a continuous
oil flow is established through the port (1) INLET by an electrically controlled
gear pump (3).
A suction strainer (2) protects the pump from coarse contamination.
The oil current to be analyzed flows through an optical ContaminationSensor
(6). The contaminant particles contained in the oil current cause the light
beam to be darkened in a pulse-like manner. An electronic evaluation module
classifies and counts these measurement signals according to particle
diameter. The evaluation module continuously computes the cleanliness
classes for the reference volume of 100°ml based on the measurement
signals of the optical sensor.
A defined pressure is generated in the oil flow via a counter balance valve
(7). This serves to minimize air bubbles in the system, which could skew the
measurement results.
The pressure relief valve (5) protects the pump and the measuring cell from
excessive pressure.
The oil flow leaves the port (9) OUTLET and is routed by the return hose to a
pressurized tank.
The electronic evaluation module monitors:
• the function of the ContaminationSensors
• the oil flow
• the power supply voltage
• the function of the AquaSensors
When a malfunction occurs, an error message automatically appears in the
display and interrupts the measurement. The evaluation module will
recognize when the cause of error has been corrected, and the unit will reset
automatically and resume the measurement operation.
