Hydac FCU 1310 - Cleaning High-Pressure Adapter Strainer

Performing maintenance
Cleaning / changing the strainer in the high pressure adapter
NOTICE
Operation without a strainer
The FCU pump can be damaged
► Never use the high-pressure adapter without a strainer.
► Clean the suction strainer regularly

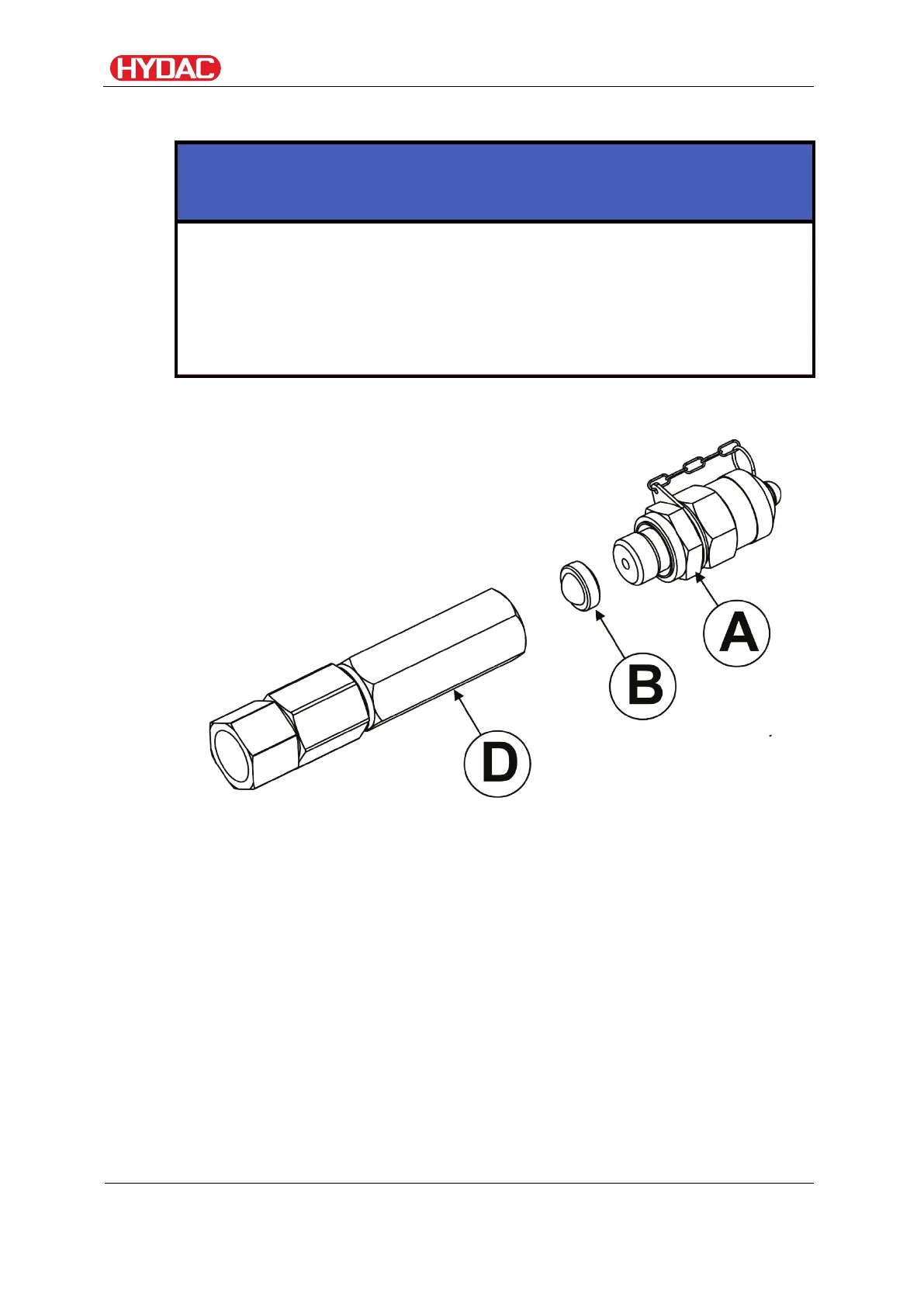

The strainer (B) in the high-pressure adapter must be cleaned regularly.
Remove the measurement coupling (A) from the threaded joint (D) with a 22
mm open-jaw wrench, anticlockwise. Then unscrew the strainer (B)
anticlockwise with a screwdriver or the special tool (see accessories list 105).
Clean strainer (B) and then blow it out with compressed air.
To fit the strainer (B), screw it in, clockwise, to union (D) using a screwdriver
or the special tool.
Then check the sealing ring on the coupling (A) for damage and replace if
necessary.
Turn the coupling (A) in a clockwise direction and tighten to 25 Nm.
