FCUOpening/Closing

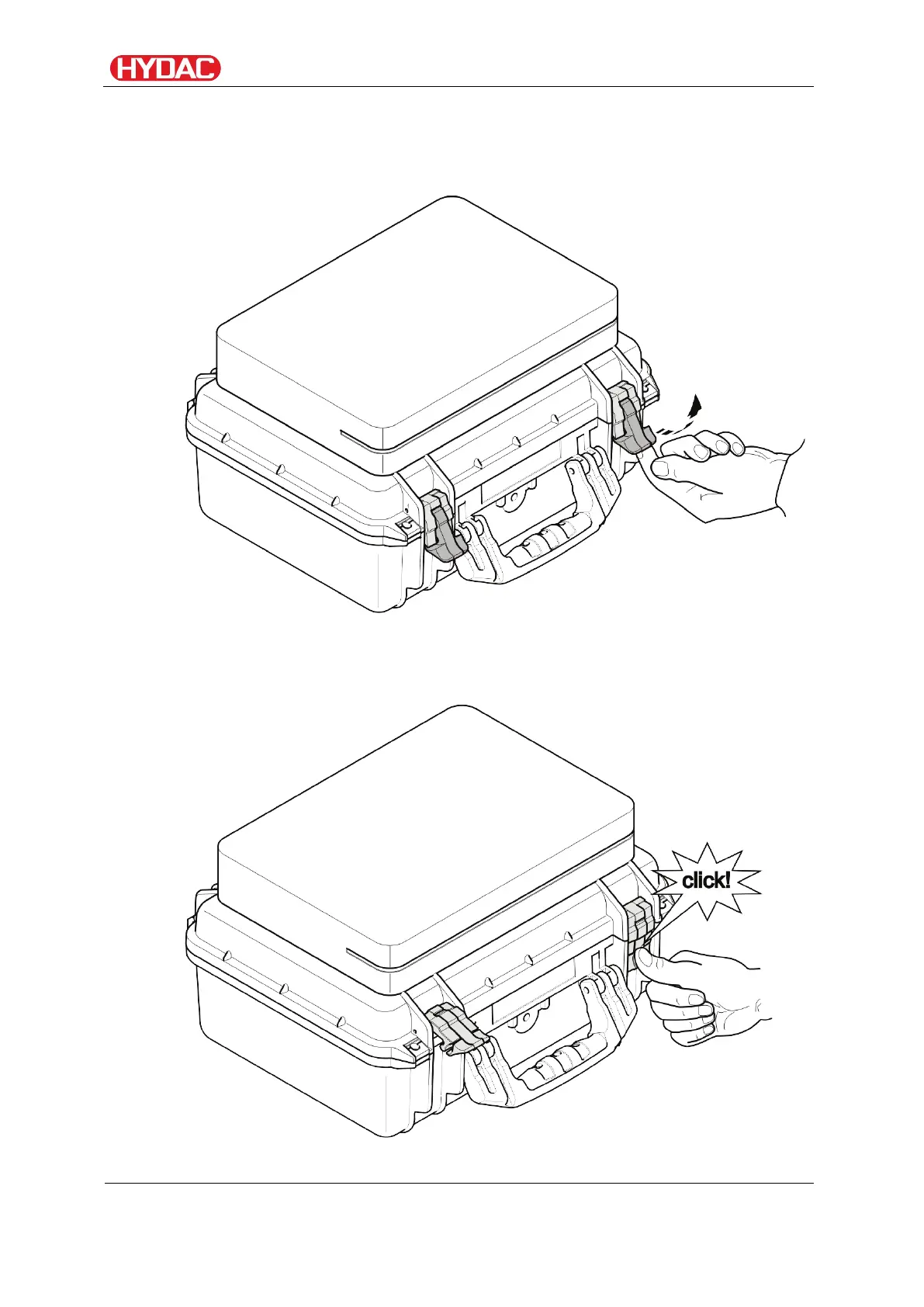

Open the FCU by releasing both clips.

Close the FCU using both clips. Make sure that these audibly snap into

place.

FCU1310

en(us)

Page 18 / 124

BeWa FCU1310 V300 3371346f en-us 2017-01-27.docx 2017-01-27
