Preparing the FCU for measurement
Make sure that the following sequence is observed:
1.
Go through the steps in chapter
"Preparing the FCU for
measurement“ on pages 36 to 39.
2.

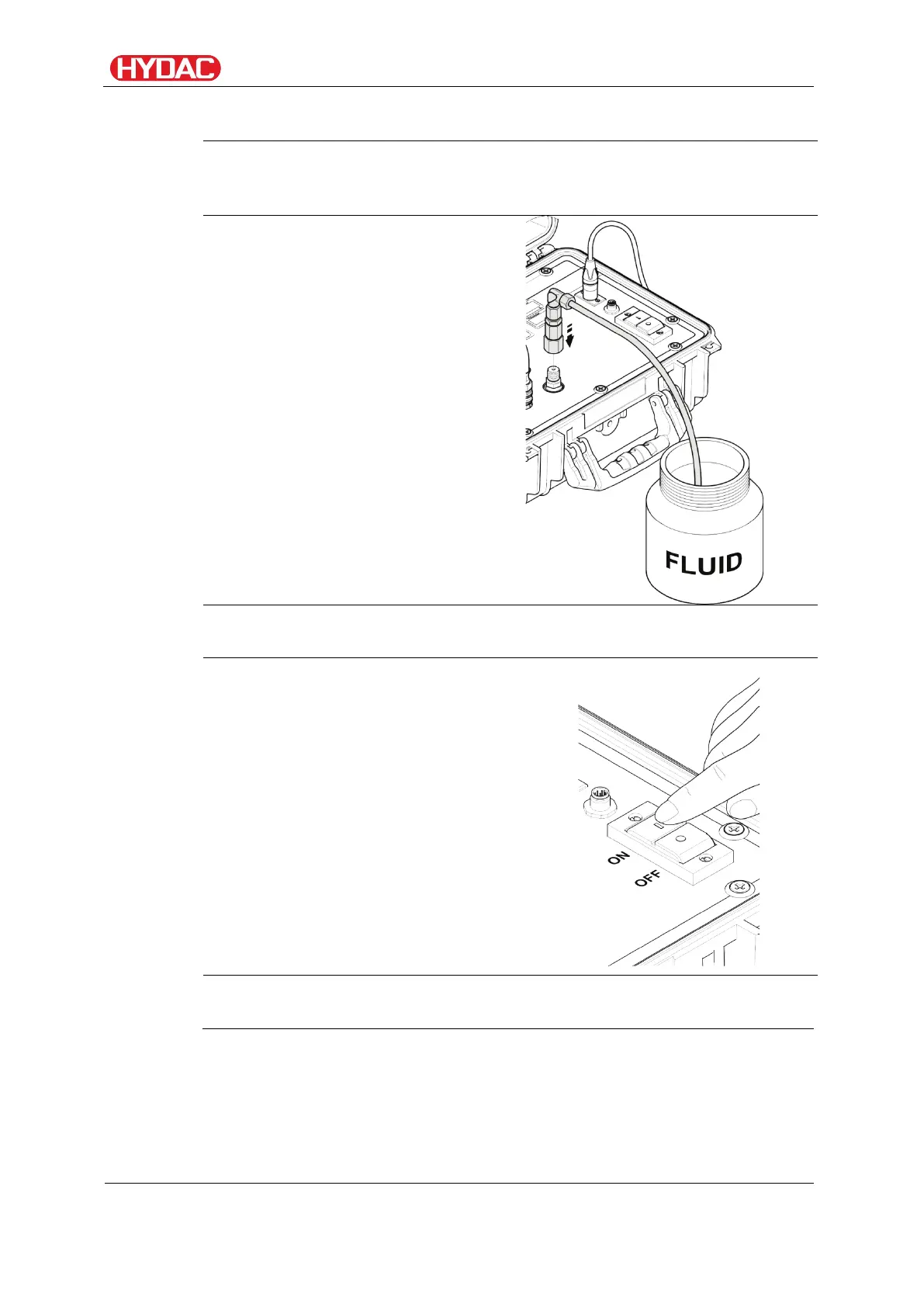

Connect the suction hose
(transparent) to the INLET of the
FCU.
Put the other end of the transparent
suction hose into an unpressurized
container.
3.
This completes the hydraulic
installation.
4.
Switch on the internal pump.
5.
The FCU will start with the
measurement.
