Using the BatteryPack (accessory)
3.

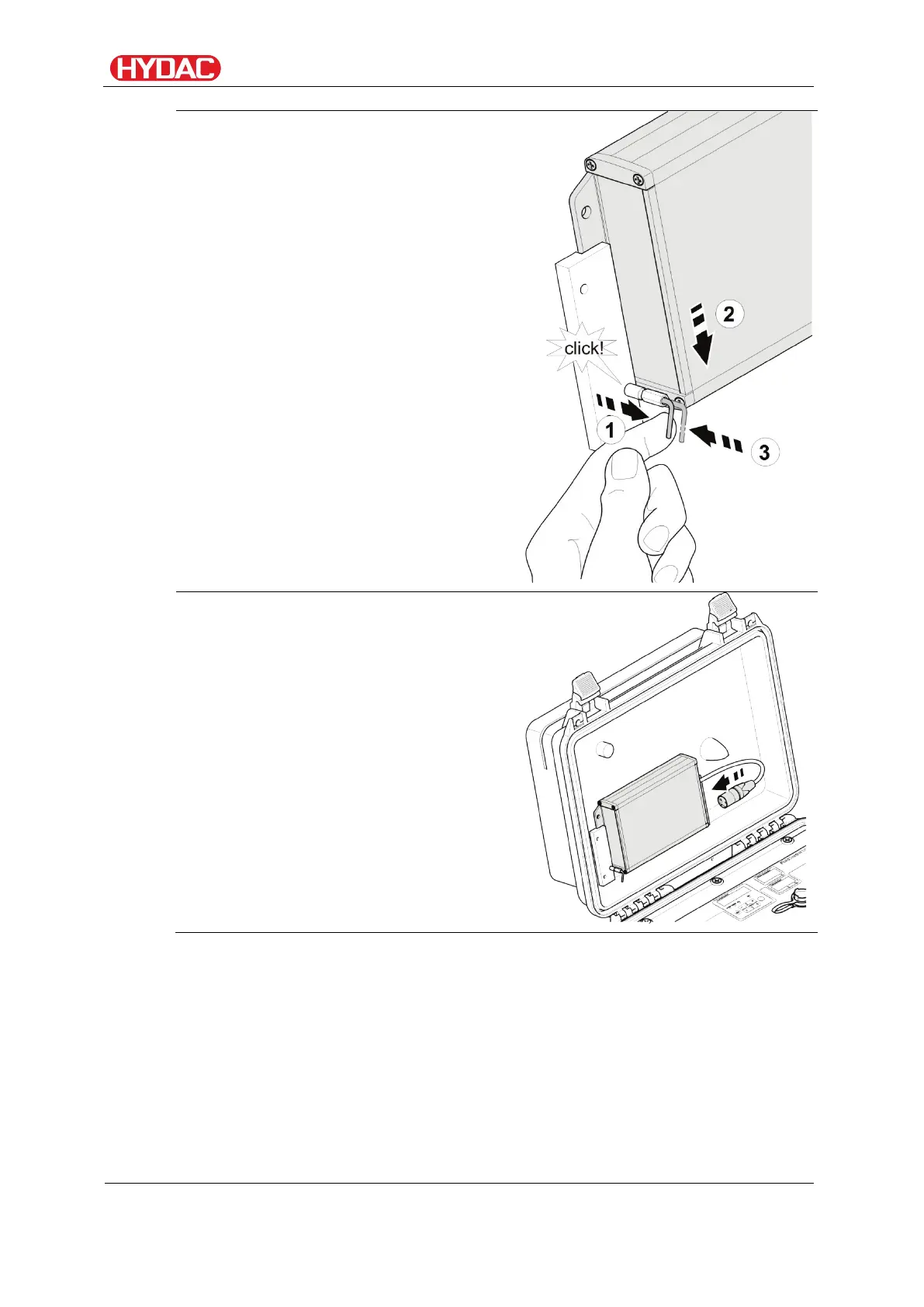

Pull the locking pin (1).
Slide the BatteryPack down until it
touches the lower stop in the guide
rails (2).
Release the locking pin (3). A spring
will return the locking pin to its
original position, thus securing the
BatteryPack.
Check that the BatteryPack is firmly
seated.
4.
Insert the connector into the socket
on the BatteryPack.
