IAI ROBO Cylinder RCS4- SA4C - Page 128

5.1 External Dimensions
5-11
5. External Dimensions

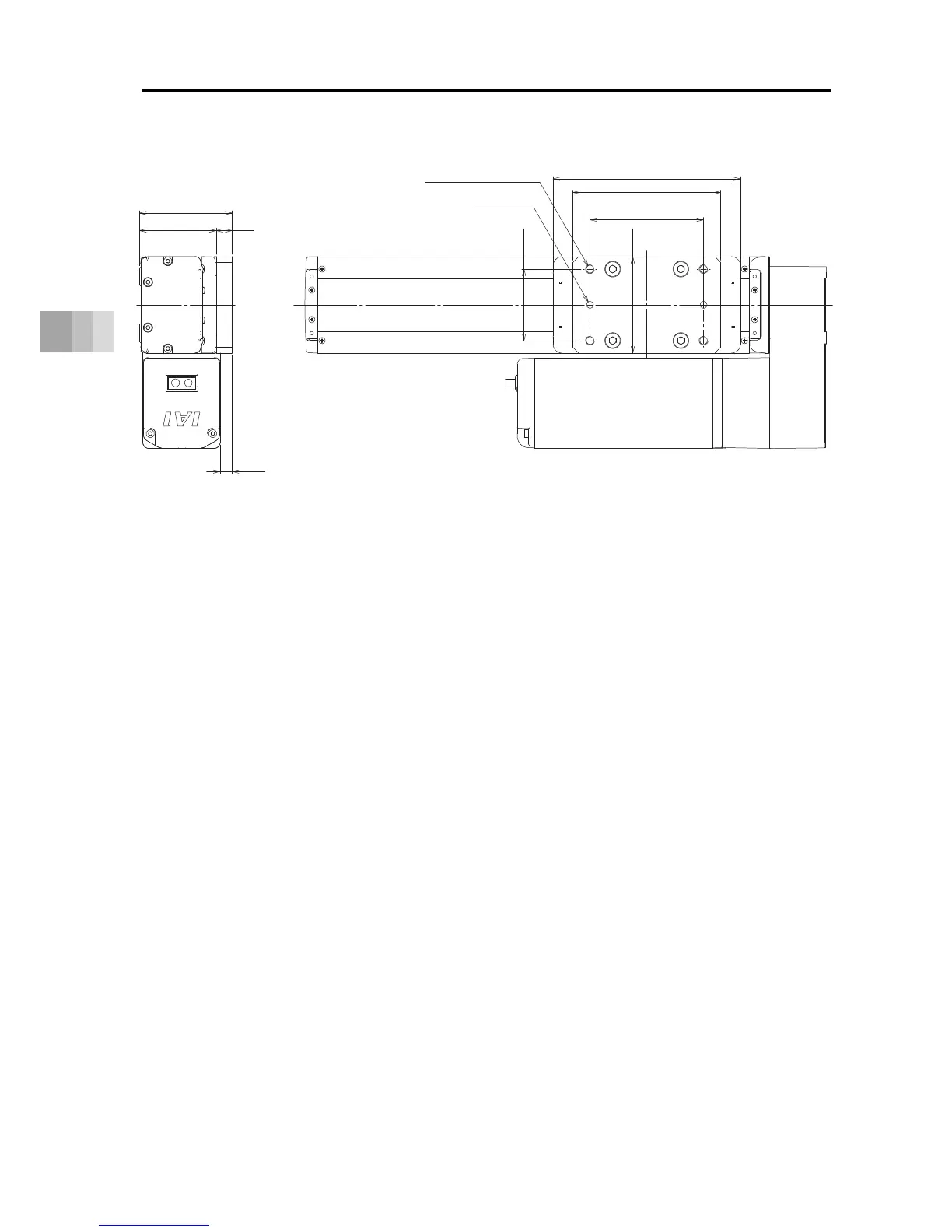

Slider Spacer (Optional Model: SS)
14
(81.5)
67.5
(10.5)
85
130
63
100
165
Through 4-M8
(Bolt screwing Depth 13mm)
(Slider Cover length)
2-φ6 H7 Depth 5
(±0.02 between of φ6H7)
