• If the system power is turned off, continue with step “5” on page 407.
• If you are using the AIX operating system, continue with step “10” on page 408.
• If you are using the Linux operating system, continue with step “12” on page 408.
5. If you chose to complete this repair with the power off, using your labels, reconnect the UPIC cables
to the system control unit.
UPIC cable locations are P1-C1-T1 and P1-C2-T1.
a. Ensure that the white plastic lock is pulled back from the plug housing.
b. Plug the UPIC cable (A) into the previously identied location in the system control unit by
inserting the cable into the connector until it locks into place.

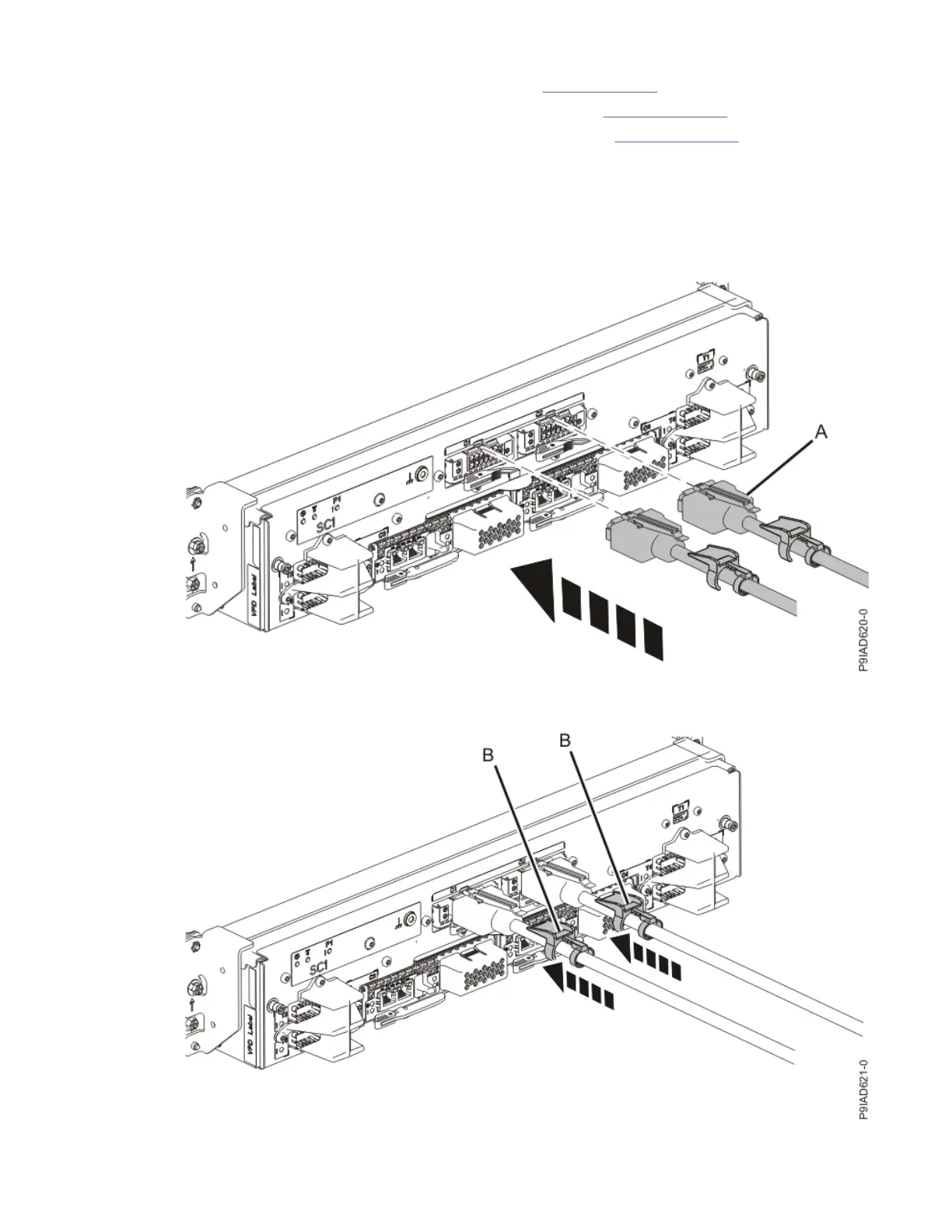

Figure 350. Replacing the UPIC cable into the system control unit
c. Push the white plastic lock (B) onto the plug housing.
Figure 351. Replacing the UPIC cable into the system control unit
