Operator information panel cable connection

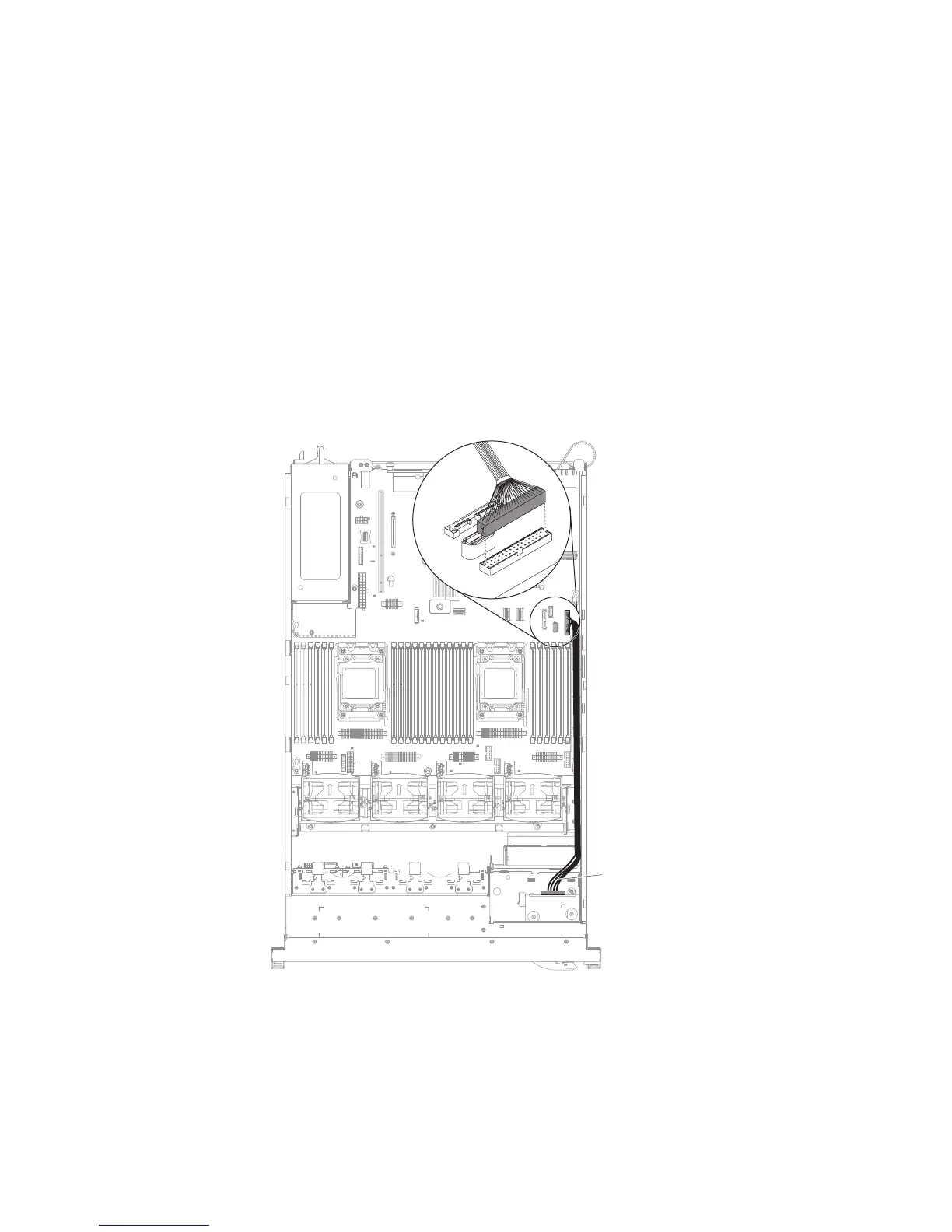

The following illustration shows the internal routing and connector for the operator
information panel cable. The following notes describe additional information you
must consider when you install or remove the operator information panel cable:
v You may remove the optional optical drive cable to obtain more room before you
install or remove the operator information panel cable.
v To remove the operator information panel cable, slightly press the cable toward
the chassis; then, pull to remove the cable from the connector on the system
board. Pulling the cable out of the connector by excessive force might cause
damage to the cable or connector.
v To connect the operator information panel cable on the system board, press
evenly on the cable. Pressing on one side of the cable might cause damage to
the cable or connector.
Attention: Failing to install or remove the cable with care may damage the
connectors on the system board. Any damage to the connectors may require
replacing the system board.
Operator panel
cable
Chapter 5. Removing and replacing server components 197
