IBM System x3650 M4 Type 7915 Problem Determination And Service Guide

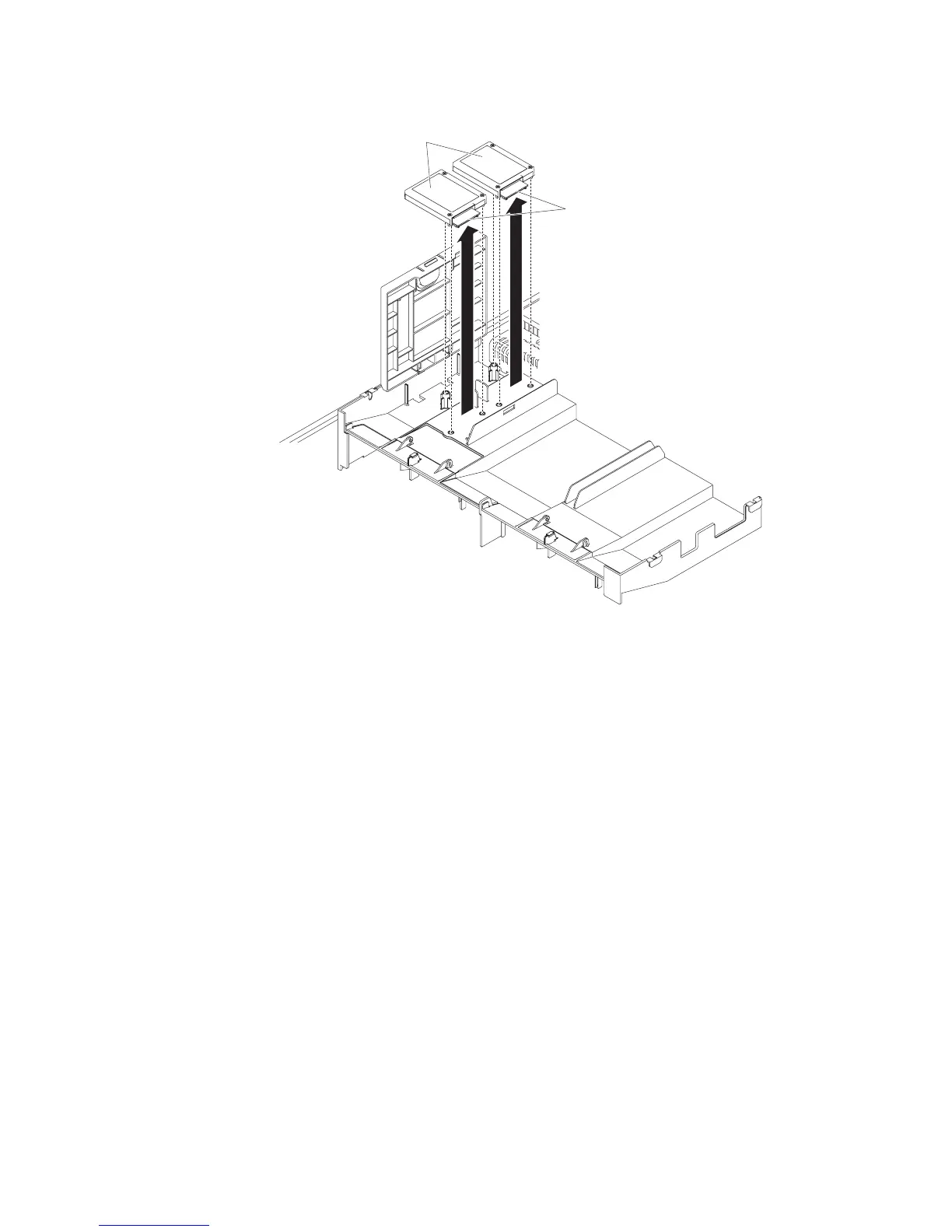

4. Press the release tab toward the fan cage and unlock the battery retention clip.
Battery
Battery cable
connector
5. Disconnect the battery cable from the battery cable connector on the battery.
6. Lift the battery up to remove the battery from the battery holder.
If you are instructed to return the ServeRAID adapter battery, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to you.
Installing a ServeRAID SAS controller battery on the remote battery
tray
When you install any ServeRAID adapter that comes with batteries, it is sometimes
necessary to install the batteries in another location in the server to prevent the
batteries from overheating. The batteries must be installed near the fan cage. To
install a ServeRAID adapter battery in the server, complete the following steps:
Note: If you are installing ServeRAID-M5100 Series 512 MB cache RAID 5
upgrade that comes with a battery, you must install the battery in ServeRAID SAS
controller remote battery retention instead (see “Installing an optional ServeRAID
SAS controller battery holder” on page 209).
232 IBM System x3650 M4 Type 7915: Problem Determination and Service Guide

IBM System x3650 M4 Type 7915 Specifications

General

Form Factor	2U Rack
Chipset	Intel C600 series chipset
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Processor	Up to two Intel Xeon E5-2600 series processors
Memory	Up to 768GB DDR3 (24 DIMM slots)
Storage	Up to 16 x 2.5" or 6 x 3.5" SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 10
Network	Four integrated Gigabit Ethernet ports
Power Supply	Up to two redundant hot-swap 550 W, 750 W, or 900 W power supplies
Expansion Slots	Up to 7 PCIe 3.0 slots
Storage Controller	ServeRAID M5110e
Management	Integrated Management Module (IMM) v2
