6. Install the battery:
a. Align the battery cable connector with the slot on the battery holder. Place
the battery into the battery holder and make sure that the battery holder

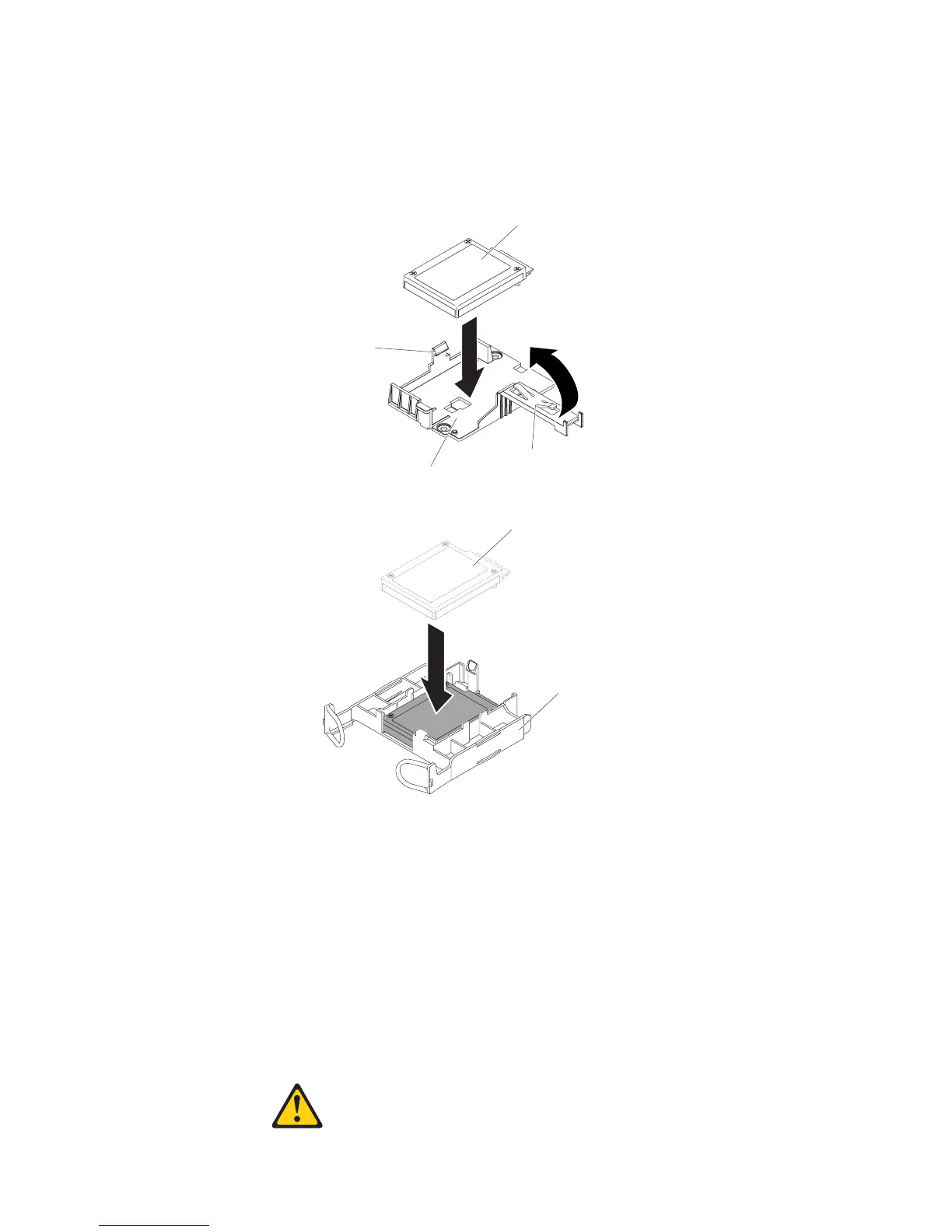

engages the battery securely. The following illustrations show the batteries
installed in the battery holder and battery tray respectively.
Battery
retention clip
Battery
Release
tab
Battery
holder
Battery tray
Battery
Note: The positioning of the remote battery depends on the type of remote
battery that you install.
b. Connect the other end of the battery cable to the battery cable connector on
the battery.
7. Install the cover “Installing the cover” on page 206.
8. Slide the server into the rack.
9. Reconnect the power cords and all external cables, and turn on the server and
peripheral devices.
Removing the battery
Statement 2:
Chapter 5. Removing and replacing server components 273
