IBM System x3650 M4 Type 7915 Problem Determination And Service Guide

Installing the cover

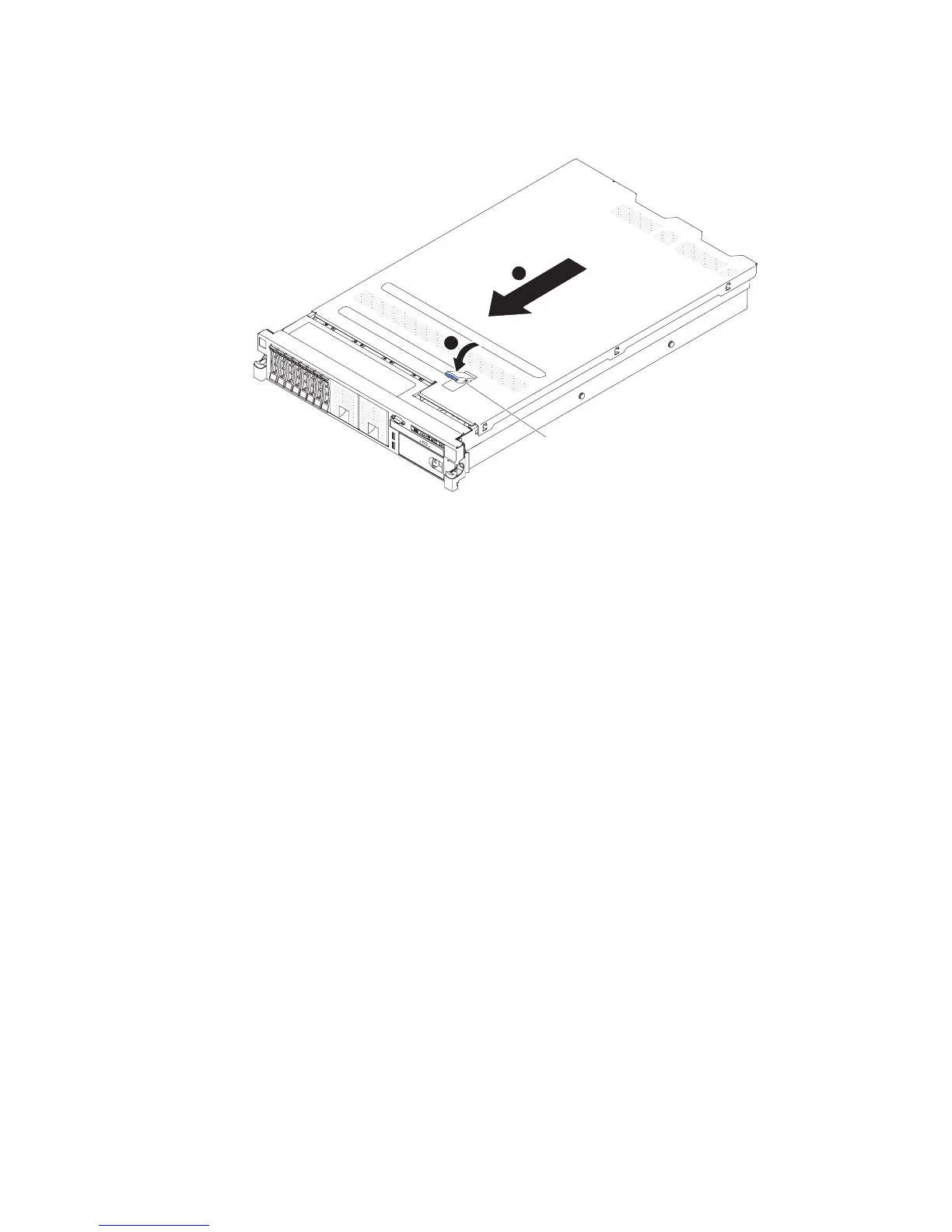

To install the cover, complete the following steps.
Cover-release
latch
1
2
1. Make sure that all internal cables are correctly routed (see “Internal cable
routing and connectors” on page 194.)
2. Place the cover-release latch in the open (up) position.
3. Insert the bottom tabs of the top cover into the matching slots in the server
chassis.
4. Press down on the cover-release latch to lock the cover in place.
5. Slide the server into the rack.
Removing the air baffle
When you work with some optional devices, you must first remove the DIMM air
baffle to access certain components or connectors on the system board.
To remove the DIMM air baffle, complete the following steps.
206 IBM System x3650 M4 Type 7915: Problem Determination and Service Guide

IBM System x3650 M4 Type 7915 Specifications

General

Form Factor	2U Rack
Chipset	Intel C600 series chipset
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Processor	Up to two Intel Xeon E5-2600 series processors
Memory	Up to 768GB DDR3 (24 DIMM slots)
Storage	Up to 16 x 2.5" or 6 x 3.5" SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 10
Network	Four integrated Gigabit Ethernet ports
Power Supply	Up to two redundant hot-swap 550 W, 750 W, or 900 W power supplies
Expansion Slots	Up to 7 PCIe 3.0 slots
Storage Controller	ServeRAID M5110e
Management	Integrated Management Module (IMM) v2
