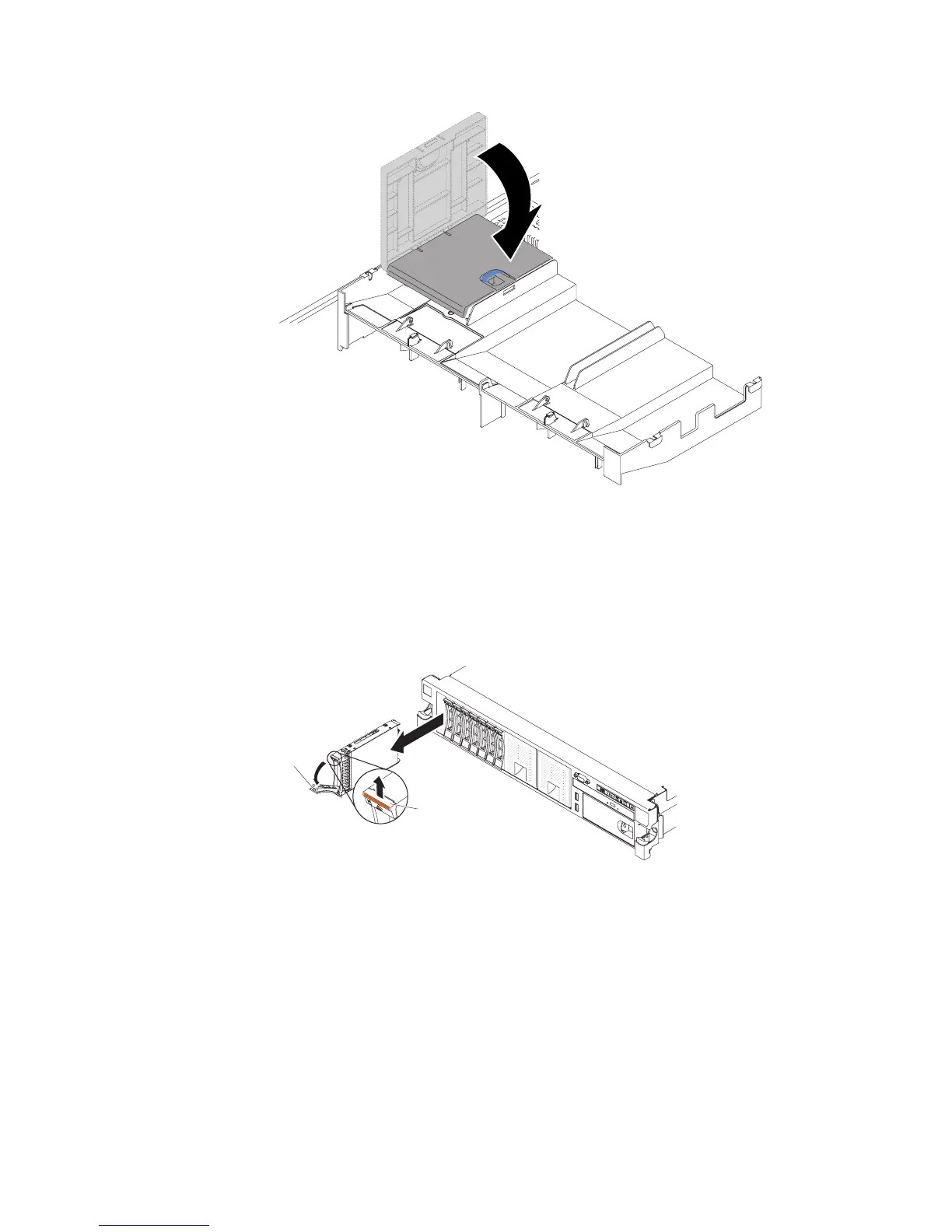

5. Make sure that the battery holder is secured firmly on the air baffle.
6. Install the cover “Installing the cover” on page 206.
7. Slide the server into the rack.
8. Reconnect the power cords and all external cables, and turn on the server and
peripheral devices.
Removing a hot-swap hard disk drive
Latch
Handle
Attention: To maintain proper system cooling, do not operate the server for more
than 10 minutes without either a drive or a filler panel installed in each bay.
To remove a hard disk drive from a hot-swap bay, complete the following steps.
1. Read the safety information that begins on page vii, “Handling static-sensitive
devices” on page 193, and “Installation guidelines” on page 191.
2. Press up on the release latch at the top of the drive front.
3. Rotate the handle on the drive downward to the open position.
4. Pull the hot-swap drive assembly out of the bay approximately 25 mm (1 inch).
Wait approximately 45 seconds while the drive spins down before you remove
the drive assembly completely from the bay.
236 IBM System x3650 M4 Type 7915: Problem Determination and Service Guide
