IBM System x3650 M4 Type 7915 Problem Determination And Service Guide

Thumbscrew
Pin

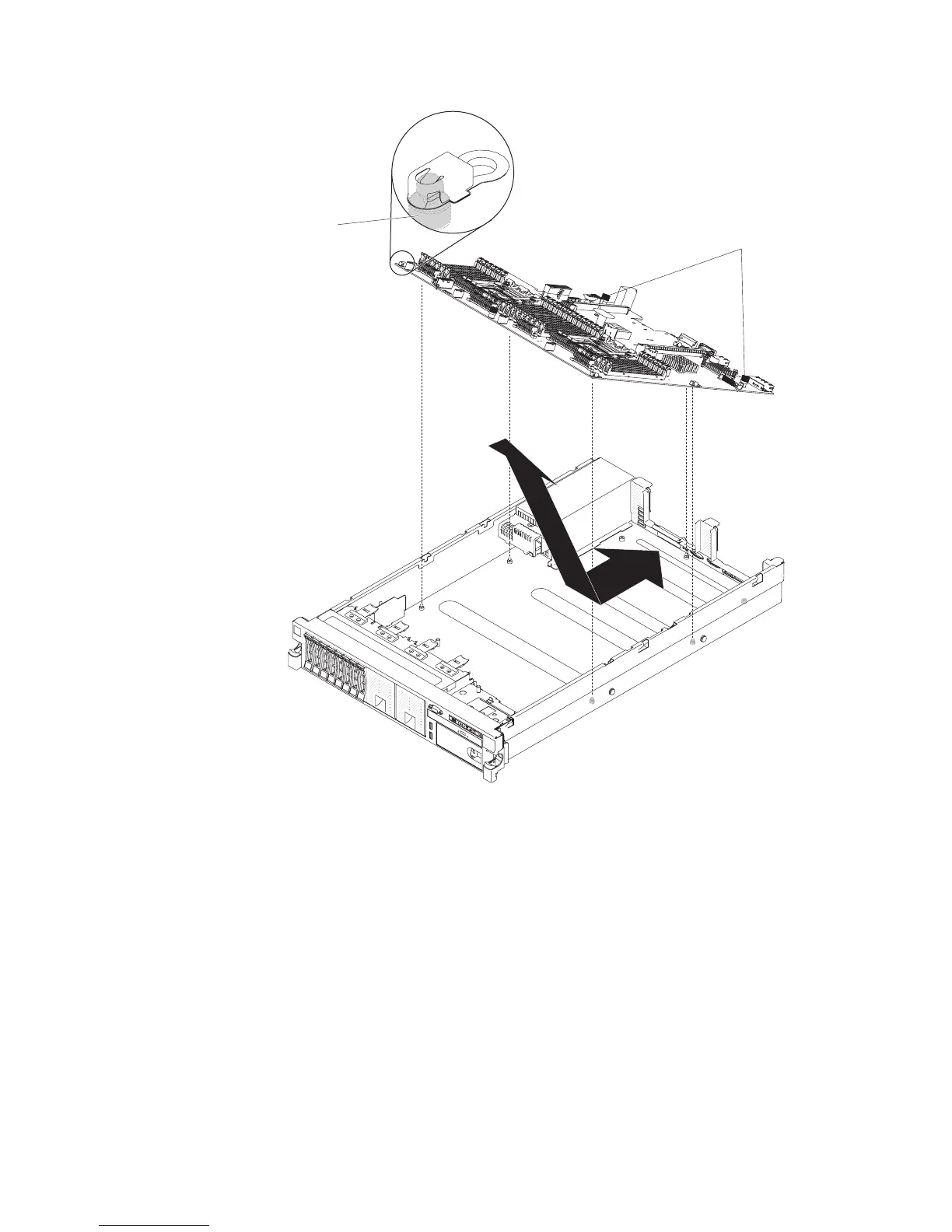

13. Slide the system board forward and tilt it away from the power supplies. Using
the two lift handles on the system board, pull the system board out of the
server.
14. If you are instructed to return the system board, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
15. Remove the socket covers from the microprocessor sockets on the new
system board and place them on the microprocessor sockets of the system
board you are removing.
Attention: Make sure to place the socket covers for the microprocessor
sockets on the system board before you return the old system board.
Installing the system board
Notes:
1. When you reassemble the components in the server, be sure to route all cables
carefully so that they are not exposed to excessive pressure (see “Internal cable
routing and connectors” on page 194).
292 IBM System x3650 M4 Type 7915: Problem Determination and Service Guide

IBM System x3650 M4 Type 7915 Specifications

General

Form Factor	2U Rack
Chipset	Intel C600 series chipset
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Processor	Up to two Intel Xeon E5-2600 series processors
Memory	Up to 768GB DDR3 (24 DIMM slots)
Storage	Up to 16 x 2.5" or 6 x 3.5" SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 10
Network	Four integrated Gigabit Ethernet ports
Power Supply	Up to two redundant hot-swap 550 W, 750 W, or 900 W power supplies
Expansion Slots	Up to 7 PCIe 3.0 slots
Storage Controller	ServeRAID M5110e
Management	Integrated Management Module (IMM) v2
