IBM System x3650 M4 Type 7915 Problem Determination And Service Guide

3.5-inch hard disk drive cable connection
Configuration cable connection

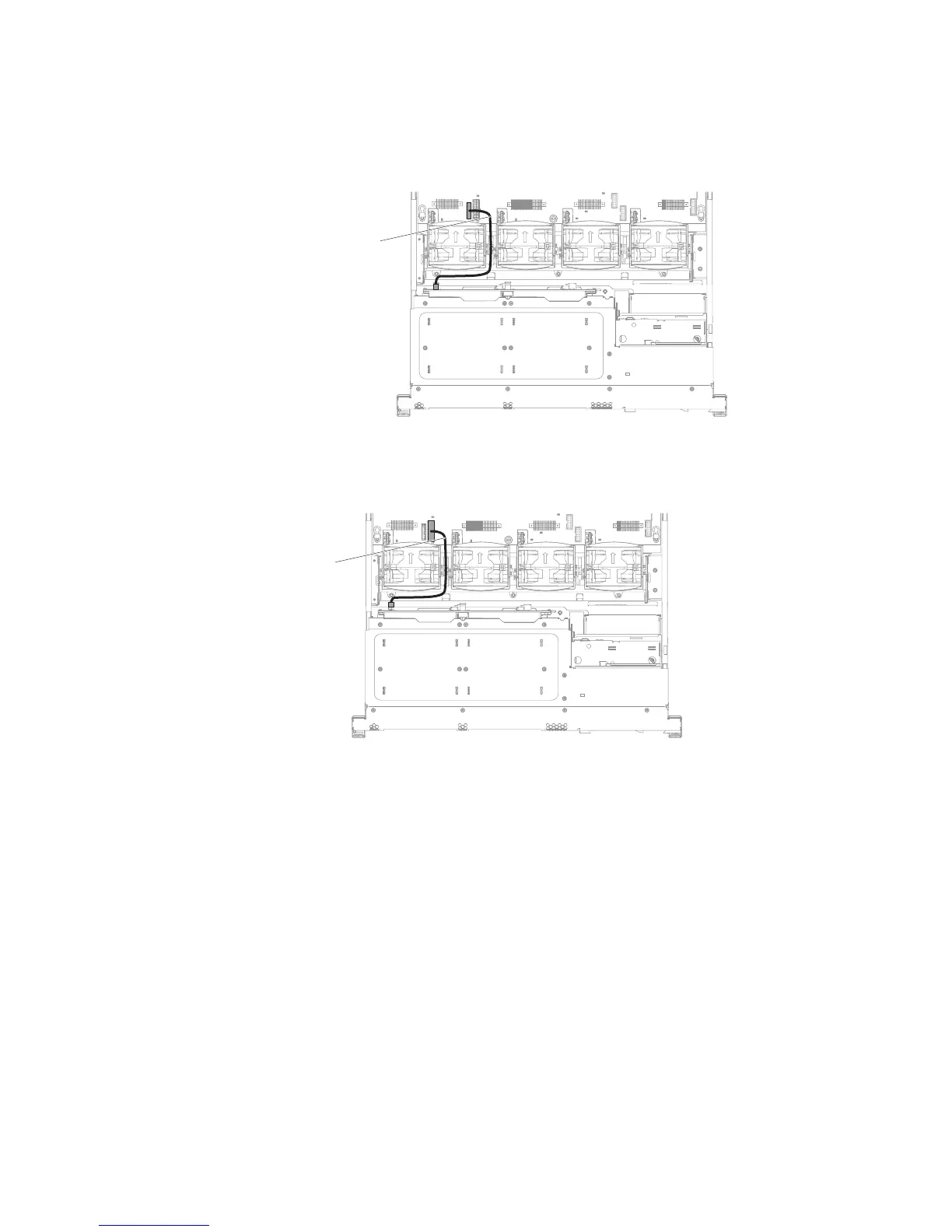

The following illustration shows the internal routing for the configuration cable.
Configuration cable
Power cable connection
The following illustration shows the internal routing for the hard disk drive power
cable.
SAS/SATA
backplane
power cable
Chapter 5. Removing and replacing server components 203
