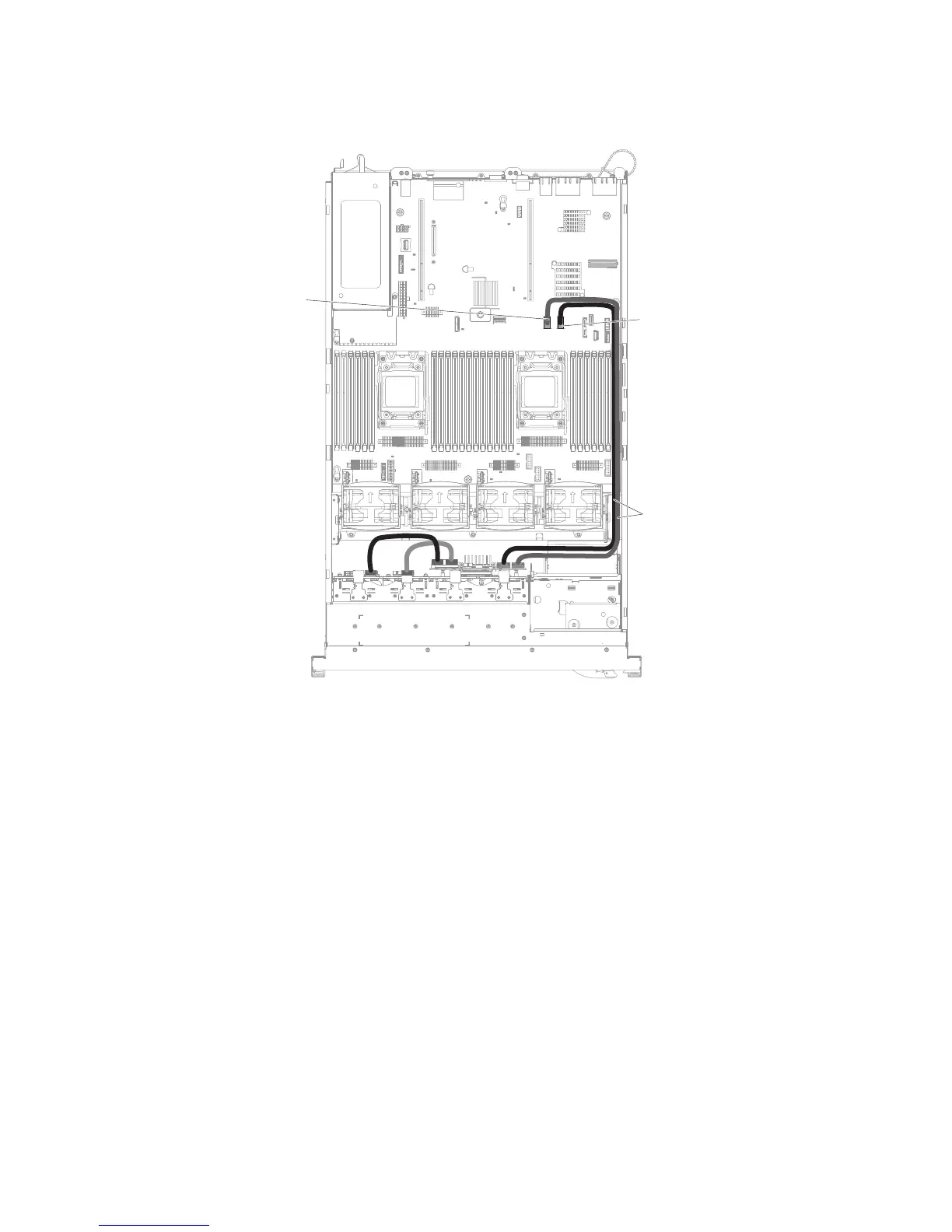

Hard disk drive cable connection: The following illustration shows the internal
routing and connectors for the two SAS signal cables.
SAS signal cables
Port 0-7
Port 8-15
202 IBM System x3650 M4 Type 7915: Problem Determination and Service Guide
