IBM System x3650 M4 Type 7915 Problem Determination And Service Guide

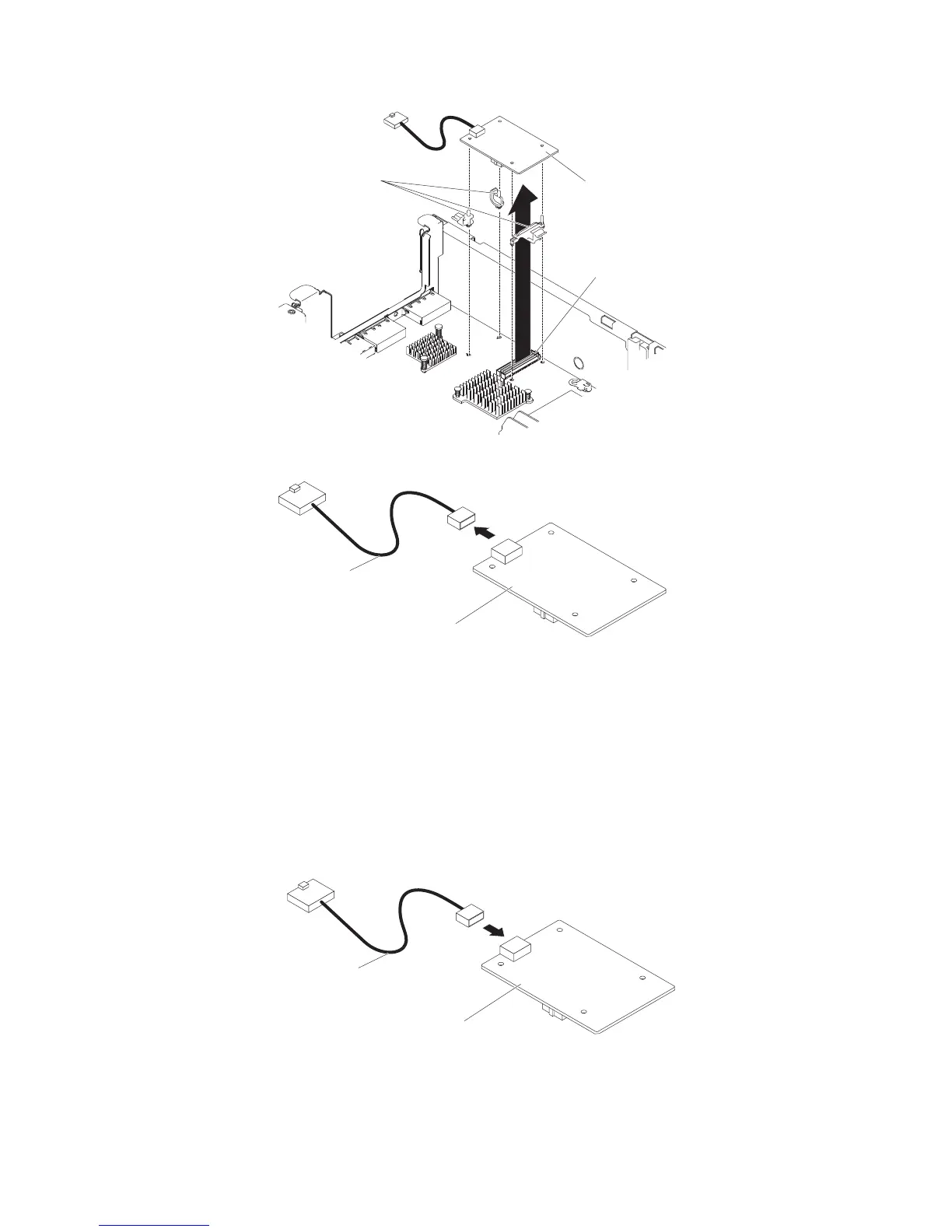

RAID upgrade
connector
Rententions
ServeRAID
upgrade adapter
6. Disconnect the supercap cable from the ServeRAID upgrade adapter.
Supercab cable
ServeRAID upgrade adapter
7. If you are instructed to return the feature key, follow all packaging instructions,
and use any packaging materials for shipping that are supplied to you.
Installing an optional ServeRAID upgrade adapter
To install an optional ServeRAID upgrade adapter, complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 191.
2. Turn off the server and peripheral devices and disconnect the power cords.
3. Remove the cover (see “Removing the cover” on page 205).
4. Connect the supercap cable to the ServeRAID upgrade adapter.
Supercab cable
ServeRAID upgrade adapter
5. Attach the three pegs to the ServeRAID upgrade adapter and install the
ServeRAID upgrade adapter into the system board.
230 IBM System x3650 M4 Type 7915: Problem Determination and Service Guide

IBM System x3650 M4 Type 7915 Specifications

General

Form Factor	2U Rack
Chipset	Intel C600 series chipset
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Processor	Up to two Intel Xeon E5-2600 series processors
Memory	Up to 768GB DDR3 (24 DIMM slots)
Storage	Up to 16 x 2.5" or 6 x 3.5" SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 10
Network	Four integrated Gigabit Ethernet ports
Power Supply	Up to two redundant hot-swap 550 W, 750 W, or 900 W power supplies
Expansion Slots	Up to 7 PCIe 3.0 slots
Storage Controller	ServeRAID M5110e
Management	Integrated Management Module (IMM) v2
