IBM System x3650 M4 Type 7915 Problem Determination And Service Guide

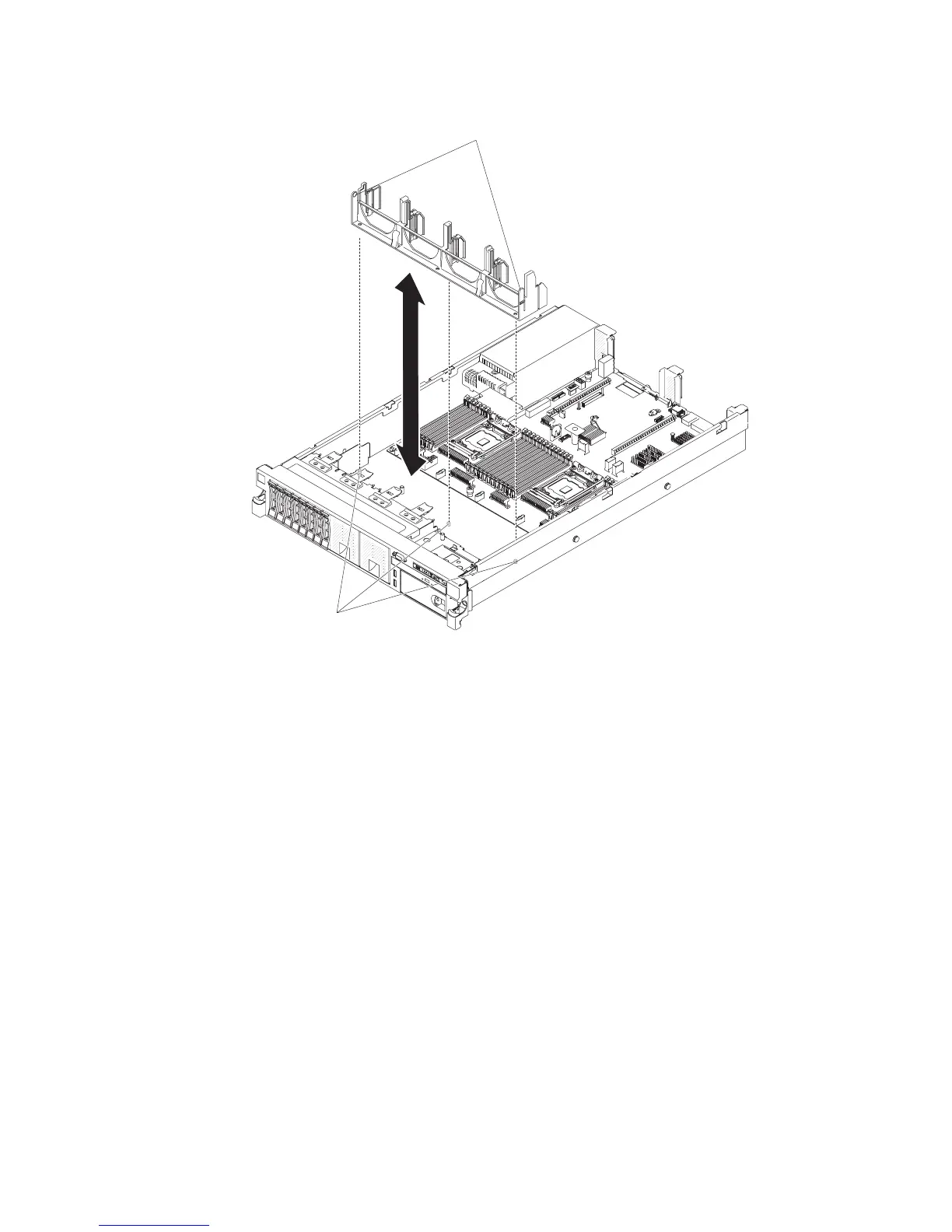

Fan-bracket
release latches
Pins
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 191.
2. Turn off the server and peripheral devices and disconnect all power cords and
external cables.
3. Remove the cover (see “Removing the cover” on page 205).
4. Remove the fans (see “Removing a hot-swap dual-motor hot-swap fan” on page
257).
5. Remove the PCI riser-card assemblies (see “Removing a PCI riser-card
assembly” on page 218).
6. Press the fan-bracket release latches toward each other and lift the fan bracket
out of the server.
214 IBM System x3650 M4 Type 7915: Problem Determination and Service Guide

IBM System x3650 M4 Type 7915 Specifications

General

Form Factor	2U Rack
Chipset	Intel C600 series chipset
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Processor	Up to two Intel Xeon E5-2600 series processors
Memory	Up to 768GB DDR3 (24 DIMM slots)
Storage	Up to 16 x 2.5" or 6 x 3.5" SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 10
Network	Four integrated Gigabit Ethernet ports
Power Supply	Up to two redundant hot-swap 550 W, 750 W, or 900 W power supplies
Expansion Slots	Up to 7 PCIe 3.0 slots
Storage Controller	ServeRAID M5110e
Management	Integrated Management Module (IMM) v2
