IBM System x3650 M4 Type 7915 Problem Determination And Service Guide

Network adapter
filler panel
6. Touch the static-protective package that contains the new adapter to any
unpainted metal surface on the server. Then, remove the adapter from the
package.

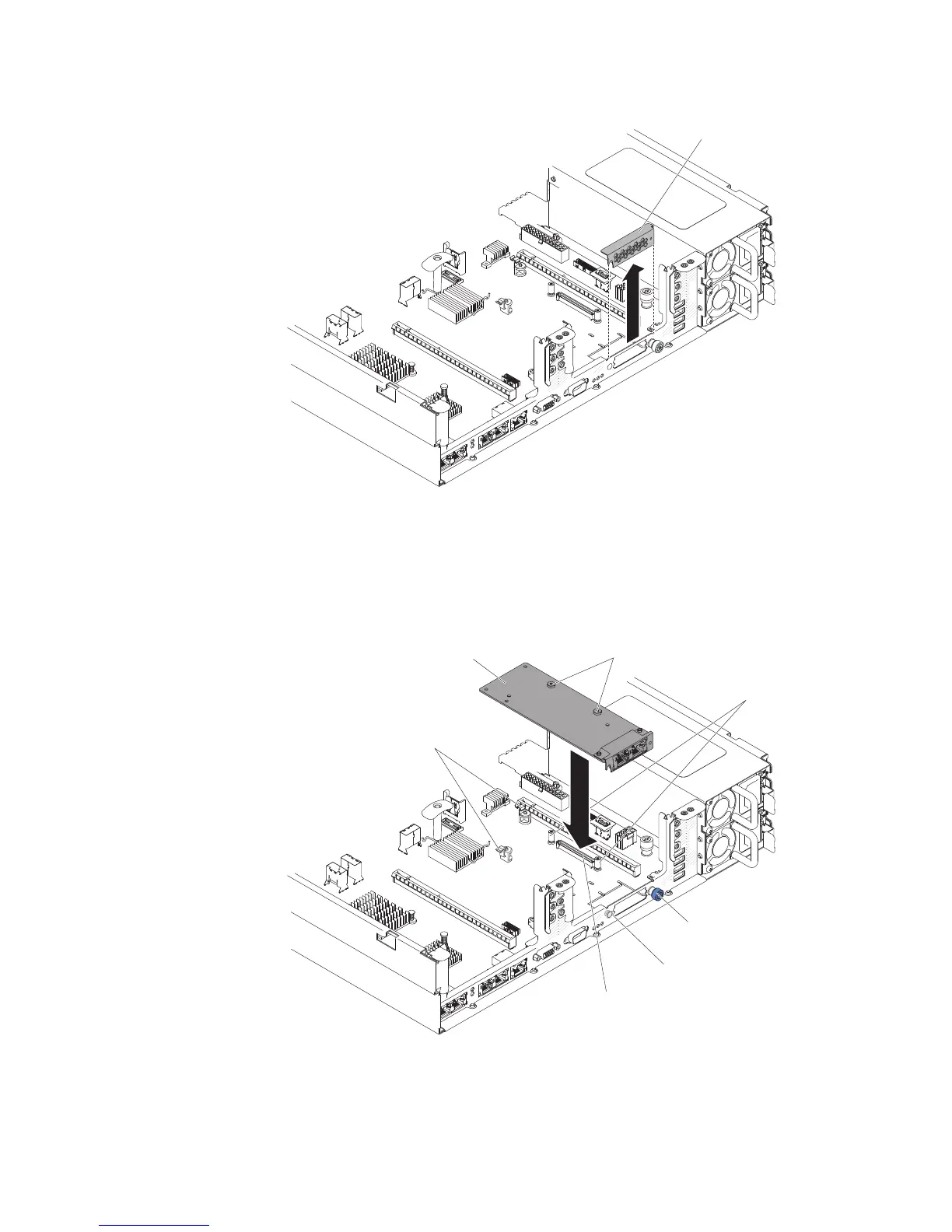

7. Align the adapter so that the port connectors on the adapter line up with the
pin and thumbscrew on the chassis; then, align the connector of the adapter
with the adapter connector on the system board.
Pin
Thumbscrew
Screw holes
Retention
brackets
Network
adapter
Captive screws
Network
adapter connector
8. Press the adapter firmly until the pin, standoffs, and retention brackets engage
the adapter. Make sure the adapter is securely seated on the connector on the
system board.
228 IBM System x3650 M4 Type 7915: Problem Determination and Service Guide
