IBM System x3650 M4 Type 7915 Problem Determination And Service Guide

To remove a tape drive from the server, complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 191.
2. Turn off the server and peripheral devices, and disconnect the power cords and
all external cables.
3. Slide the server out of the rack; then, remove the cover (see “Removing the
cover” on page 205).

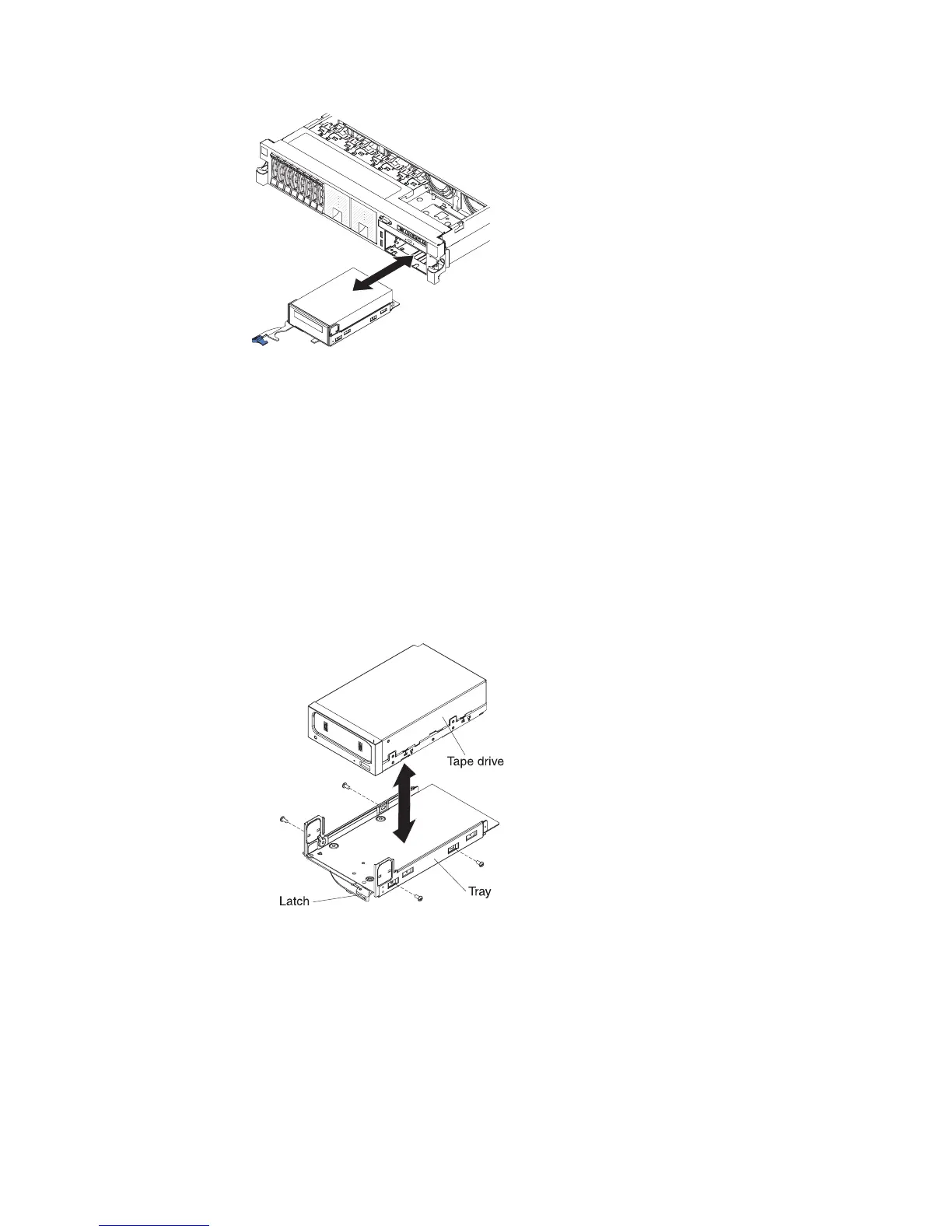

4. Open the tape drive tray release latch and slide the drive tray out of the bay
approximately 25 mm (1 inch).
5. Disconnect the power and signal cables from the rear of the tape drive.
6. Pull the drive completely out of the bay.
7. Remove the tape drive from the drive tray by removing the four screws on the
sides of the tray.
8. If you are not installing another drive in the bay, insert the tape drive filler panel
into the empty tape drive bay.
9. If you are instructed to return the drive, follow all packaging instructions, and
use any packaging materials for shipping that are supplied to you.
248 IBM System x3650 M4 Type 7915: Problem Determination and Service Guide

IBM System x3650 M4 Type 7915 Specifications

General

Form Factor	2U Rack
Chipset	Intel C600 series chipset
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Processor	Up to two Intel Xeon E5-2600 series processors
Memory	Up to 768GB DDR3 (24 DIMM slots)
Storage	Up to 16 x 2.5" or 6 x 3.5" SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 10
Network	Four integrated Gigabit Ethernet ports
Power Supply	Up to two redundant hot-swap 550 W, 750 W, or 900 W power supplies
Expansion Slots	Up to 7 PCIe 3.0 slots
Storage Controller	ServeRAID M5110e
Management	Integrated Management Module (IMM) v2
