IBM System x3650 M4 Type 7915 Problem Determination And Service Guide

Retainer bracket
Heat sink
release lever
Lock tab
Microprocessor
Heat sink

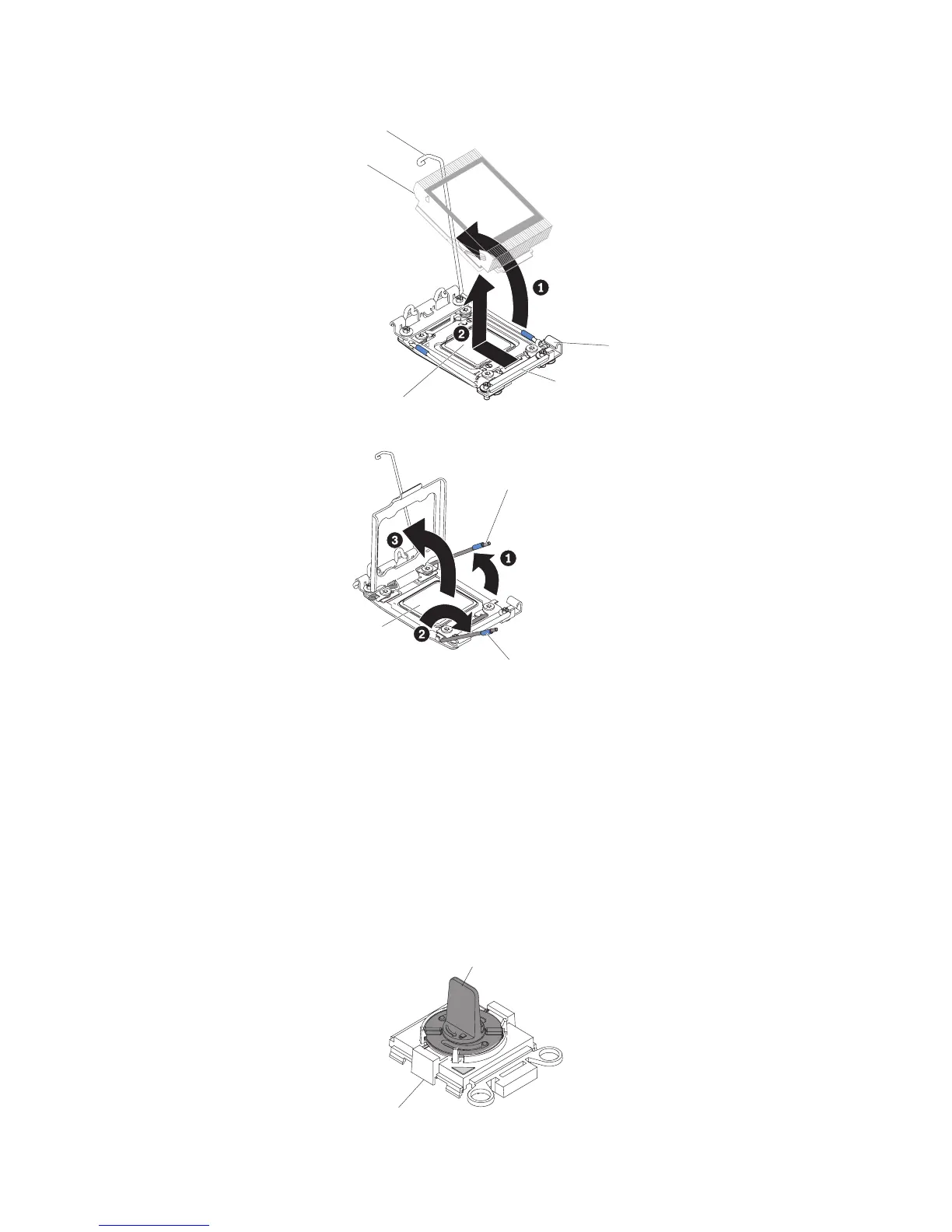

8. Open the microprocessor socket release levers and retainer:
Microprocessor
Microprocessor
release le
ver
Microprocessor
release le
ver
a. Identify which release lever is labeled as the first release lever to open and
open it.
b. Open the second release lever on the microprocessor socket.
c. Open the microprocessor retainer.
Attention: Do not touch the connectors on the microprocessor and the
microprocessor socket.
9. Install the microprocessor on the microprocessor installation tool:
Note: If you are replacing a microprocessor, use the empty installation tool
that comes with the CRU to remove the microprocessor.
a. Twist the handle on the microprocessor tool counterclockwise so that it is
in the open position.
Handle
Installation tool
280 IBM System x3650 M4 Type 7915: Problem Determination and Service Guide

IBM System x3650 M4 Type 7915 Specifications

General

Form Factor	2U Rack
Chipset	Intel C600 series chipset
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Processor	Up to two Intel Xeon E5-2600 series processors
Memory	Up to 768GB DDR3 (24 DIMM slots)
Storage	Up to 16 x 2.5" or 6 x 3.5" SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 10
Network	Four integrated Gigabit Ethernet ports
Power Supply	Up to two redundant hot-swap 550 W, 750 W, or 900 W power supplies
Expansion Slots	Up to 7 PCIe 3.0 slots
Storage Controller	ServeRAID M5110e
Management	Integrated Management Module (IMM) v2
