Section 2 - Product Information
PRODUCT INFO
20 Installation and Servicing
Table 9 Control Box
2.4 CONTROL BOX
Physical Properties
Packaged Weight - Gross (unpackaged Weight) kg 8.5 (5)
Height (unpackaged) mm 796 (627)
Width (unpackaged) mm 320 (254)
Depth (unpackaged) mm 176 (147)
Maximum Ambient Temp ° C 60
Electrical Properties
IP Rating.
IP 20
Rated Voltage.
VAC 220-240
Maximum Rated Current
A 16
Rated Power Input
W 3000
Frequency
Hz 50
Fuse Rating
External fuse without Immersion Heater
A 5
External fuse with Immersion Heater
A 20
2.4.1 Control Box Dimensions and Clearances
ᘐ CAUTION: Do not obstruct the product by any
surrounding objects or surfaces as this can limit
access and adversely a󰀨ect performance. The minimum
clearances that are shown in Figure 22 should be always
maintained.
ⓘ IMPORTANT: Front clearance can be reduced to 5mm
(e.g. cupboard installation) but must maintain 900 mm
serviceable access.

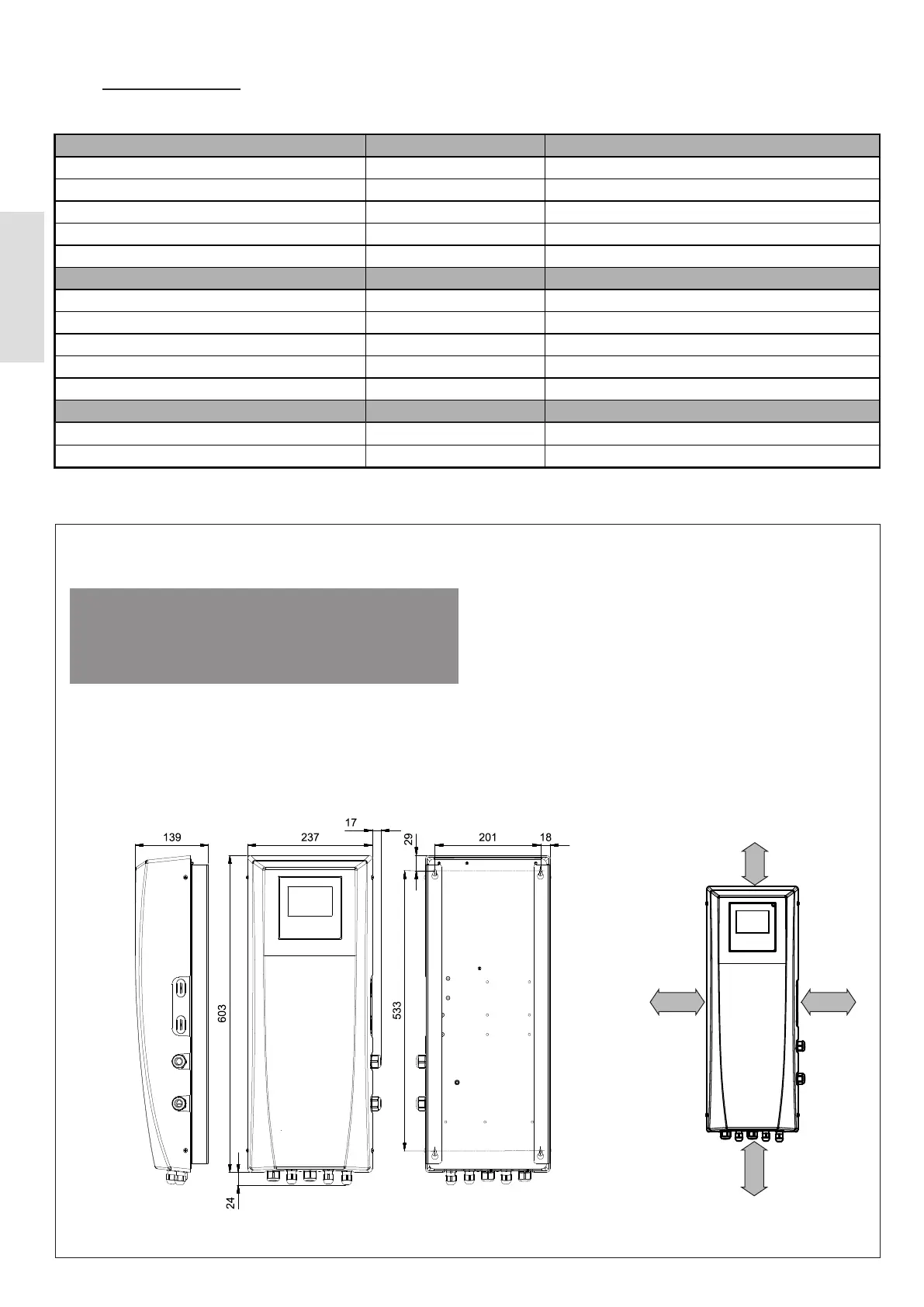

Figure 21. Control Box - Dimensions Figure 22. Control Box - Clearances
200 mm 200 mm
20 mm
200 mm
