INSTALLATION
30 Installation and Maintenance
Section 4 - Installation

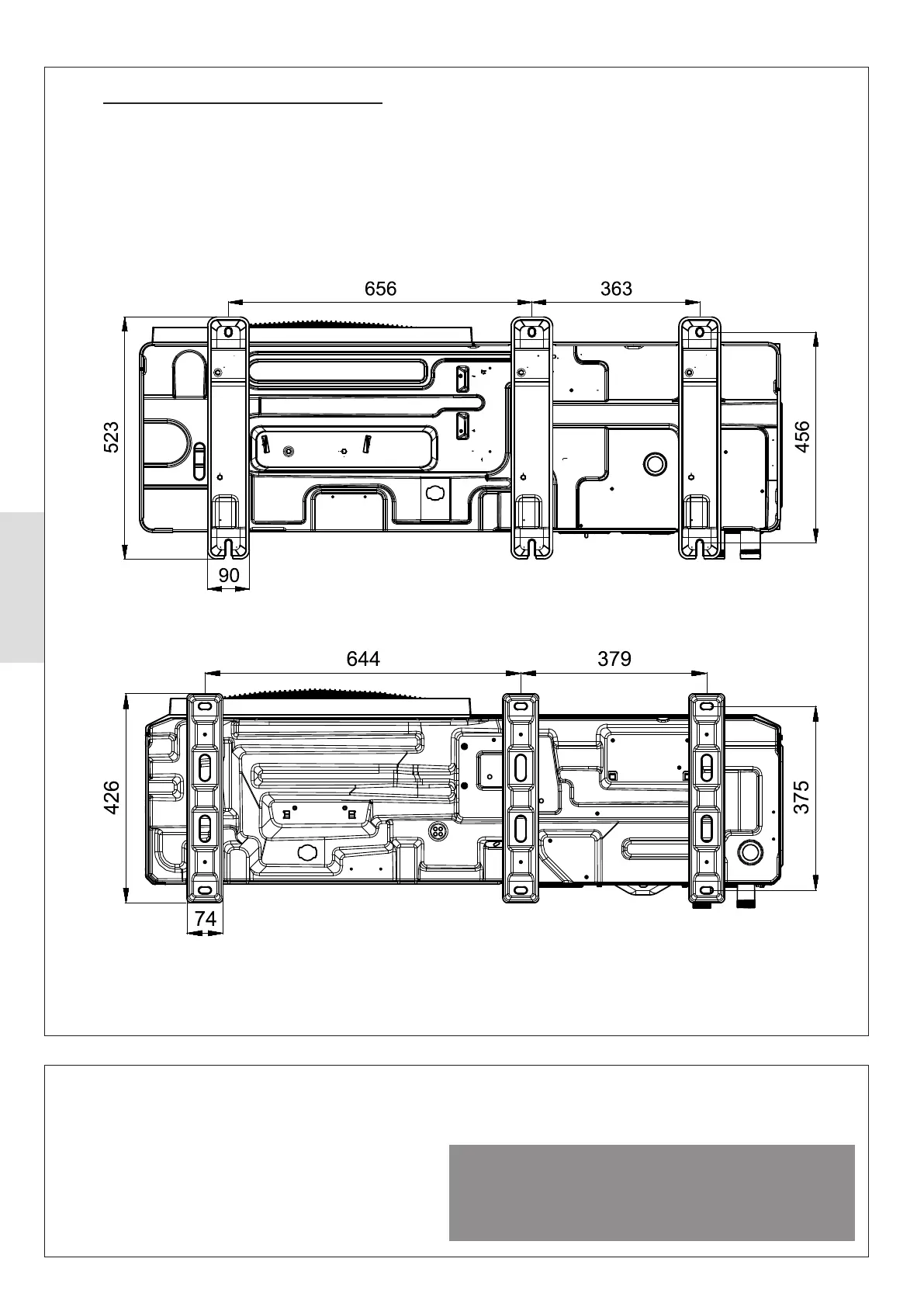

Figure 31. Dimensions of Mounting Fixtures (8 - 14 kW)
Figure 32. Dimensions of Mounting Fixtures (4.5 - 6 kW)
4.1 INSTALLATION OF HEAT PUMP
4.1.1 Preparation of Installation Area
The installation site is to follow the requirements and be
determined using the conditions outlined in Section 3.3.
4.1.2 Floor Mounting
4.1.2.1 Mounting Foundation
A level mounting foundation must be prepared, and it is
to be structurally sound and designed to not structurally
degrade over time. It is to be of stable and solid construction
following structural engineering principles and it must easily
support the weight of the heat pump.
The heat pump must be raised to at least 5 cm above the
ground level. In areas prone to snow, this height should be
increased but should not exceed 100 cm from ground level.
ᘐ CAUTION: To not impede the performance of the heat
pump it must be made sure that the foundation is level.
Failure to meet this requirement may compromise the
unit’s ability to correctly drain condensate and negatively
aect the operation of the refrigerant circuit.
Figure 31 and Figure 32 shows the dimensions of the mounting
Heat Pump which will provide both vibration protection and the
necessary minimum ground clearance requirements.
