Section 2 - Product Information
PRODUCT INFO
22 Installation and Servicing
2.6 LOCATION OF DATA PLATES
2.6.1 Heat Pump
The data plate can be found on the side
of the Heat Pump as shown in Figure 23.
2.6.2 DHW Cylinder
The location of the main data plate and warning label,
shown in Figure 24,
model of the DHW Cylinder.
2.6.3 Control Box
The main data plate can be found on the inside of the control
box door as shown in Figure 25.
of the control box, Figure 25 and on the front of the literature
pack envelope.
Ideal HP290 Serial Number
XXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXXX
Inside view of
control box door
Side View of
control box
Ser No.
Side View of
Heat Pump

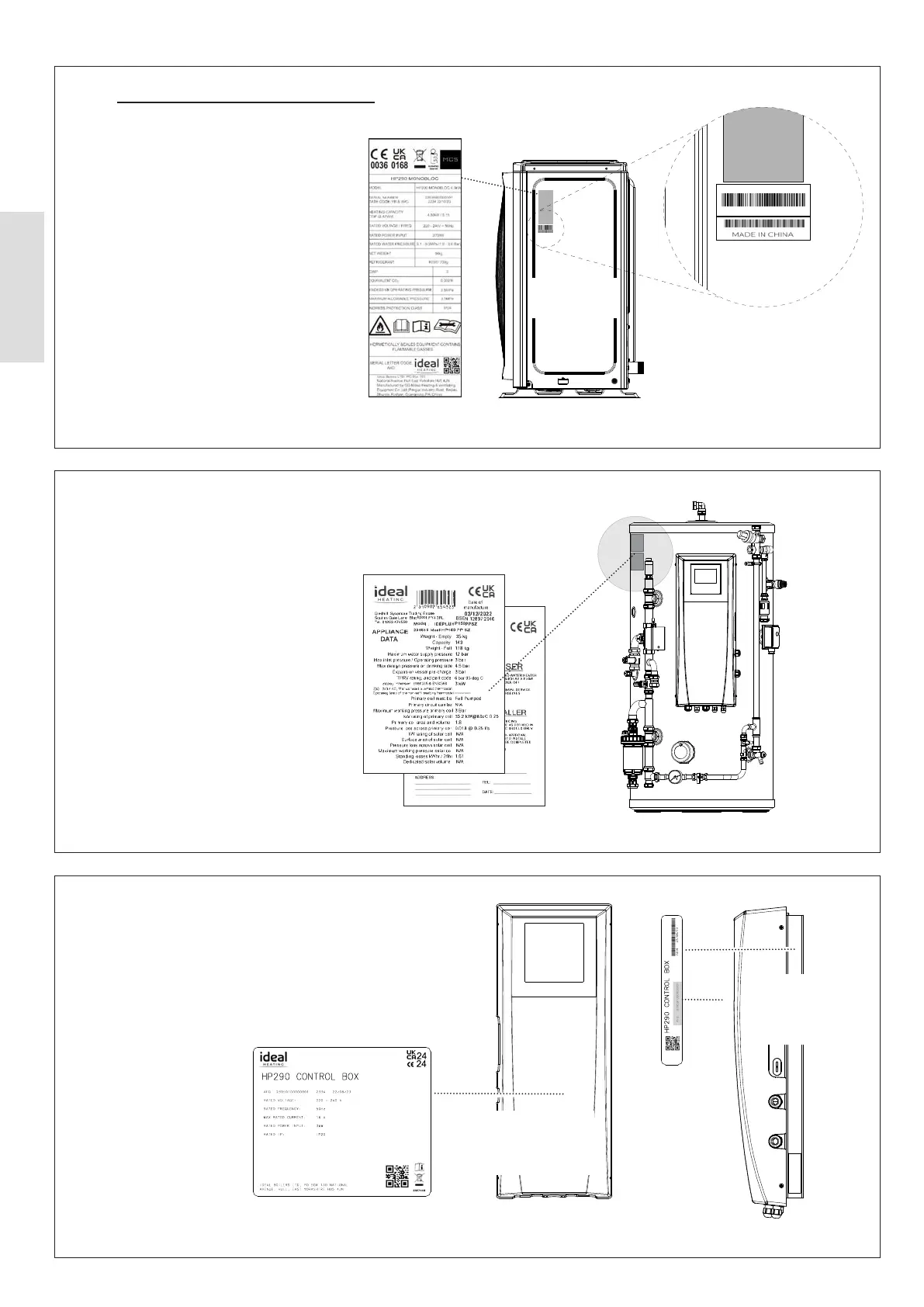

Figure 23. Heat Pump - Location of Data Plate and Serial Number
Figure 24. DHW Cylinder - Location of Data Plates
Figure 25. Control Box - Location of Data Plates
