IDEAL HP290 - Figure 33. Heat Pump Base Panel (4.5 - 6 Kw); Figure 34. Heat Pump Base Panel (8 - 14 Kw); Figure 35. Condensate Spigot Installation

Section 4 - Installation
INSTALLATION
33
Installation and Maintenance

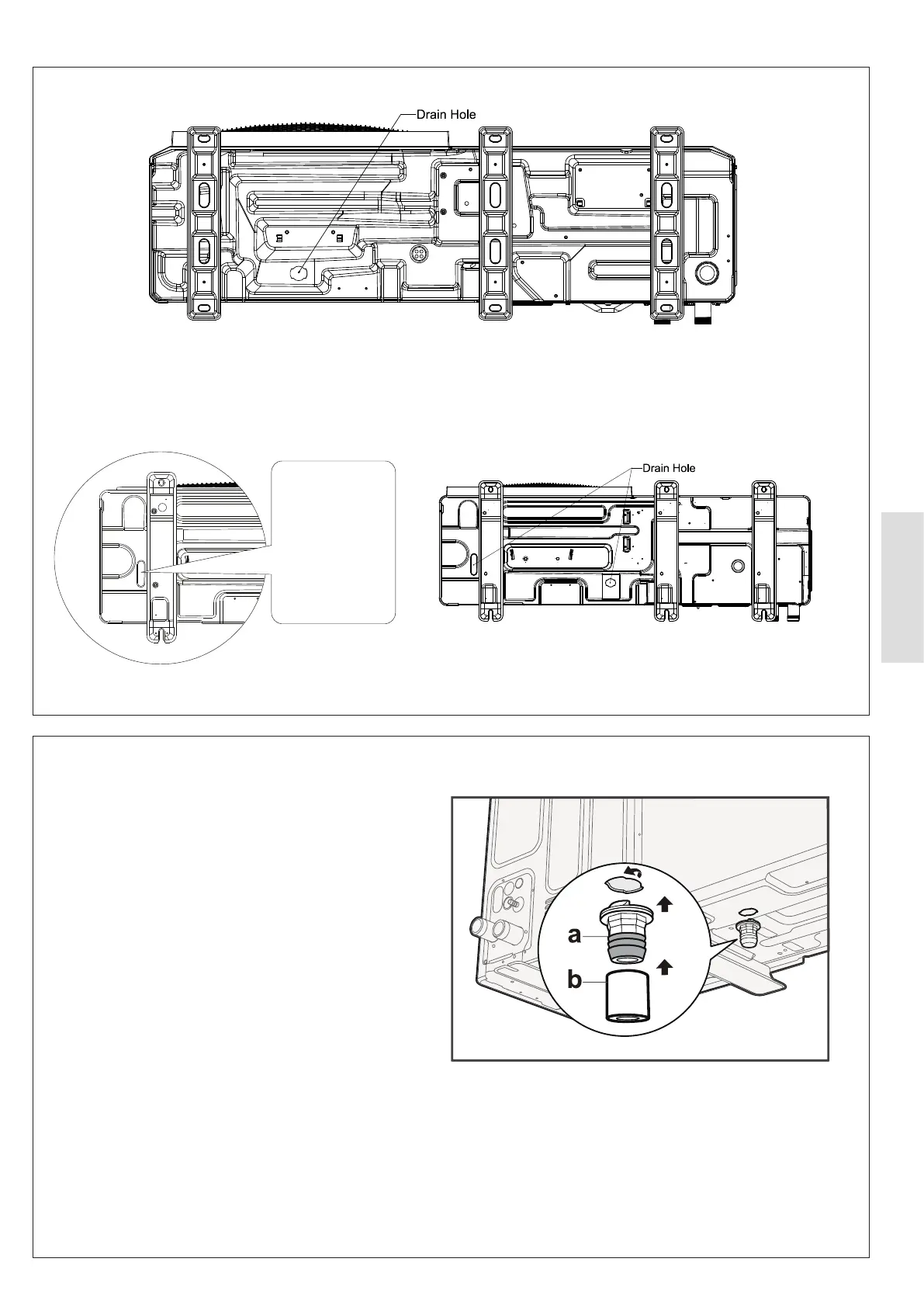

Figure 33. Heat Pump Base Panel (4.5 - 6 kW)
This drain hole is
covered by a rubber
plug. If the small
drain hole cannot
meet the drainage
requirements, the
large drain hole can
be used instead.
4.1.5.1 Installation of the Condensate Spigot
Install the condensate spigot as follows:
1. Take the condensate spigot from the installer pack and
apply a silicone-based grease to the seal.
2. Insert the spigot into base panel opening and using a
wrench turn the condensate spigot by 90° making sure
of full contact of the retaining face with the base of the
panel.
3. 
hose. The outer diameter of the condensate spigot is
32mm and should be connected to an appropriately

condensate spigot from the base panel when connecting
the drain hose.
90°
a. - Condensate Spigot (Pagoda connection, provided in installer pack).
b. - Drain Hose (Not provided).
Figure 34. Heat Pump Base Panel (8 - 14 kW)
Figure 35. Condensate Spigot installation
