16. Hardware Identification

The new X series PCB has a larger memory chip on board to accommodate the new features and to distinguish

between the old and new “512K” will be screened onto the PCB and will have a silver warranty sticker on the

processor.

Note: The X16 will have X16 printed on the silver warranty label.

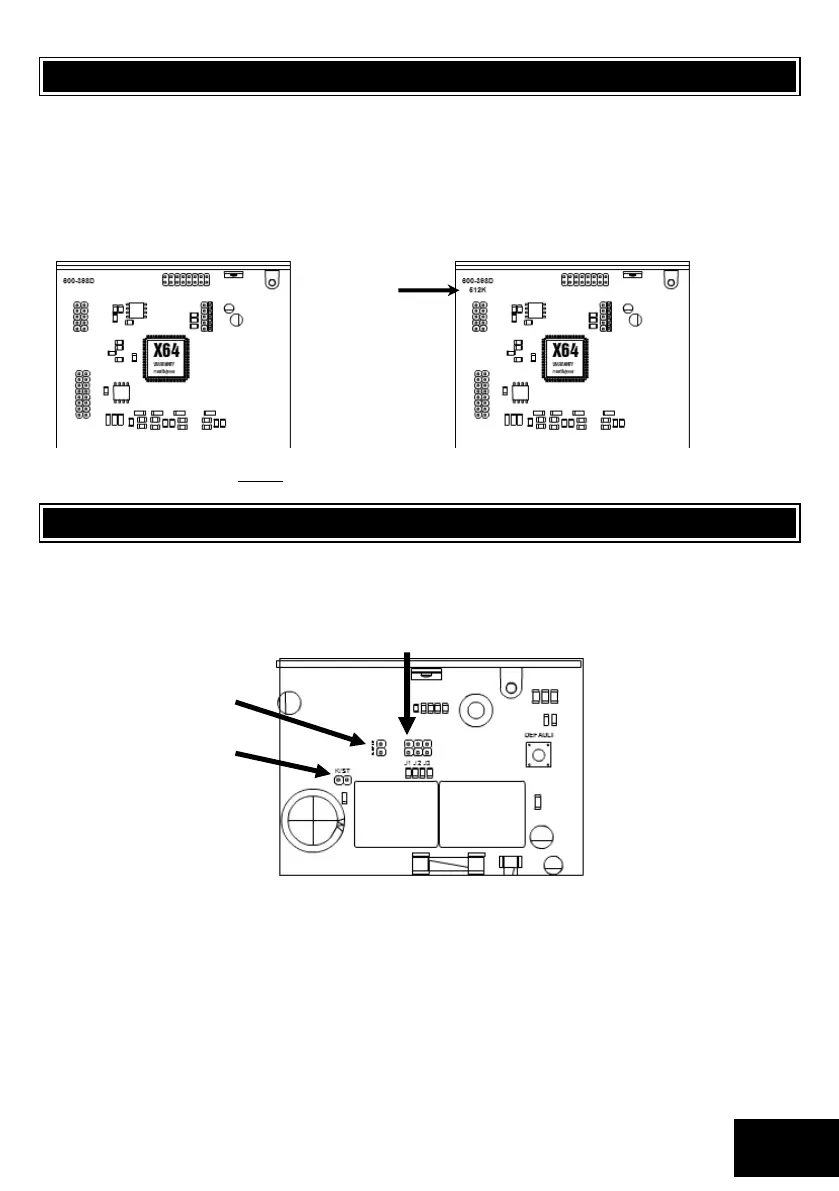

Figure 6: Distinguishing 512k boards from previous versions

Silver warranty sticker only Silver warranty sticker and 512K printed

Note: Firmware version 2.1 cannot be loaded onto older X Series panels!

17. Serial Communication Jumper Settings

To select which serial communication option:

J1 open = direct download

J1 closed = serial reporting enabled

Figure 7: Serial communication jumper location

Note: If J1 is shorted after the system is powered on, please repower the system with J1 shorted to enable

serial communication

Kick

Start

Box

Tamper
