IDS X Series Installer Manual

IDS X-Series Installer Manual 700-398-02H Issued July 2013
38

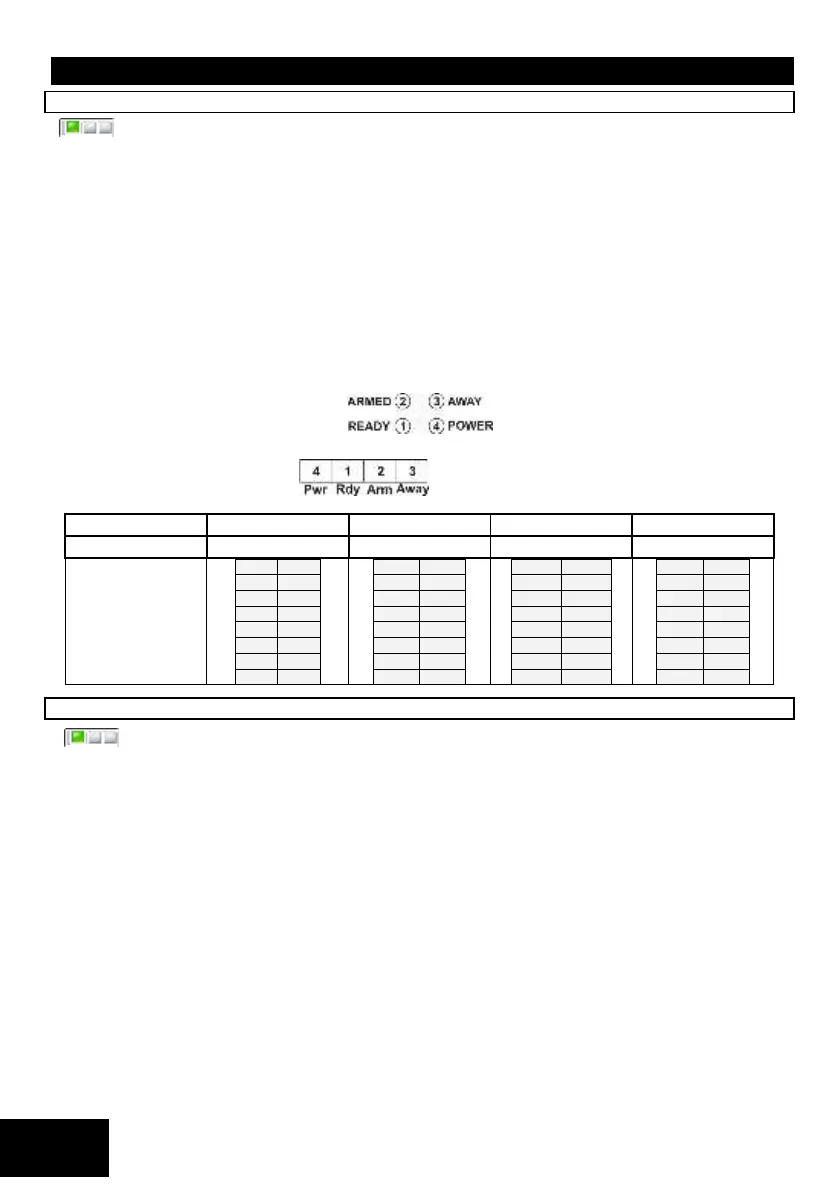

Partition Options
LOCATIONS 201 – 208 Partition Zone Allocation
Program these locations to allocate zones to each of the 8 partitions. Lit zone number LEDs
represent the zones allocated to the selected partition. The zones are displayed as 4 pages of 16 zones each as
per Table 25. To scroll to the next page of 16 zones, press the [*] key.
Zones are common, which means that one zone can be allocated to more than one partition.
The keypad start zone in location 241 needs to be programmed for keypads displaying zone numbers higher
than 16.
Each location represents a partition number:
 Location 201 is partition 1
 Location 202 is partition 2
 Location 203 is partition 3
 Location 204 is partition 4
 Location 205 is partition 5
 Location 206 is partition 6
 Location 207 is partition 7
 Location 208 is partition 8

Figure 3 and Figure 4 show the order in which the LEDs display to show you which zones you are viewing as per
Table 25.
Figure 3: Paging Indication on the Classic Keypad
Figure 4: Paging Indication on the Curved Keypad
Table 25: Zones per Partition Page
Page
1
2
3
4
LED
READY
ARM
AWAY
POWER
Zones
1
9
2
10
3
11
4
12
5
13
6
14
7
15
8
16
17
25
18
26
19
27
20
28
21
29
22
30
23
31
24
32
33
41
34
42
35
43
36
44
37
45
38
46
39
47
40
48
49
57
50
58
51
59
52
60
53
61
54
62
55
63
56
64
LOCATIONS 211 – 218 Partition Arm Options (Partitions 1 – 8)
These locations are used to configure arm options for each partition. Refer to Table 26 for the
values that can be selected.
Each location represents a partition:
 Location 211 is partition 1
 Location 212 is partition 2
 Location 213 is partition 3
 Location 214 is partition 4
 Location 215 is partition 5
 Location 216 is partition 6
 Location 217 is partition 7
 Location 218 is partition 8

Quick Arm:
This option allows the user to arm the panel by holding down the [1] key for three seconds. The keypad will
beep once to indicate that the arm sequence has begun.
Force Arm:
With this option enabled, the panel will arm with violated zones e.g. an open window. This forces any violated
zones to be temporarily bypassed when the panel arms. If such bypassed zones restore during the arm cycle
(the window is closed, for example), the zone is automatically re-activated (un-bypassed) and a subsequent
violation will trigger an alarm.
Siren Toot on Away Arm / Disarm:
This option allows the user an audible confirmation that arming or disarming of the panel has occurred. The
siren is programmed to give a short beep after successful arming, and two short beeps after disarming. This is
useful when used in conjunction with remote or key-switch arming/disarming.

IDS X Series Specifications

General

Key Type	Tactile
Backlight	Yes
Operating Voltage	12VDC
Weight	150g
Operating Temperature	-10°C to +55°C
