PPC-5190 Flat Panel PC
Page 106
5.3.6 ACPI Configuration
The ACPI Configuration menu (
BIOS M
enu 9
) configures the Advance
d Configuration and
Power Interface (ACPI) and Powe
r Management (APM) options.

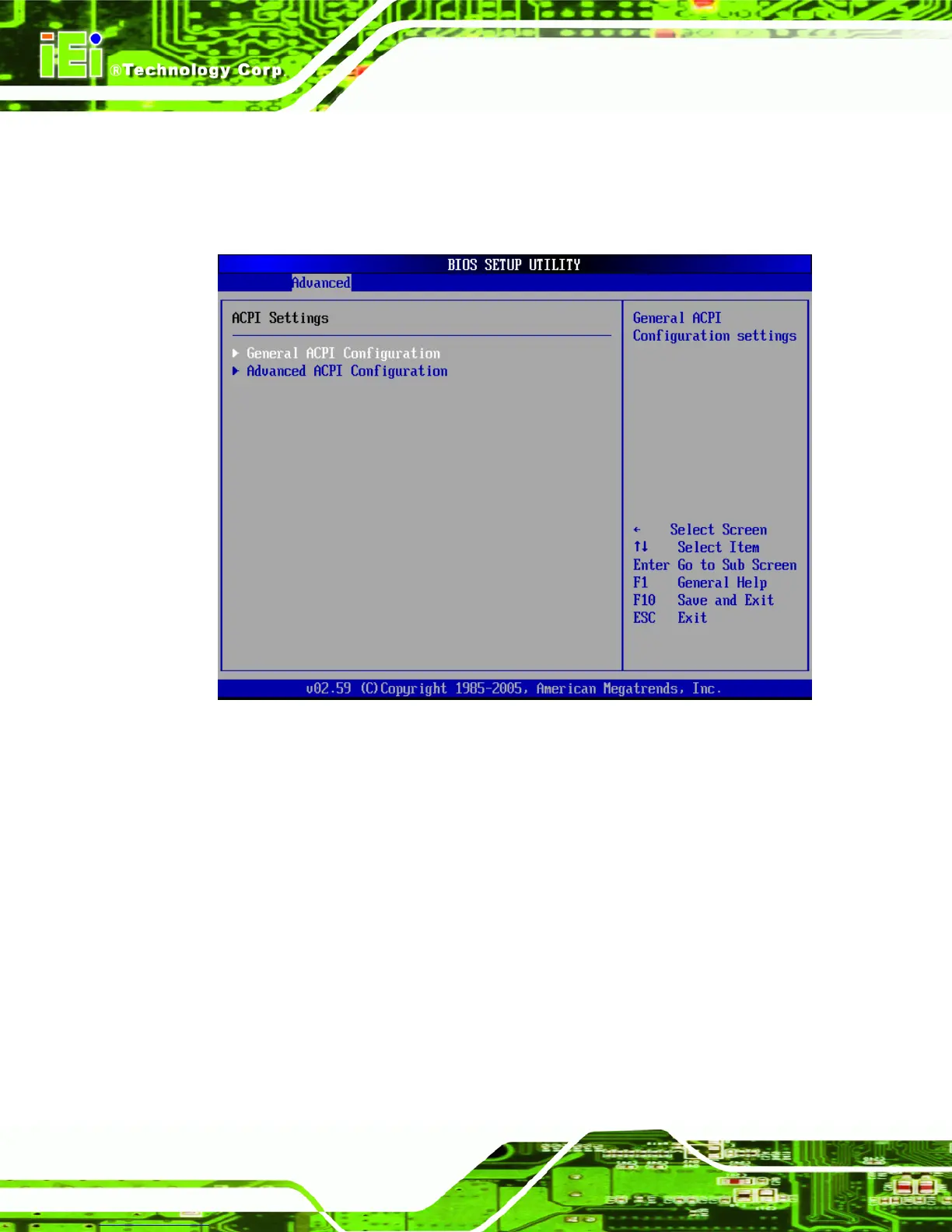

BIOS Menu 9: ACPI Configuration
105
107
Table of Contents
Table of Contents
8
Default Chapter
3
Safety Precautions
3
1 Introduction
19
Ppc-5190 Flat Panel Pc Overview
20
PPC-5190 Flat Panel PC Applications
20
PPC-5190 Model Variation
20
Table 1-1: PPC-5190 Model Variation
20
PPC-5190 Flat Panel PC Features
21
Ppc-5190 External Overview
21
Front Panel
21
General Description
21
Figure 1-1: PPC-5190 Front View
22
Rear Panel
22
Figure 1-2: PPC-5190 Rear View
23
Figure 1-3: PPC-5190 Top View
23
PPC-5190 Bottom Panel
23
Top Panel
23
Figure 1-4: Bottom View
24
Left Panel
24
Right Panel
25
Ppc-5190 Internal Overview
25
Figure 1-5: Left View
25
Figure 1-6: Right View
25
Ppc-5190 Specifications
26
Figure 1-7: Internal Components
26
Preinstalled Hardware Components
26
System Specifications
26
PPC-5190 Motherboard Specifications
28
Table 1-2: PPC-5190 Specifications
28
Flat Panel Screen
29
Table 1-3: Motherboard Specifications
29
Power Supply
30
Table 1-4: 19" TFT LCD Monitor Specifications
30
ACE-4518AP Power Supply
31
ACE-4520C Power Supply
32
Table 1-5: ACE-4518AP Power Supply Specifications
32
Table 1-6: ACE-4520C Power Supply Specifications
32
Dimensions
33
Figure 1-8: Dimensions (Units in MM)
33
2 Pos-8520 Motherboard
35
Introduction
36
Cpu Support
36
On-Board Chipsets
36
852GME Northbridge Chipset
36
Northbridge and Southbridge Chipsets
36
ICH5 Southbridge Chipset
37
Graphics Support
38
Peripheral Device Interfaces, Connectors, and Slots
40
Internal Peripheral Device Connectors
40
Internal Slots
40
OEM Options
40
External Peripheral Device Connectors
42
3 Installation and Configuration
43
Installation Precautions
44
Preinstalled Components
44
Installation and Configuration Steps
45
Unpacking
45
Packing List
46
Jumper Settings
46
Table 3-1: Onboard Jumpers
47
Figure 3-1: Back Cover Retention Screws
48
Remove the
48
CF Card Setup (JP12)
49
Clear CMOS Setup (JP1)
49
Table 3-2: CF Card Setup Jumper Settings
49
Table 3-3: Clear CMOS Jumper Settings
49
COM Port RI and Voltage Selection
50
COM2 Port RS232/422/485 Selection (JP10, JP20)
50
Table 3-4: COM2 Port Jumper Settings
50
Table 3-5: COM1 RI and Voltage Selection Jumper
50
Table 3-6: COM1 RI Voltage Selection Jumper
50
Table 3-10: COM3 RI Voltage Selection Jumper
51
Table 3-11: COM4 RI and Voltage Selection Jumper
51
Table 3-7: COM2 RI and Voltage Selection Jumper
51
Table 3-8: COM2 RI Voltage Selection Jumper
51
Table 3-9: COM3 RI and Voltage Selection Jumper
51
Keyboard and Mouse Power Source Setting (JP18)
52
LCD Voltage Setup (JP2)
52
Table 3-12: COM4 RI Voltage Selection Jumper
52
Table 3-13: Keyboard and Mouse Power Source Setting
52
Table 3-14: LCD Voltage Setup Jumper Settings
52
Hdd, Fdd and CD Drive Installation
53
Figure 3-2: HDD Retention Screws
53
HDD Installation
53
FDD Installation
54
Figure 3-3: FDD Retention Screws
54
CD Drive Installation
55
Figure 3-4: FDD Adapter and FDD Bracket Installation
55
Figure 3-5: CD Drive Adapter Installation
56
Figure 3-6: CD Drive Retention Screws
56
Figure 3-7: Remove CD Drive
57
Figure 3-8: CD Drive Blank Plate Assembly
57
Figure 3-9: CD Drive Blank Plate Assembly
58
Mounting the System
59
Figure 3-10: CD Drive Installed
59
Wall Mounting
59
Figure 3-11: Wall-Mounting Bracket
60
Figure 3-12: Mount the Chassis
61
Figure 3-13: Secure the Chassis
62
Panel/ Mounting
62
Figure 3-14: Cut the Panel
63
Figure 3-15: Panel Mounting Clamp Positions
63
Figure 3-16: Tighten the Panel Mounting Clamp Screws
64
Rack and Cabinet Installation
64
Arm Mounting
65
Figure 3-17: Rack Mounting
65
External Peripheral Interface Connectors
66
Ethernet Connection
66
Figure 3-18: Arm Mount Retention Screw Holes
66
LCD Panel Connection
66
Audio Port Connection
67
Keyboard and Mouse Connection
67
Parallel Port Connection
67
Serial Port Connection
67
USB Connection
67
4 System Maintenance
69
System Maintenance Introduction
70
Motherboard Replacement
70
Back Cover Removal and Elevated Platform Detachment
70
Back Cover Removal
71
Detaching the Elevated Platform
72
Figure 4-1: Rear Cover Retention Screws (Real Panel)
72
Figure 4-2: CD Drive Retention Screws
73
Figure 4-3: Internal Elevated Platform Retention Screws
73
Figure 4-4: Elevated Platform Retention Screws (Top Panel)
73
DIMM Replacement
74
Figure 4-5: Elevated Platform Retention Screws (Right Panel)
74
Figure 4-6: Elevated Platform Retention Screws (Bottom Panel)
74
Figure 4-7: Elevated Platform Retention Screws (PCI Riser Card)
74
Psu Module Replacement
75
Figure 4-8: DIMM Socket Clip Locations
75
Remove the Old PSU
75
Figure 4-10: PSU Bottom Panel Retention Screws
76
Figure 4-9: PSU Motherboard Connectors
76
Figure 4-11: PSU Bracket to Chassis Retention Screws
77
Figure 4-12: PSU Bracket Retention Screws
77
Install the New PSU
77
System Cooling Fan Replacement
78
Figure 4-13: System Cooling Fans Motherboard Connector
78
Remove the Old System Cooling Fans
78
Figure 4-14: System Cooling Fans Left Panel Retention Screws
79
Install the New System Cooling Fans
79
5 Ami Bios
81
Introduction
82
Starting Setup
82
Using Setup
82
BIOS Menu Bar
83
Getting Help
83
Table 5-1: BIOS Navigation Keys
83
Unable to Reboot after Configuration Changes
83
Main
84
BIOS Menu 1: Main
84
System Overview
84
Advanced
85
System Date [XX/XX/XX]
85
System Time [XX:XX:XX]
85
BIOS Menu 2: Advanced
86
CPU Configuration
87
BIOS Menu 3: CPU Configuration
87
Hyper Threading Technology [Disabled]
88
Max CUPID Value Limit [Disabled]
88
IDE Configuration
89
BIOS Menu 4: IDE Configuration
89
IDE Configuration [P-ATA Only]
89
P-ATA Channel Selection [Both]
90
Rd ./P1-4 Th .]
90
S-ATA Ports Definition
90
S-ATA Running Enhanced Mode [Yes]
90
Configure S-ATA as RAID [No]
91
Hard Disk Write Protect [Disabled]
91
IDE Detect Time out (Sec) [35]
91
ATA (PI) 80Pin Cable Detection [Host & Device]
92
IDE Master and IDE Slave
92
IDE Master, IDE Slave
93
BIOS Menu 5: IDE Master and IDE Slave Configuration
93
Auto-Detected Drive Parameters
93
Lba/Large Mode [Auto]
94
Type [Auto]
94
Zip
94
Block (Multi Sector Transfer) [Auto]
95
PIO Mode [Auto]
95
32Bit Data Transfer [Disabled]
96
Auto]
96
Floppy Configuration
97
BIOS Menu 6: Floppy Configuration
97
Floppy a [1.44 MB 3½"]
97
Super IO Configuration
98
BIOS Menu 7: Super IO Configuration
98
On Board Floppy Controller [Enabled]
98
Serial Port1 Address [3F8/IRQ4]
98
Parallel Port Address [378]
99
Serial Port2 Address [2F8/IRQ3]
99
Serial Port2 Mode [Normal]
99
Parallel Port Mode [Normal]
100
Digital I/O Address [280H]
101
Parallel Port IRQ [IRQ7]
101
Serial Port3 Address [3E8]
101
Serial Port3 IRQ [11]
102
Serial Port4 Address [2E8]
102
Serial Port4 IRQ [10]
102
Serial Port5 Address [2F0]
103
Serial Port5 IRQ [11]
103
Serial Port6 Address [2E0]
103
Hardware Health Configuration
104
BIOS Menu 8: Hardware Health Configuration
104
Serial Port6 IRQ [10]
104
H/W Health Function [Enabled]
105
ACPI Configuration
106
BIOS Menu 9: ACPI Configuration
106
General ACPI Configuration
107
BIOS Menu 10: General ACPI Configuration
107
Suspend Mode [S1 (POS)]
107
Advanced ACPI Configuration
108
BIOS Menu 11: Advanced ACPI Configuration
108
ACPI 2.0 Features [No]
109
ACPI APIC Support [Enabled]
109
AMI OEMB Table [Enabled]
110
APIC ACPI SCI IRQ [Disabled]
110
Headless Mode [Disabled]
110
MPS Configuration
111
BIOS Menu 12: MPS Configuration
111
MPS Revision [1.4]
111
Flow Control
112
Redirection after BIOS POST
112
Remote Access Configuration
112
Remote Access [Disabled]
112
Serial Port Mode
112
Serial Port Number
112
Terminal Type
112
VT-UTF8 Combo Key Support
112
USB Configuration
113
BIOS Menu 13: USB Configuration
113
USB Devices Enabled
113
Legacy USB Support [Disabled]
114
USB 2.0 Controller [Enabled]
114
USB Function [8 USB Ports]
114
Pci/Pnp
115
BIOS Menu 14: Pci/Pnp Configuration
115
Plug & Play O/S [No]
115
Allocate IRQ to PCI VGA [Yes]
116
PCI Latency Timer [64]
116
Offboard PCI/ISA IDE Card [Auto]
117
Palette Snooping [Disabled]
117
PCI IDE Busmaster [Disabled]
117
IRQ# [Available]
118
DMA Channel# [Available]
119
Boot
120
BIOS Menu 15: Boot
120
Reserved Memory Size [Disabled]
120
Boot Settings Configuration
121
BIOS Menu 16: Boot Settings Configuration
121
Quick Boot [Enabled]
121
Quiet Boot [Disabled]
121
Addon ROM Display Mode [Force BIOS]
122
Bootup Num-Lock [On]
122
PS/2 Mouse Support [Auto]
122
Boot Device Priority
123
BIOS Menu 17: Boot Device Priority Setting
123
Removable Drives
124
BIOS Menu 18: Removable Drives
124
Security
125
BIOS Menu 19: Security
125
Change Supervisor Password
125
Change User Password
125
Chipset
126
BIOS Menu 20: Chipset
126
Northbridge Configuration
127
BIOS Menu 21: Northbridge Chipset Configuration
127
DRAM Frequency [Auto]
127
Configure DRAM Timing by SPD [Enabled]
128
Memory Hole [Disabled]
128
Graphics Aperture Size [64MB]
129
Init. Graphic Adapter Priority [Pci/Int-VGA]
129
Internal Graphics Mode Select [Enable, 8MB]
129
Boot Display Device [CRT+LFP]
130
Flat Panel Type [640X480]
130
Southbridge Configuration
131
BIOS Menu 22: Southbridge Chipset Configuration
131
Onboard AC97 Audio [Auto]
131
Power
132
BIOS Menu 23: Power
132
Power Management/Apm [Enabled]
132
Hard Disk Power down Mode [Suspend]
133
Standby Time out [Disabled]
133
Video Power down Mode [Suspend]
133
Power Button Mode [On/Off]
134
Suspend Time out [Disabled]
134
Restore on AC Power Loss [Last State]
135
Resume on PME# [Disabled]
135
Resume on Ring/Lan [Disabled]
135
Resume on RTC Alarm [Disabled]
136
RTC Alarm Date (Days)
136
System Time
136
Exit
137
BIOS Menu 24:Exit
137
Discard Changes
138
Discard Changes and Exit
138
Load Optimal Defaults
138
Save Changes and Exit
138
Aiei Panel Pc Product Line
139
Iei Panel Pc Products
140
IEI Panel PC Product Series
140
Overview
140
Panel Pc Product Solutions
140
A.1 IEI P ANEL PC P RODUCTS A.1.1 Overview
140
Series Panel PC Solutions
140
Series Panel PC Solutions
141
Series Panel PC Solutions
143
Series Panel PC Solutions
145
Series Panel PC Solutions
146
Binterface Connectors
149
Floppy Disk Drive Connector
150
Pcie - IDE Disk Drive Connector
151
Parallel Port
152
Serial Ports
153
Keyboard / Mouse Connector
158
External Switches and Indicators
159
Usb Port Connector
160
I Rda Infrared Interface Port
161
Vga Connector
162
Lan Rj45 Connector
163
Fan Connector
163
Inverter (LCD Backlight) Connector
164
Lcd Panel Lvds Interface Connector
165
Audio Connectors
165
Digital Input / Output
166
Compact Flash Type II Storage Card Socket
167
Atx Power Connector
168
Atx 12V Power Connector
168
Internal Switches and Indicators
169
Serial Ata Connector
169
Bios Configuration Options
171
C.1 BIOS Configuration Options
172
Default Chapter
172
Bios C O
172
Dsoftware Drivers
177
Introduction
178
Driver Installation
178
Touch Panel Driver Configuration
185
Index
187
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the IEI Technology PPC-5190GS and is the answer not in the manual?
Ask a question
IEI Technology PPC-5190GS Specifications
General
Brand
IEI Technology
Model
PPC-5190GS
Category
Touchscreen
Language
English
Need help?
General
To Next Page
