PPC-5190 Flat Panel PC
Page 58

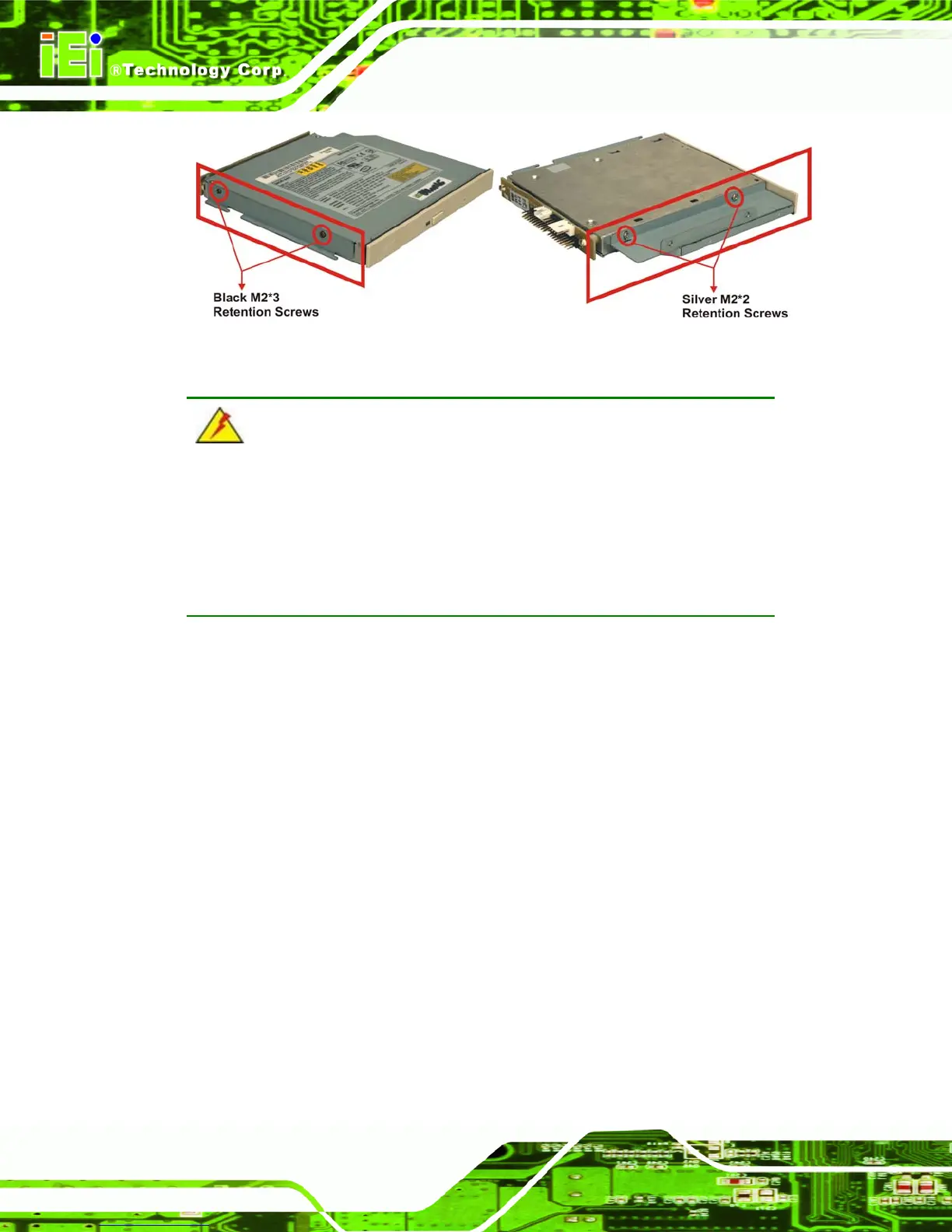

Figure 3-9: CD Drive Blank Plate Assembly
WARNING!
The two screws (black M2*3) shown in the left image of Figure 3-9 are
different from the two screws (silver M2*2) shown in the right. Please
secure the correct screws into the CD drive according to the images shown
in the Figure 3-9.
Step 8: Slide the CD drive into the PPC-5190 and align the two retention screw holes in
the side of the CD drive bracket with the retention screw holes on the bottom
panel.
Step 9: Reinsert the two previously removed retention screws.
Step 10: Connect the CD ribbon cable and the power cable from the connectors on the
motherboard and the PSU to the rear of the CD drive. Figure 3-10 shows a
properly installed CD drive.Step 0:
