PPC-5190 Flat Panel PC
Page 53
3.6 HDD, FDD and CD Drive Installation
3.6.1 HDD Installation
To install a HDD, please follow the steps below:
Step 1: Remove the back cover (Section 3.5.1).
Step 2: The HDD bracket is attached to the elevated platform by four retention screws.
Remove the four retention screws from the elevated platform (Figure 3-2).

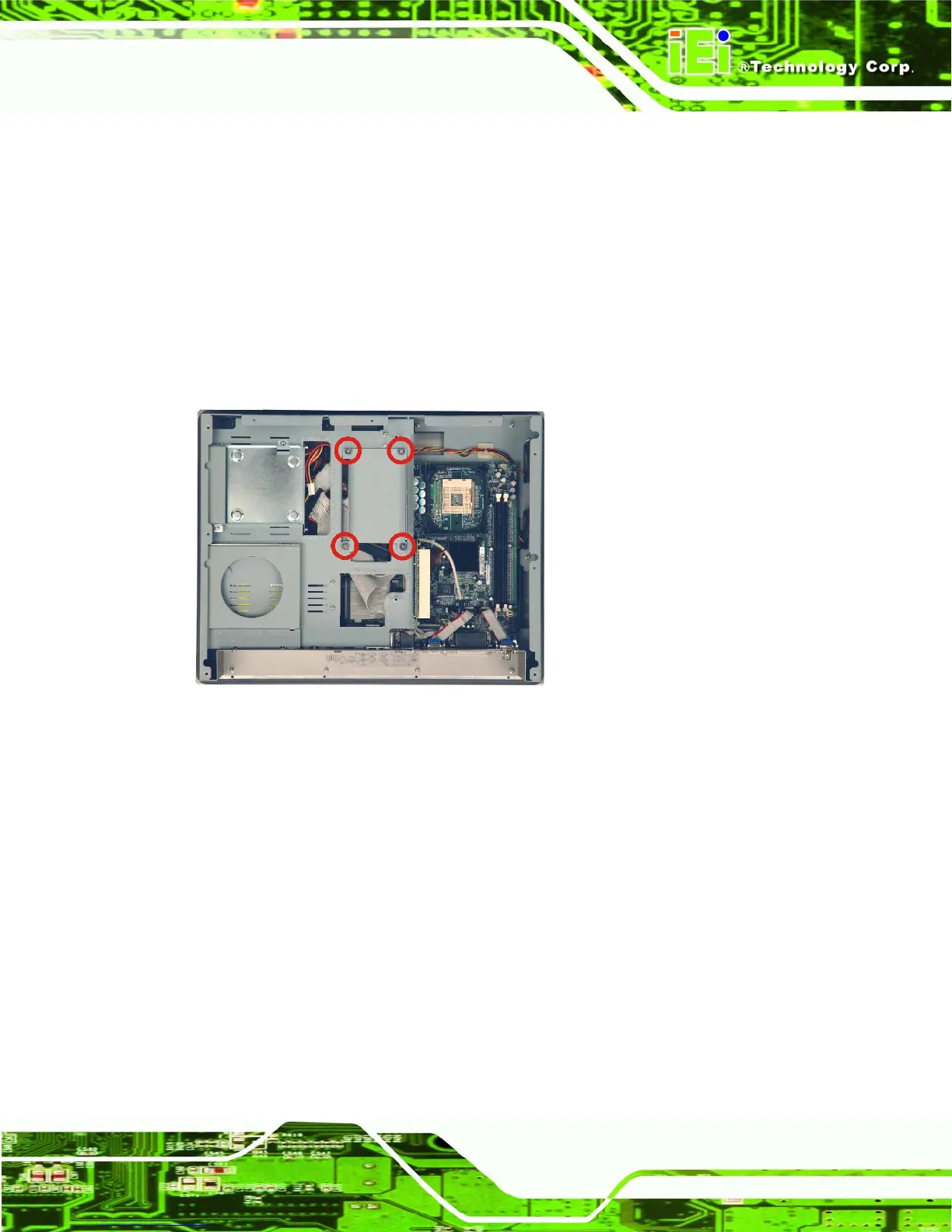

Figure 3-2: HDD Retention Screws
Step 3: Attach the HDD bracket to the HDD. To do this, align the four retention screw
holes in both side of HDD bracket with the retention screw holes on the side of
the HDD. Insert two retention screws into the bracket on both sides of the HDD.
Step 4: Install the HDD into the PPC-5190 by aligning the retention screw holes in the
base of the HDD bracket with the retention screw holes on the elevated platform.
Insert the four retention screws into the base of the HDD bracket.
Step 5: Connect the IDE/SATA cable from the IDE/SATA connector on the motherboard
to the rear of HDD.Step 0:
