PPC-5190 Flat Panel PC
Page 78
Step 4: Bundle the cables of the new PSU module and secure them with a plastic tie
similar to the old PSU module.
Step 5: Reconnect all previously disconnected power connectors to the motherboard
and disk drives.
Step 6: Reattach the elevated platform.
Step 7: Replace the back cover.Step 0:
4.6 System Cooling Fan Replacement
Please read the warnings at the beginning of Section 4.3 before attempting to access any
PPC-5190 internal components.
If the system cooling fans have been damaged, they must be replaced. To replace the
system cooling fans, please follow the steps below.
4.6.1 Remove the Old System Cooling Fans
Step 1: Remove the back cover (Section 4.3.1).
Step 2: Detach and remove the elevated platform (see Section 4.3.2).
Step 3: Disconnect the system cooling fans from the motherboard (Figure 4-13).

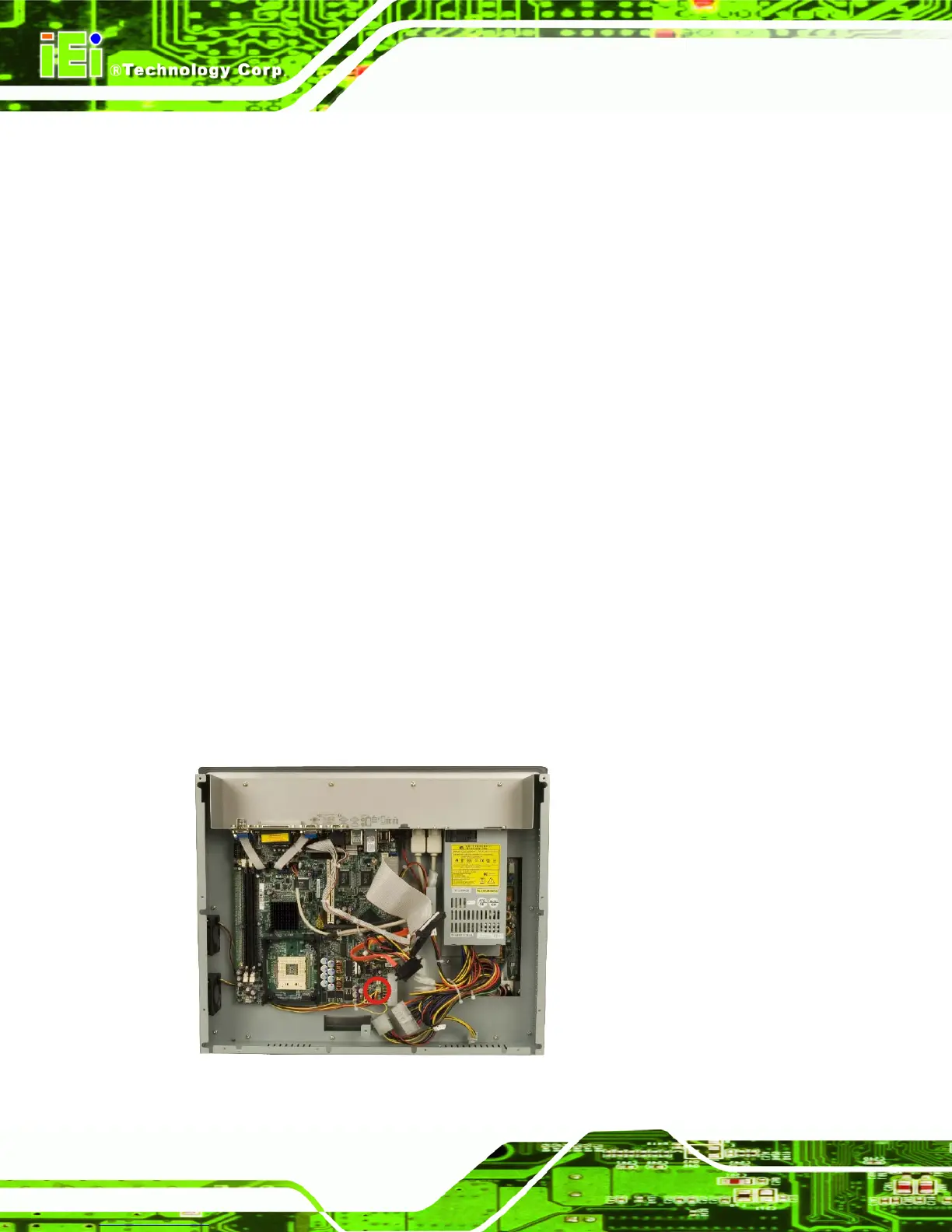

Figure 4-13: System Cooling Fans Motherboard Connector
To Next Page
