PPC-5190 Flat Panel PC
Page 79

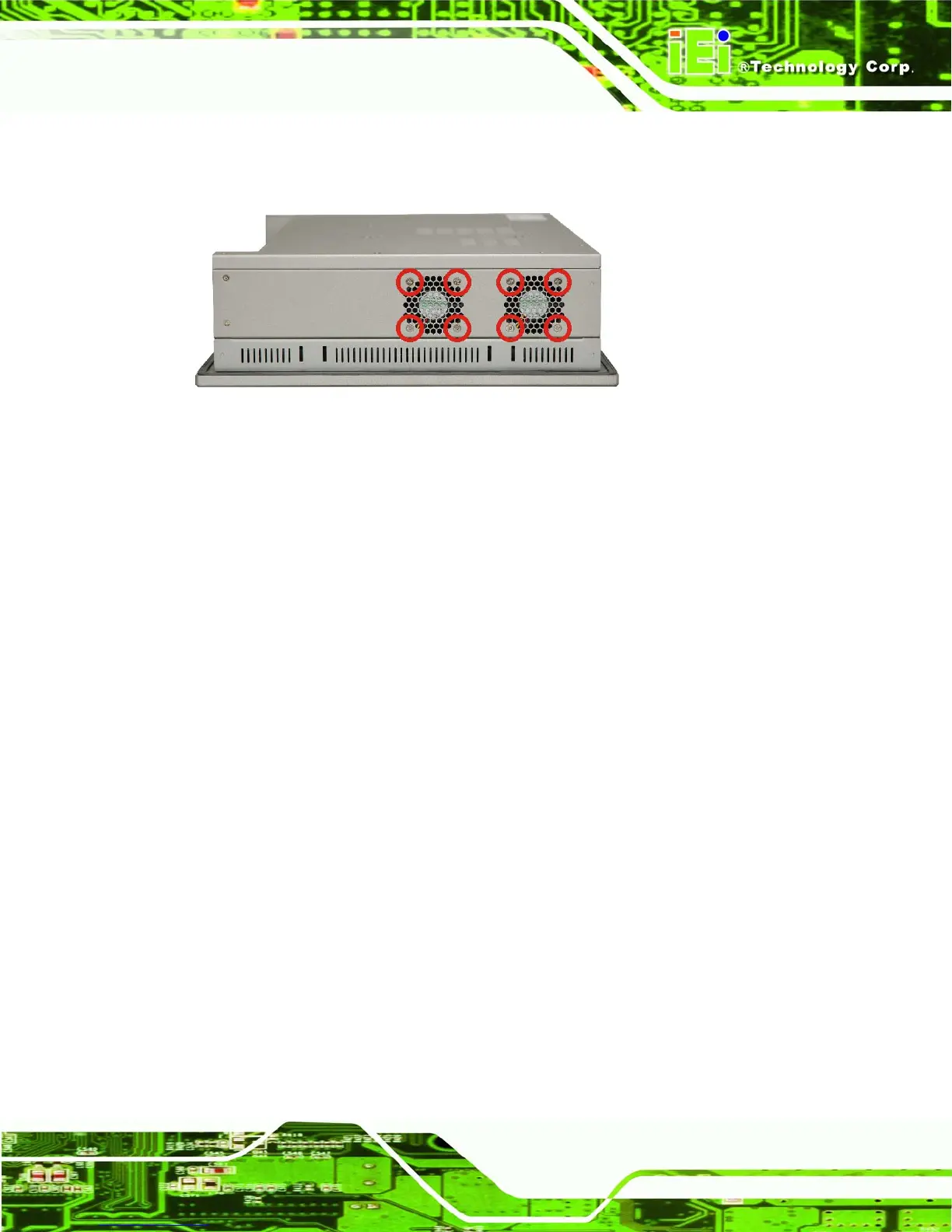

Step 4: Remove the system cooling fans retention screws from the left panel
(Figure 4-14).
Figure 4-14: System Cooling Fans Left Panel Retention Screws
Step 5: Remove the system cooling fans from the chassis. Step 0:
4.6.2 Install the New System Cooling Fans
To install the new system cooling fans, please follow the steps below.
Step 1: Insert the system cooling fans into the chassis and attach to the left panel with
the previously removed retention screws.
Step 2: Rebundle the new fan wires and tie them to the chassis like the old fan wires.
Step 3: Reconnect the new fan connector to the motherboard.
Step 4: Reattach the elevated platform.
Step 5: Replace the back cover.Step 0:
