PPC-5190 Flat Panel PC
Page 75
To install/replace the DIMM modules please follow the steps below.
Step 1: Remove the back cover (Section 4.3.1).
Step 2: Locate the DIMM socket on the motherboard near the right of the chassis. Push
down on the white levers of the socket until the DIMM module is dislodged from
the socket (Figure 4-8).

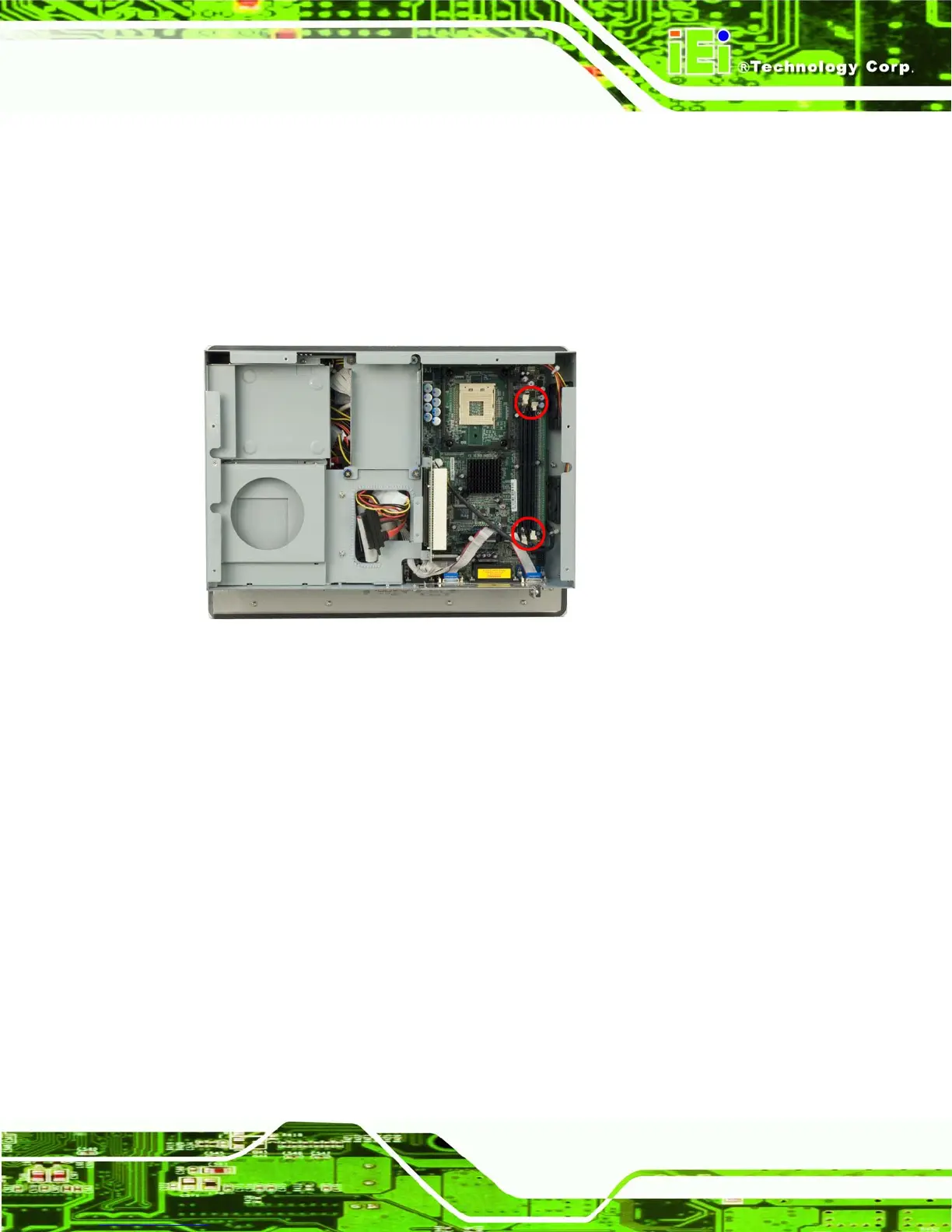

Figure 4-8: DIMM Socket Clip Locations
Step 3: Slowly slide the new DIMM module along the plastic guides at both ends of the
socket. Press the DIMM module down into the socket until it clicks into position
and the two handles have automatically locked the memory module into place.
Step 0:
4.5 PSU Module Replacement
Please read the warnings at the beginning of Section 4.3 before attempting to access any
PPC-5190 internal components.
If the PSU module has been damaged it must be replaced. To replace the PSU module,
please follow the steps below.
4.5.1 Remove the Old PSU
Step 1: Remove the back cover (Section 4.3.1).
