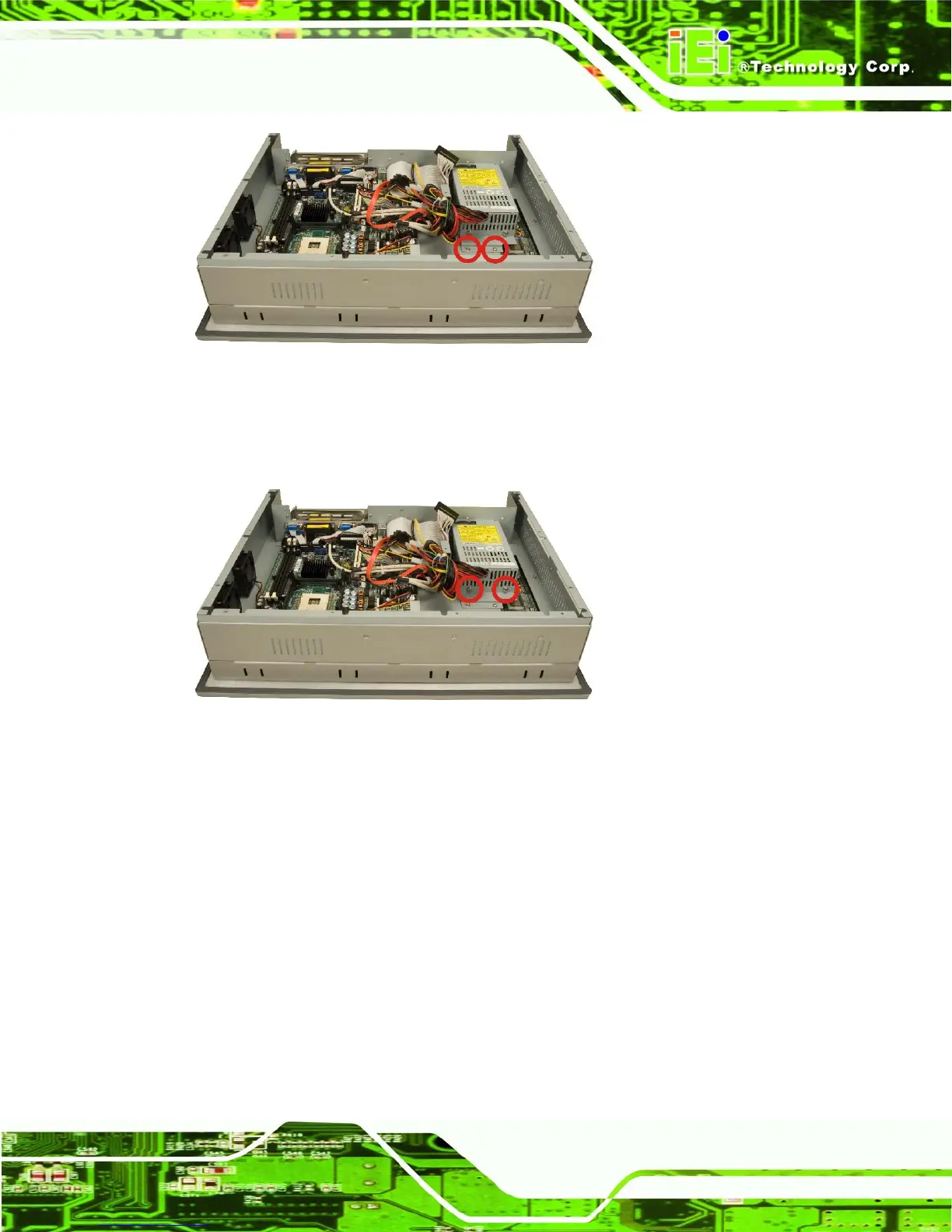

Figure 4-11: PSU Bracket to Chassis Retention Screws
Step 6: Remove the retention screws that connect the PSU to the PSU bracket
(Figure 4-12).Step 0:
Figure 4-12: PSU Bracket Retention Screws
4.5.2 Install the New PSU
To install a new PSU module, please follow the steps below.
Step 1: Attach the PSU bracket to the PSU module with the previously removed
retention screws.
Step 2: Insert the PSU module and bracket assembly into the chassis and attach the
PSU bracket to the chassis with the previously removed retention screws.
Step 3: Secure the PSU module to the chassis by reinserting the previously removed
retention screws through the bottom panel.
