RDX A8 User and Service Guide — Version 1.0
c. Rear panel
The rear panel of the RDX A8 provides access to the power connector, ethernet ports,
power supply and cooling fan.
i. Rear panel layout

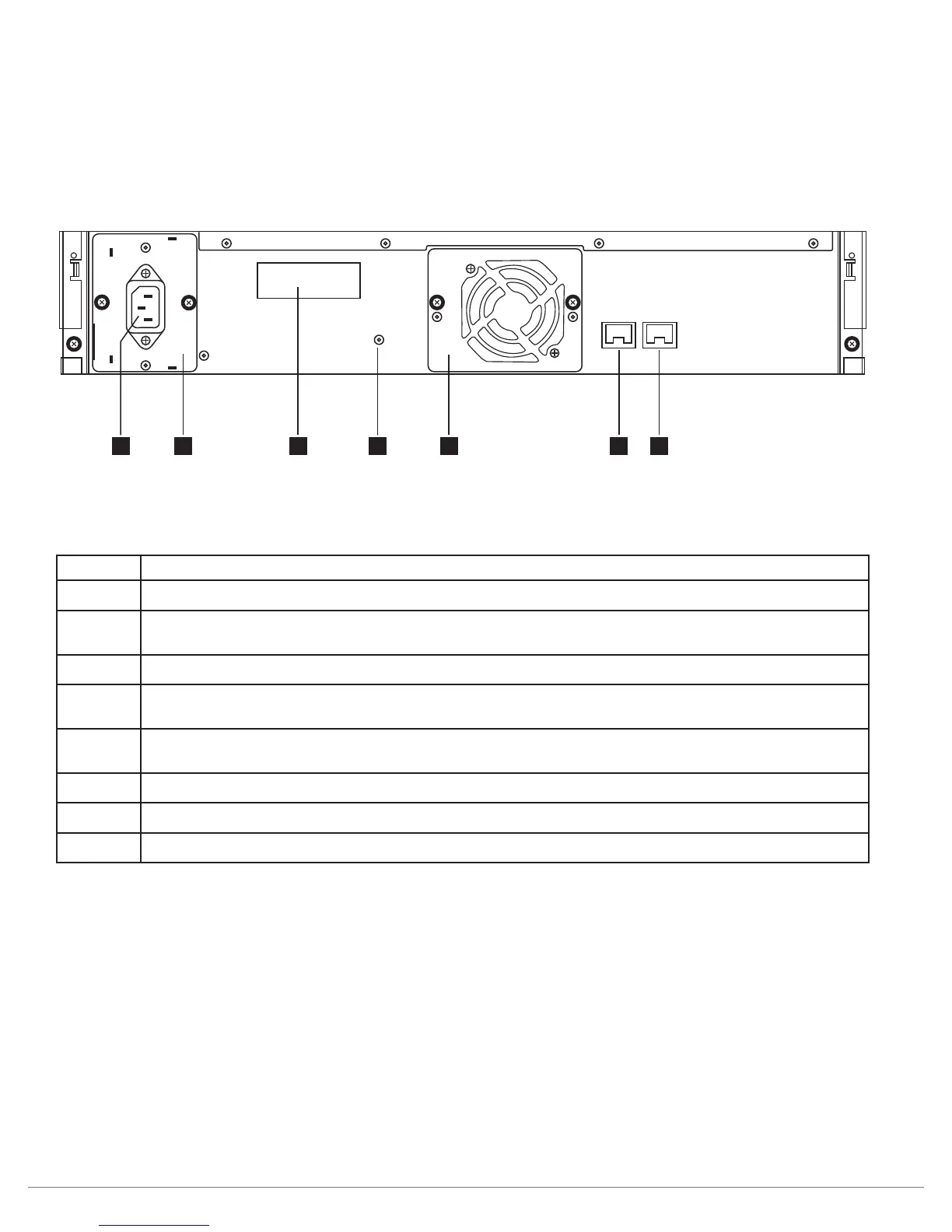

Figure 2—Rear panel
Number Description
1 IEC Power connector -- AC Power connection
2 Power supply CRU
For replacement see section CRU replacement, Power supply
3 Product identification label
4 Hard reset port - Reset system defaults
For more information see section Save/Restore configuration
5 Cooling Fan CRU
For replacement see section CRU replacement, Cooling fan
6 Gigabit Ethernet port 2 (for future use)
7 Gigabit Ethernet port 1
8 Removable back plate (for future options)
Table 2—Rear panel
1 2 3 4 5 6 7
