Immergas VICTRIX EXTRA 12 PLUS - Page 58

58
INSTALLERUSERMAINTENANCE TECHNICIANTECHNICAL DATA
Pump release.
If aer a long period of inactivity, the circulator is blocked, adjust the screw in the centre of the head in order to manually release the mo-
tor sha.
Take great care during this operation to avoid damage to the motor.
Bypass Regulation (Ref. 26 Fig. 47):
e appliance leaves the factory with the bypass open.
If necessary, the by-pass can be regulated to system requirements from minimum (by-pass closed) to maximum (by-pass open).
Adjust using a at head screwdriver, turn clockwise and open the by-pass, anticlockwise it is closed.
e bypass ensures minimum circulation of the water in the appliance and its correct operation if the systems are divided into
more than one zone.

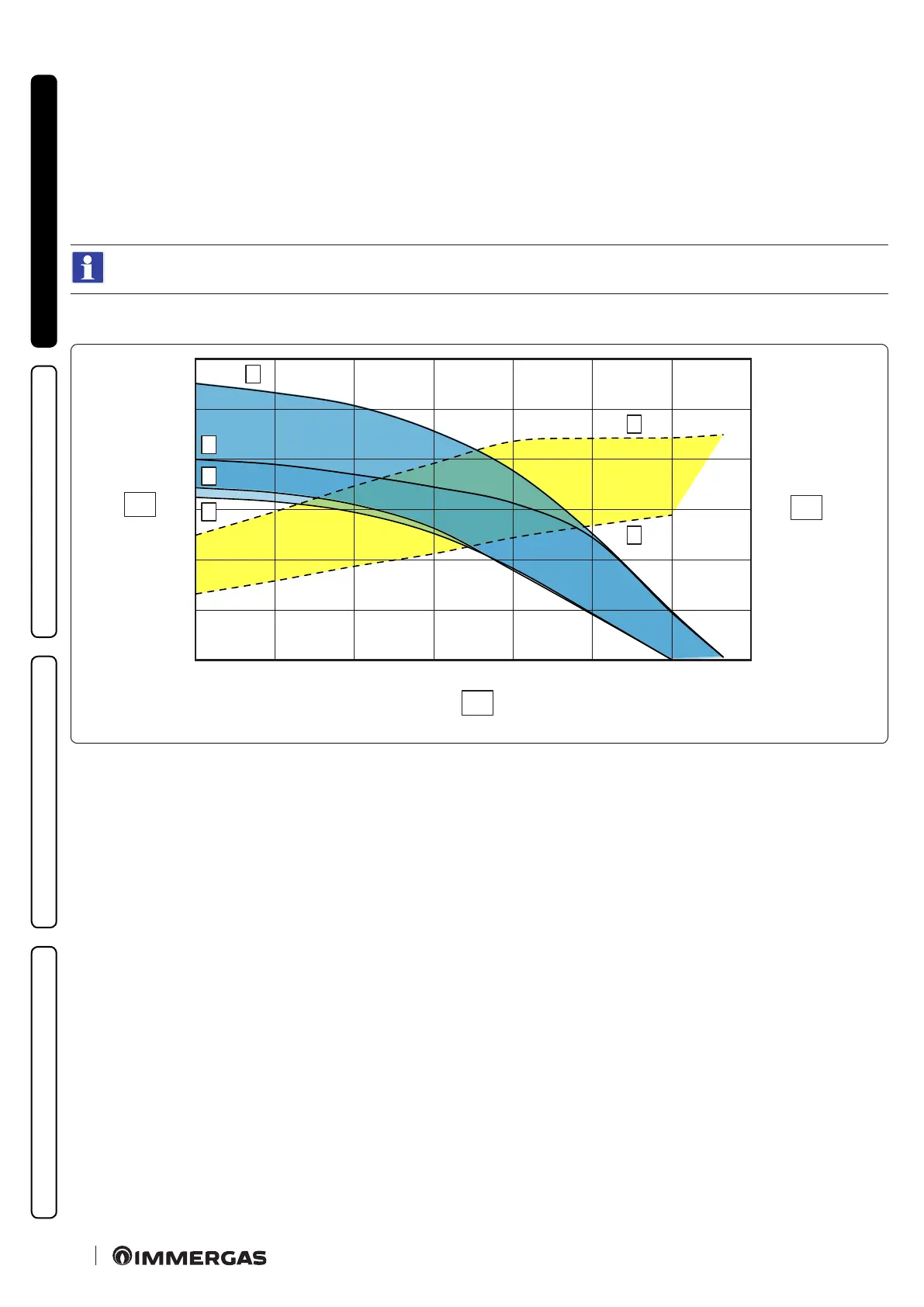

Head available to the Victrix Extra 12-24 Plus system
X1
Y1
Y2
1
2
3
4
5
0
6
10
20
30
40
50
60
0
10
20
30
40
50
60
0
200
400
600
800
1000
1200
1400
45
